Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 5 PNC and OE references.

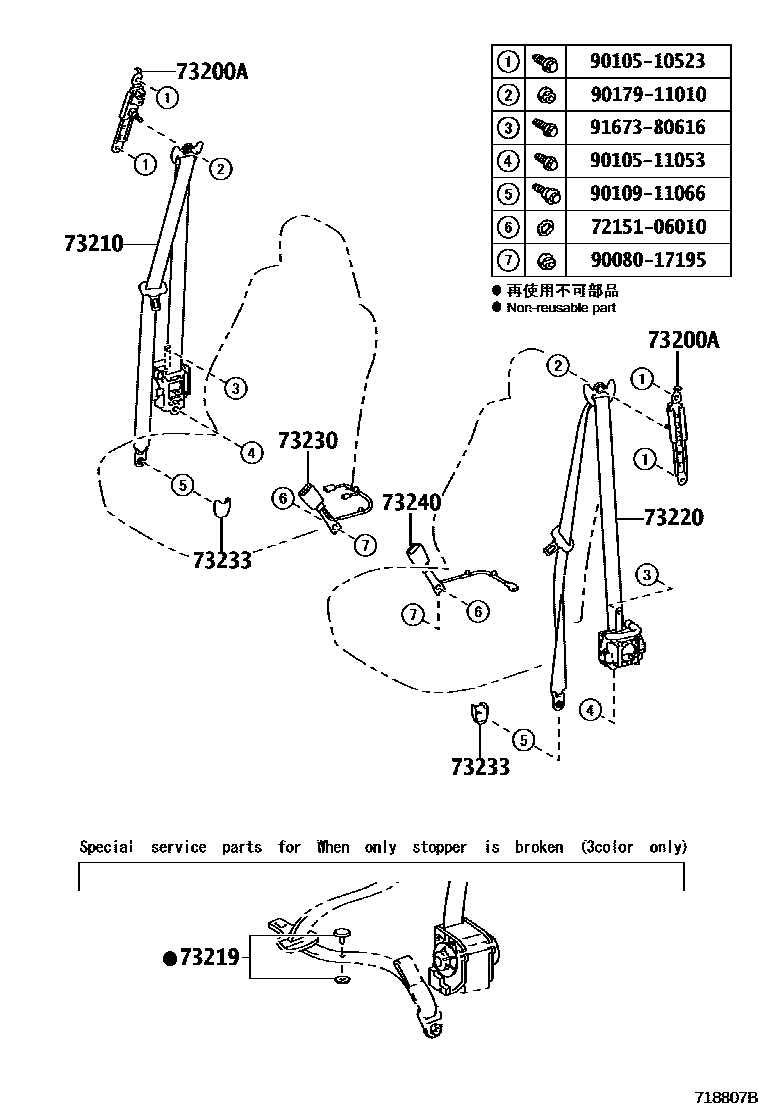

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 718807B
安全带和儿童保护座椅 — 718807B (201403 – 999999)

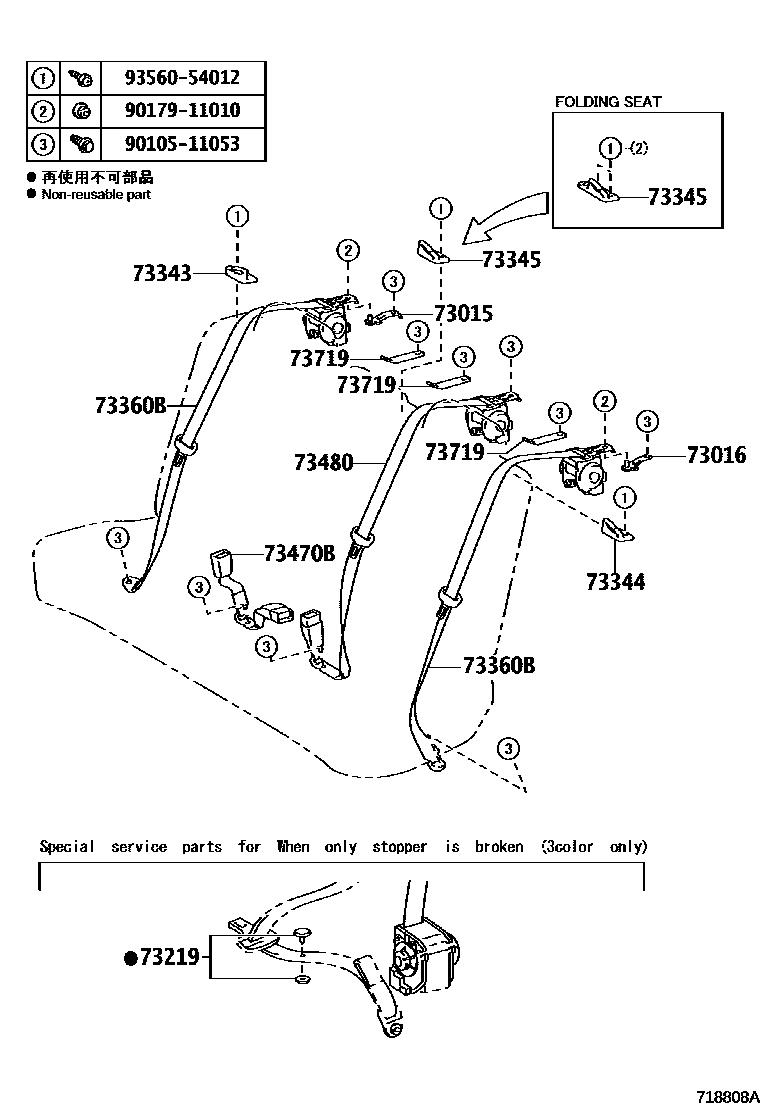

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 718808A
安全带和儿童保护座椅 — 718808A (201403 – 999999)

PNC and OE references

PNCPart nameOE numbers
73015Right seat belt outer anchor bracket sub-assembly73015-02090
73016Left side seat belt outer anchor bracket sub-assembly73016-02090
73200AFront shoulder seat belt anchor adjuster assembly73200-12070
73219Tongue plate stop73219-02010 · 73219-02020 · 73219-02030
73719Child restraint seat tether anchor bracket73719-02070
