Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

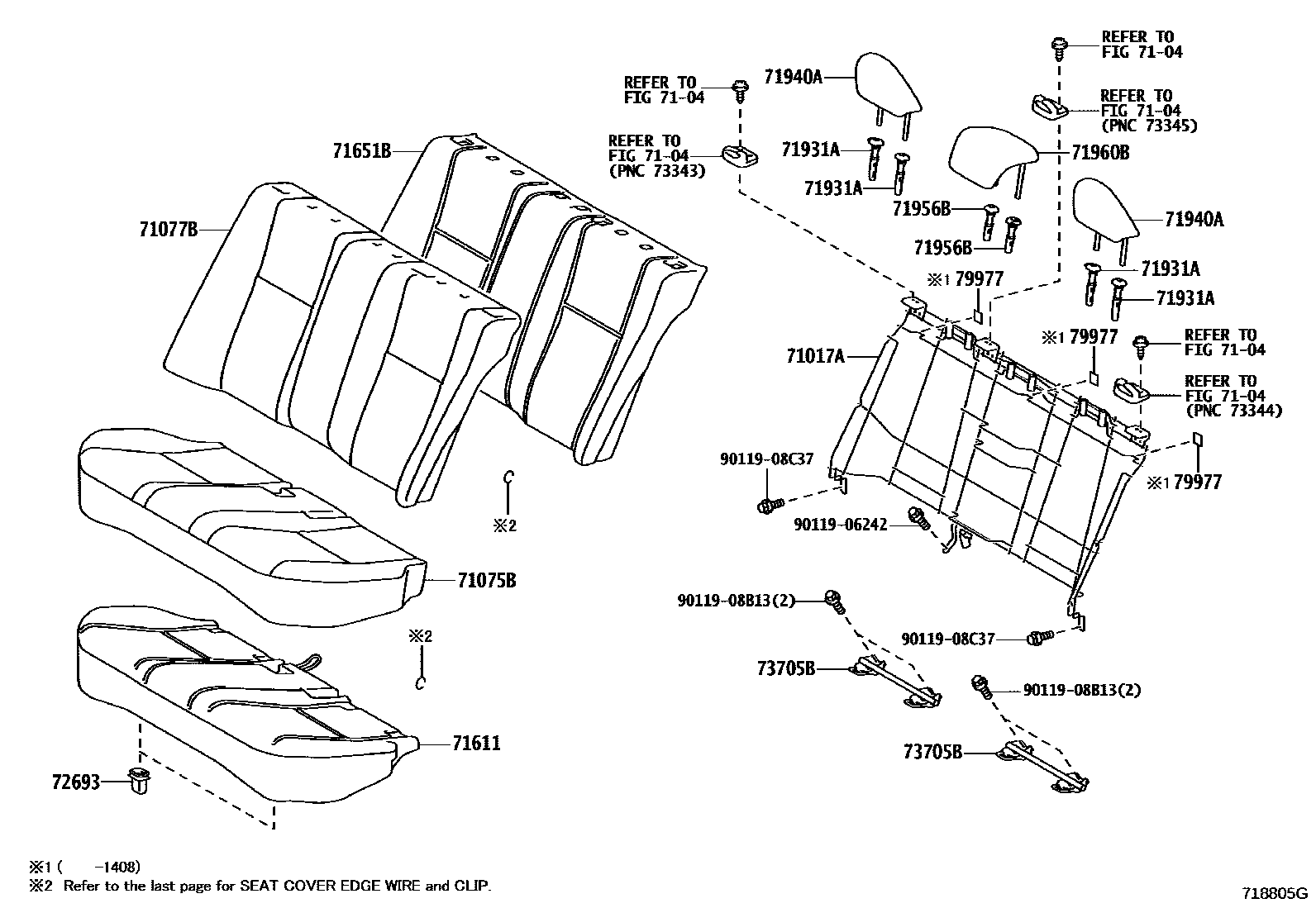

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02350 |
| 71017A | Rear seat back frame sub-assembly | 71017-02790 · 71017-02791 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02480 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02270 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02290 |
| 71611 | Rear seat cushion cushion | 71503-02410 · 71503-02420 · 71503-02470 · 71503-02480 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02310 · 71507-02320 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02660 · 71651-02670 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02590 · 71652-02600 |
| 72630C | Rear right seat back lock assembly | 72630-02220 · 72630-02221 |
| 72640A | Rear left seat back lock assembly | 72640-02160 · 72640-02161 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 73705B | Cross anchor bracket sub-assembly | 73705-02180 |
| 79977 | Seat back felt pad | 79977-02060 · 79977-02061 |
