Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

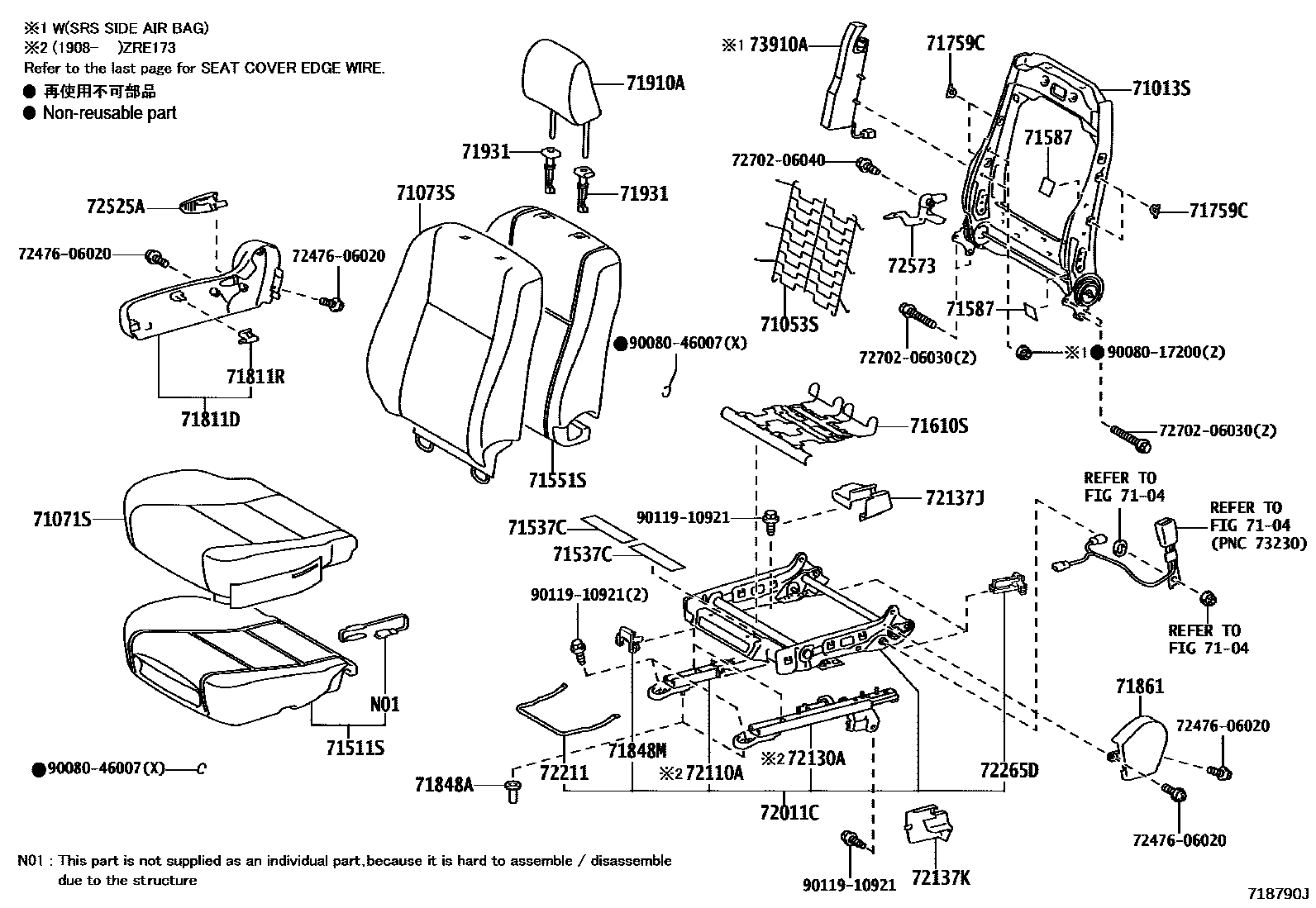

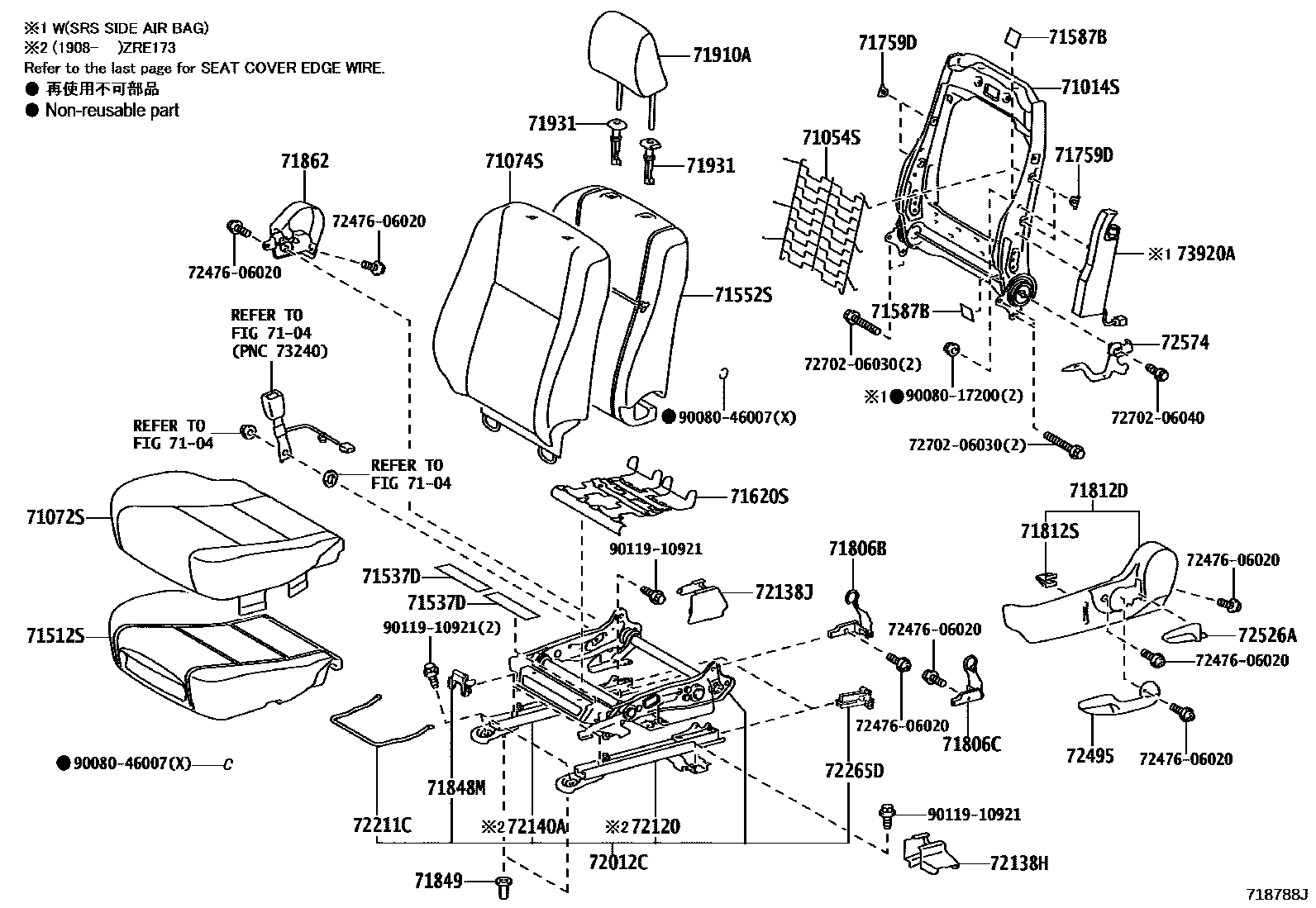

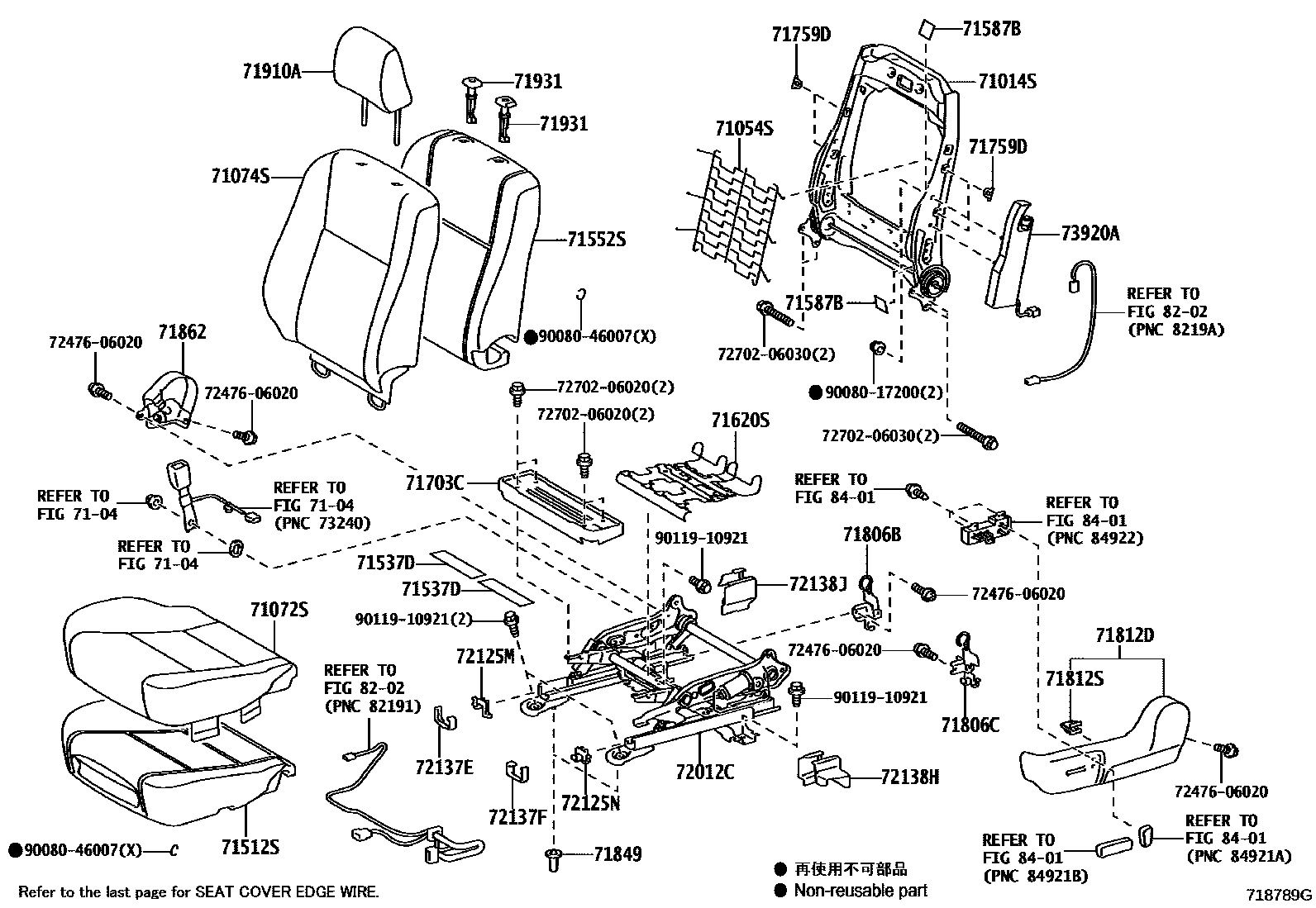

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02300 |
| 71014S | Front left seat back frame sub-assembly | 71013-02310 · 71014-02240 |
| 71053S | Front right seat back spring sub-assembly | 71053-02080 |
| 71054S | Front left seat back spring sub-assembly | 71053-02080 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02200 · 71501-02201 · 71501-02250 · 71501-02251 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-02690 · 71512-02710 · 71512-02720 |
| 71537C | Front right seat cushion edge protective cover | 71537-02330 |
| 71537D | Front left seat cushion edge protective cover | 71537-02330 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02770 · 71551-02B30 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02610 · 71552-02850 |
| 71587 | Front seat back edge protective cover | 71587-02050 |
| 71587B | Front seat back edge protective cover | 71587-02050 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06380 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-02360 · 71620-06370 |
| 71703C | Front seat cushion panel sub-assembly | 71703-06010 |
| 71759C | Front seat back hook No. 1 | 71759-02060 |
| 71759D | Front seat back hook 2 | 71759-02060 |
| 71811R | Front seat cushion right guard panel clip | 71769-0C020 |
| 71812S | Front seat cushion left guard panel clip | 71769-0C020 |
| 71848A | Right seat adjuster cover | 71848-0T020 |
| 71848M | Seat adjuster front cover | 71848-02110 |
| 71849 | left seat adjuster cover | 71848-0T020 |
| 72011C | Front right seat adjuster sub-assembly | 72011-02260 |
| 72012C | Front left seat adjuster sub-assembly | 72012-02290 · 72012-02291 · 72012-02320 |
| 72110A | Front right seat outer slide rail assembly | 72110-02200 |
| 72120 | Front left seat outer slide rail assembly | 72120-02230 |
| 72125M | No. 3 upper seat outer slide rail cover | 72125-06010 |
| 72125N | No. 4 seat outer slide rail upper cover | 72125-06020 |
| 72130A | Front right seat inner slide rail assembly | 72130-02200 |
| 72137E | No. 1 seat slide rail cover | 72125-06030 |
| 72137F | No. 2 seat slide rail cover | 72125-06040 |
| 72140A | Front left seat inner slide rail assembly | 72140-02230 |
| 72211 | Seat slide adjustment handle | 72211-02290 |
| 72211C | Seat slide adjustment handle | 72211-02290 |
| 72265D | Seat rail upper rail cover | 72265-02190 |
| 72573 | Right seat back tilt control lever | 72573-02060 |
| 72574 | Left seat back tilt control lever | 72574-02060 |
| 73910A | Front right seat airbag assembly | 73910-02230 · 73910-02290 |
| 73920A | Front left seat airbag assembly | 73920-02230 · 73920-02290 |
