Toyota COROLLA 锁芯组件 — Figure 6712

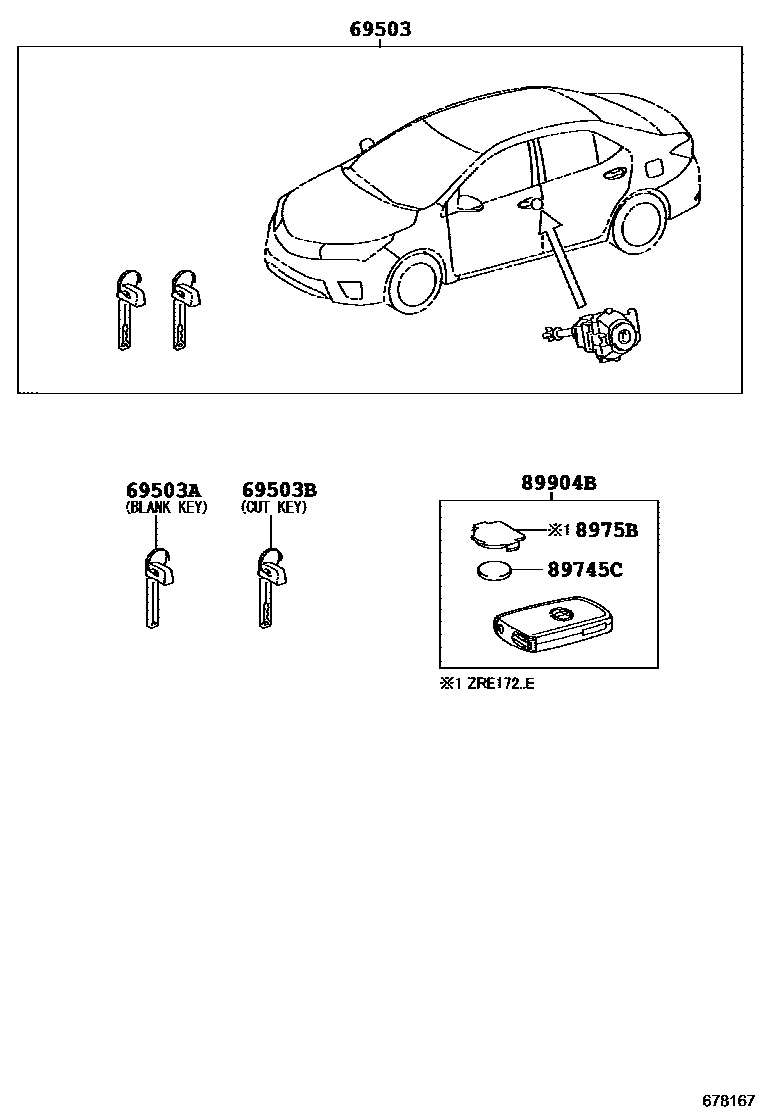

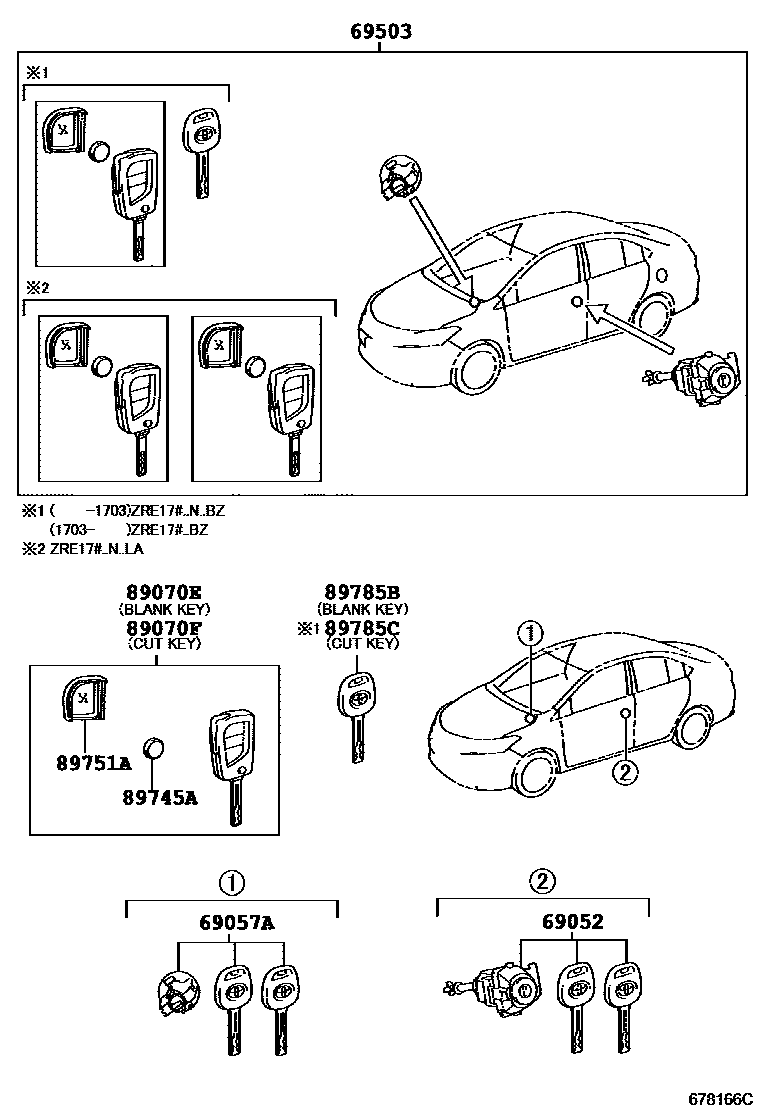

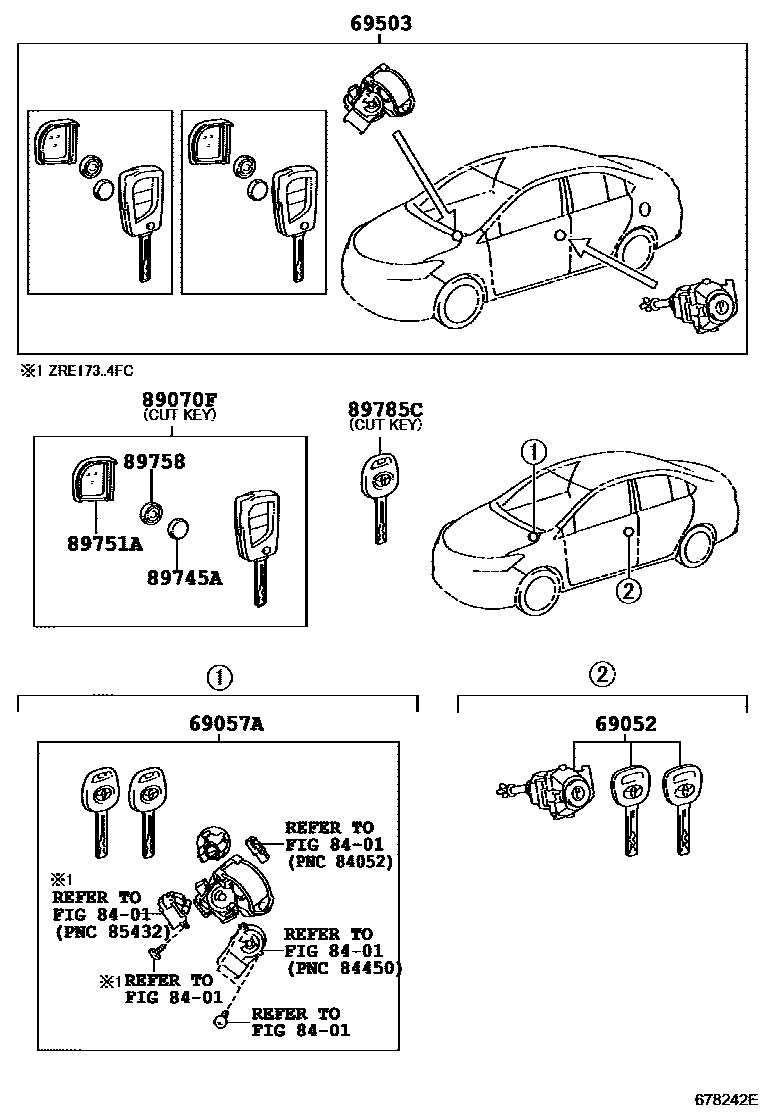

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02320 · 69052-02340 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02760 · 69057-02770 · 69057-02870 |
| 69503 | Door lock cylinder components | 69005-02B60 · 89704-02460 · 89704-02840 · 89704-02A60 · 89704-02A70 |
| 69503A | external tooth key | 69515-06030 · 69515-33100 |
| 69503B | internal tooth key | 69515-06020 · 69515-33090 |
| 89070E | Remote key assembly | 89070-02C10 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02C00 · 89070-02D70 |
| 89745A | Transmitter battery | 89745-0D040 · 89745-0H010 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-02120 · 89751-02180 |
| 89758 | Remote key seal | 89758-02010 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785B | transceiver key master transmitter | 89785-02370 |
| 89785C | transceiver key master transmitter | 89785-02360 · 89785-02460 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33490 · 89904-33500 · 89904-33501 · 89904-33502 |
