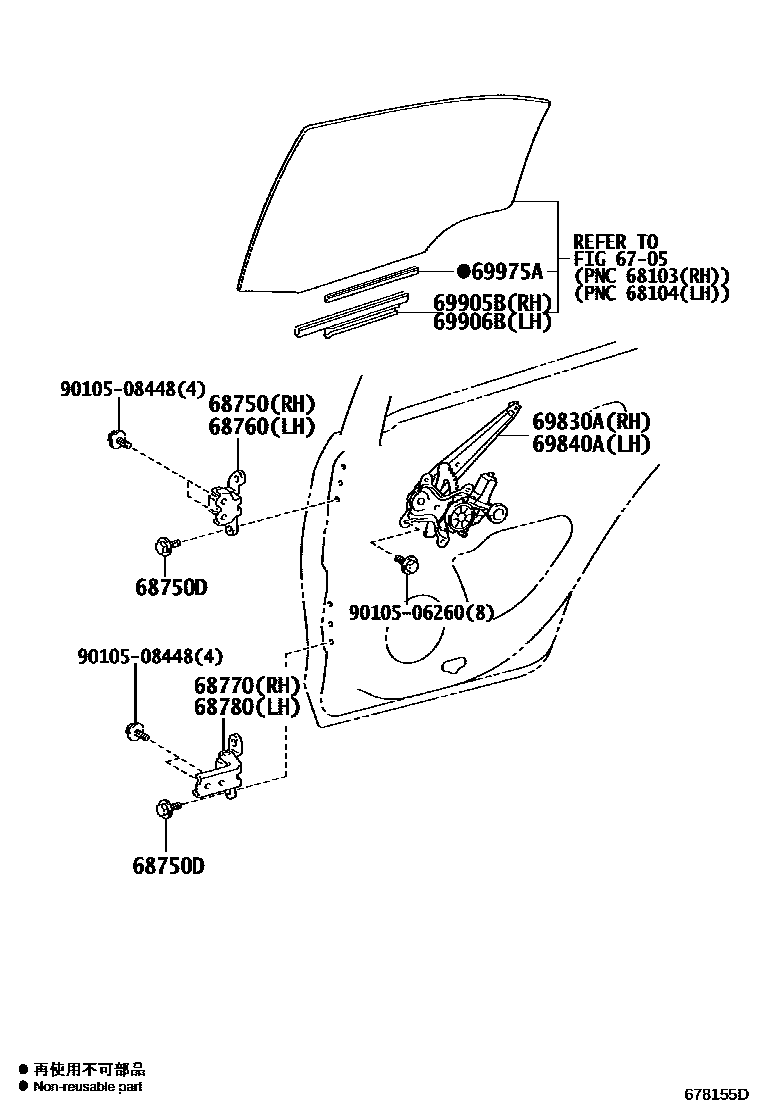

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02070 |
| 68750D | Bolt No. 1 (for rear door hinge) | 90105-08291 · 90105-08485 |
| 68760 | Left rear door upper hinge assembly | 68760-02070 |
| 68770 | Right rear door lower hinge assembly | 68770-52031 |
| 68780 | Left rear door lower hinge assembly | 68780-52031 |
| 69830A | Right rear door window lift assembly | 69830-02590 · 69830-02600 |
| 69840A | Left rear door window lift assembly | 69840-02590 · 69840-02600 |
| 69905B | Right rear door glass groove sub-assembly | 69905-02080 |
| 69906B | Left rear door glass groove sub-assembly | 69906-02080 |
| 69975A | Rear door glass channel filler | 69975-02120 |
