Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 30 PNC and OE references.

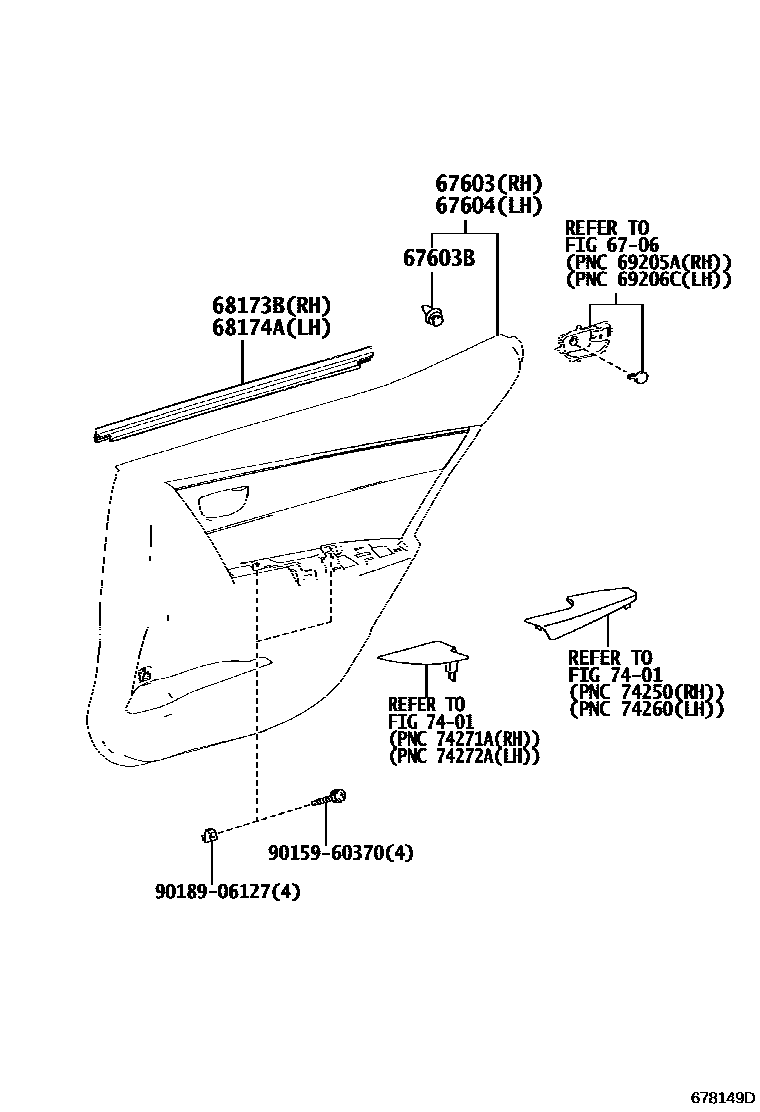

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 678149D
后门板和后门玻璃 — 678149D (201403 – 999999)

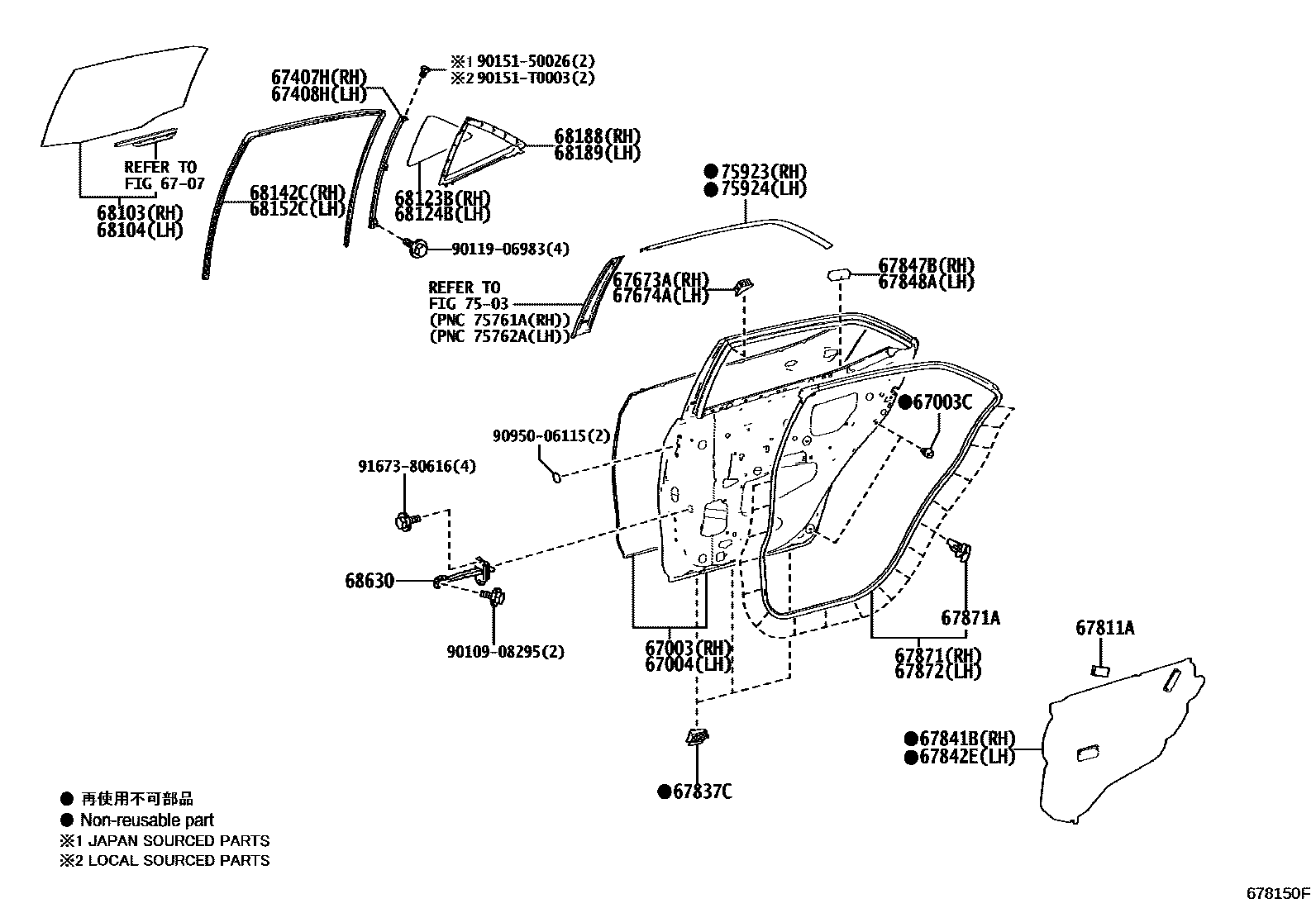

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 678150F
后门板和后门玻璃 — 678150F (201403 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-02460
67003CRear door panel cushion90541-09124
67004Left rear door panel sub-assembly67004-02460
67407HRight sliding door window divider sub-assembly67407-02140
67408HLeft rear sliding door window divider sub-assembly67408-02140
67603BCatch (for rear door trim panel)67773-0E020 · 90467-09206
67673ARight rear door frame decorative strip67673-48010
67674ALeft rear door frame decorative strip67674-48010
67811ARear door silencer pad67811-02380
67837CRear door dust seal retainer67837-0K092
67841BRear door access hole cover67841-02300
67842ELeft rear door access hole cover67842-02280
67847BNo. 1 right rear door ventilation device seal67847-02060
67848ANo. 1 left rear door ventilator seal67847-02060
67871Right rear door sealing strip67871-02260 · 67871-02270
67871AFixings (for rear door sealing strip)67867-12150
67872Left rear door sealing strip67872-02260 · 67872-02270
68103Right rear door glass sub-assembly68103-02470
68104Left rear door glass sub-assembly68104-02480
68123BRight rear door corner window glass68123-02390
68124BLeft rear door corner window glass68124-02390
68142CRight rear door glass lift slot68142-02250 · 68142-02251
68152CLeft rear door glass lift slot68152-02250 · 68152-02251
68173BRight rear door glass inner sealing strip68173-02280
68174ALeft rear door glass inner sealing strip68174-02250
68188Right rear door corner window seal68188-02200
68189Left rear door corner window seal68189-02200
68630Rear door opening limiter assembly68630-02300
75923No. 2 right side light-shielding film75923-02250 · 75923-02260
75924No. 2 left shading film75924-02250 · 75924-02260
