Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

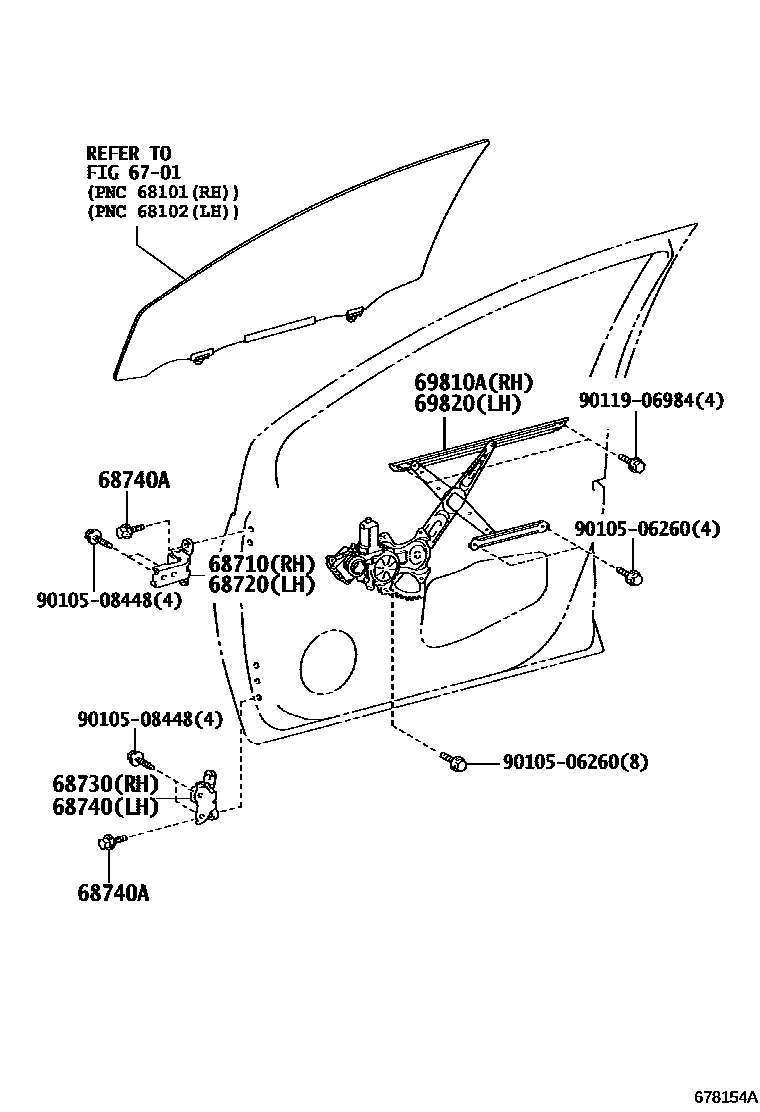

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02110 |
| 68740 | Left front door lower hinge assembly | 68740-02110 |
| 68740A | Bolts (for front door hinges) | 90105-08291 · 90105-08485 |
| 69810A | Right front door window lift assembly | 69810-02600 · 69810-02610 |
| 69820 | Left front door window lift assembly | 69820-02610 |
