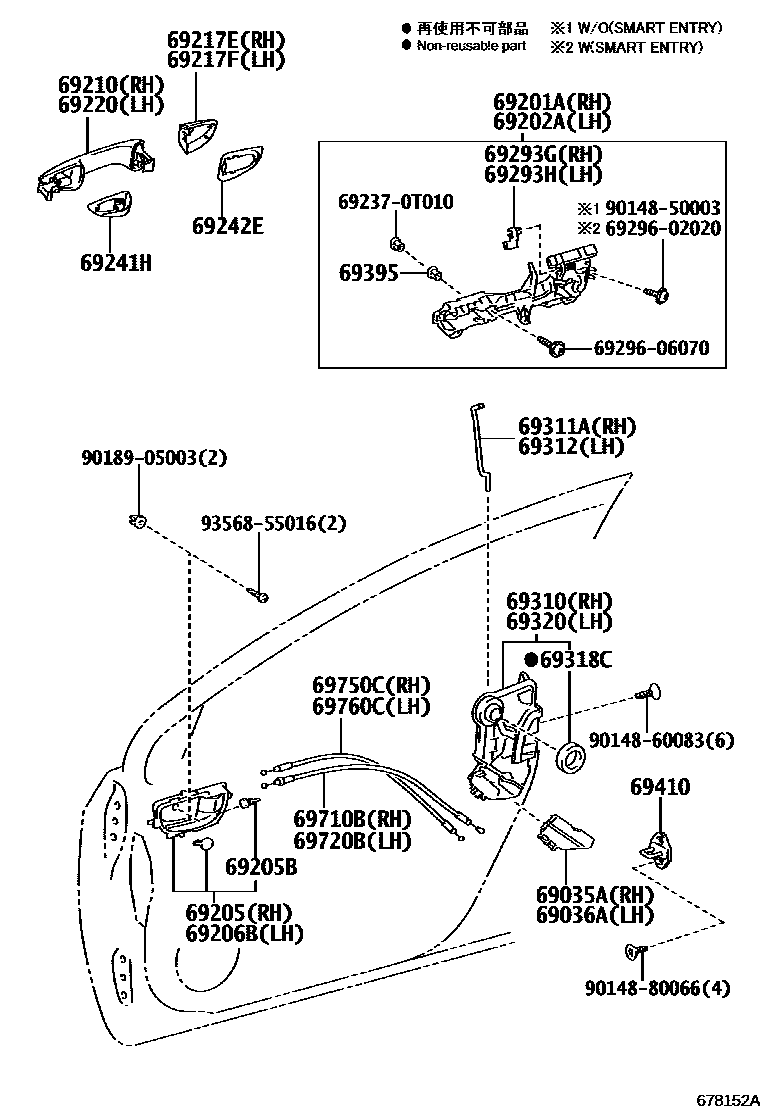

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69035A | Right front door lock cover sub-assembly | 69035-02010 |
| 69036A | Left front door lock cover sub-assembly | 69036-02010 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02230 · 69201-02250 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02170 · 69202-02190 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69211-02930 |
| 69217E | Right front door outer handle cover | 69217-02954 |
| 69217F | Left front door outer handle cover | 69218-02911 |
| 69220 | Left front door outer handle assembly | 69212-02903 |
| 69241H | Front door exterior handle pad | 69241-02140 · 69241-02150 |
| 69242E | Front door rear outer handle pad | 69242-02130 · 69242-02140 |
| 69293G | Right front door outer handle buckle | 69293-12030 · 69293-33010 |
| 69293H | Left front door outer handle buckle | 69293-12040 · 69293-33020 |
| 69310 | Right front door lock assembly | 69030-02530 |
| 69311A | Right front door lock opening lever | 69311-02290 · 69311-02440 |
| 69312 | Left front door lock opening lever | 69312-02290 · 69312-02440 |
| 69318C | door lock harness seal | 69318-51010 · 69318-AA010 |
| 69320 | Left front door lock assembly | 69040-02510 |
| 69395 | Bushing (for outer door handle) | 69239-0T010 |
| 69410 | Front door lock plate assembly | 69410-02090 |
| 69710B | Right front door lock remote control cable assembly | 69710-02270 |
| 69720B | Left front door lock remote control cable assembly | 69710-02270 |
| 69750C | Right front door inner lock cable assembly | 69750-02300 |
| 69760C | Left front door inner lock cable assembly | 69750-02300 |
