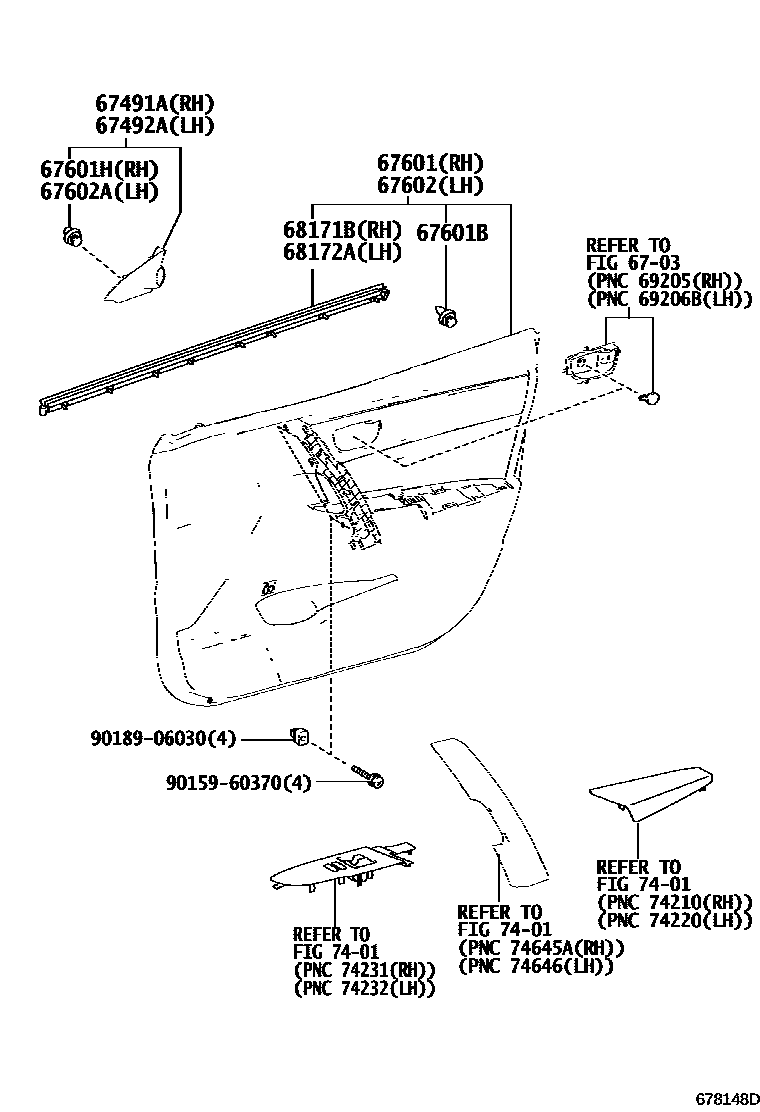

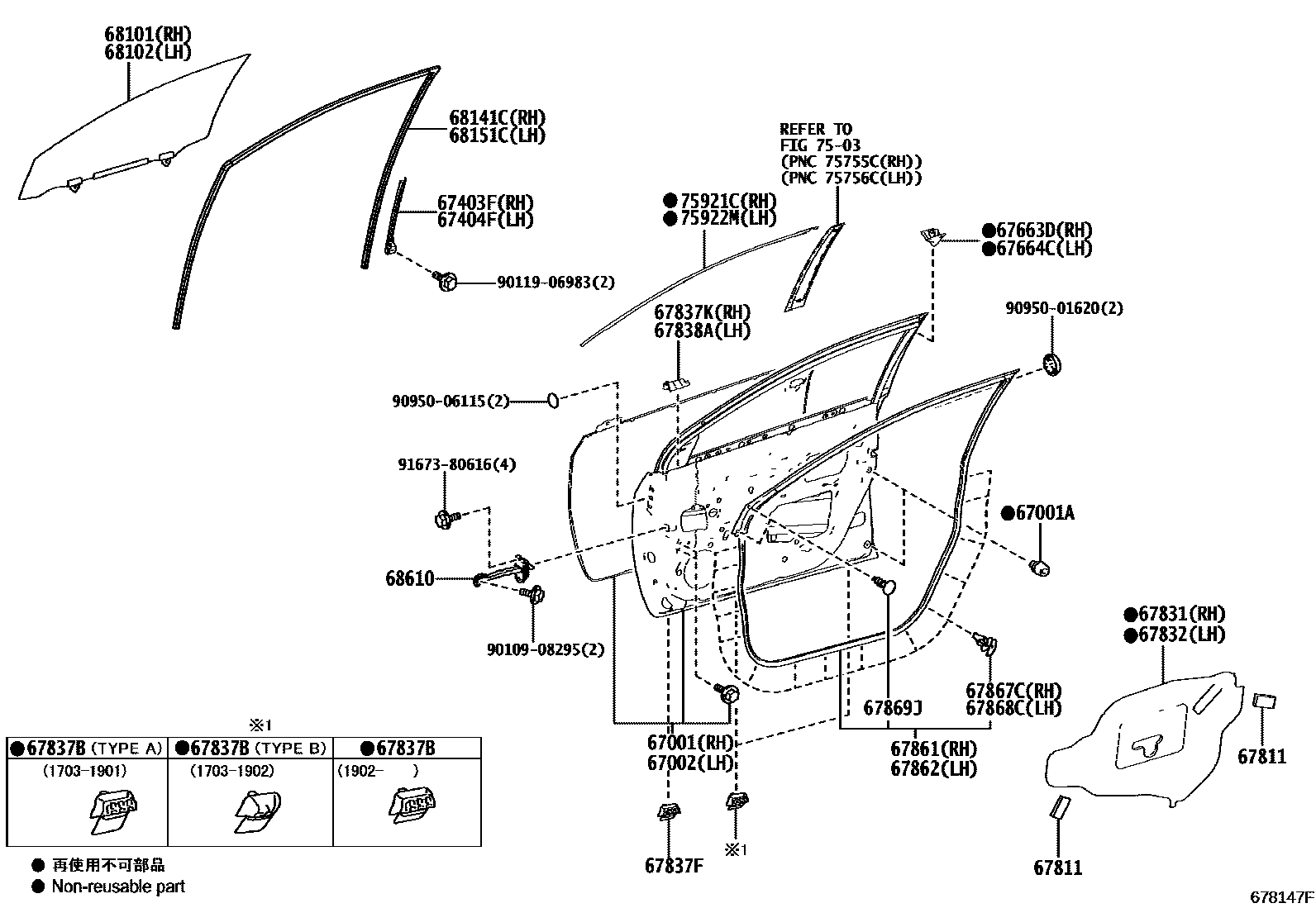

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02450 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-02450 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02200 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02200 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-02560 · 67491-02570 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-02560 · 67492-02570 |
| 67601B | Catch (for front door trim panel) | 67773-0E020 · 90467-09206 |
| 67601H | Right door trim panel fixing | 67771-12060 |
| 67602A | Left door trim panel fixing | 67771-12060 |
| 67663D | Right door frame decorative strip | 67663-48010 |
| 67664C | Left door frame decorative strip | 67664-48010 |
| 67811 | Front door silencer pad | 67811-02380 |
| 67831 | Right front door access hole cover | 67831-02360 |
| 67832 | Left front door access hole cover | 67832-02360 |
| 67837B | Front door dust seal retainer | 67837-0K090 · 67837-0K092 · 67837-48050 |
| 67837F | Door dust seal retainer | 67837-0K092 |
| 67837K | Front door ventilator seal | 67837-02070 |
| 67838A | Left front door ventilator seal | 67838-02040 |
| 67861 | Right front door seal | 67861-02290 · 67861-02300 |
| 67862 | Left front door seal | 67862-02290 · 67862-02300 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-02490 |
| 68102 | Left front door glass sub-assembly | 68102-02490 |
| 68141C | Right front door glass lift channel | 68141-02170 · 68141-02171 |
| 68151C | Left front door glass lift channel | 68151-02180 · 68151-02181 |
| 68171B | Right front door glass inner sealing strip | 68171-02300 · 68171-02301 |
| 68172A | Left front door glass inner sealing strip | 68172-02290 · 68172-02291 |
| 68610 | Front door opening limiter assembly | 68610-02310 |
| 75921C | No. 1 right side light-shielding film | 75921-02220 · 75921-02230 |
| 75922M | No. 1 left shading film | 75922-02220 · 75922-02230 |
