Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

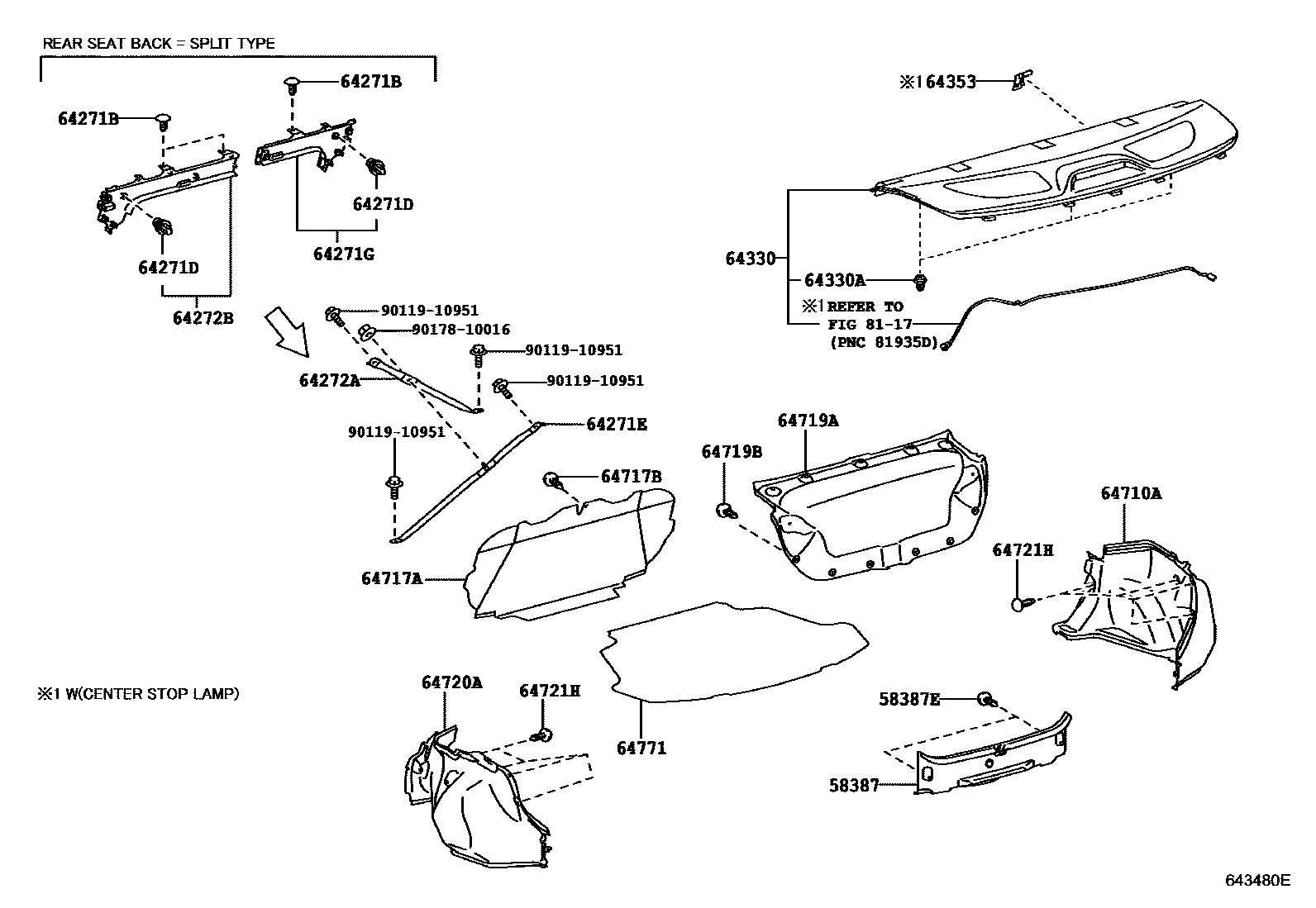

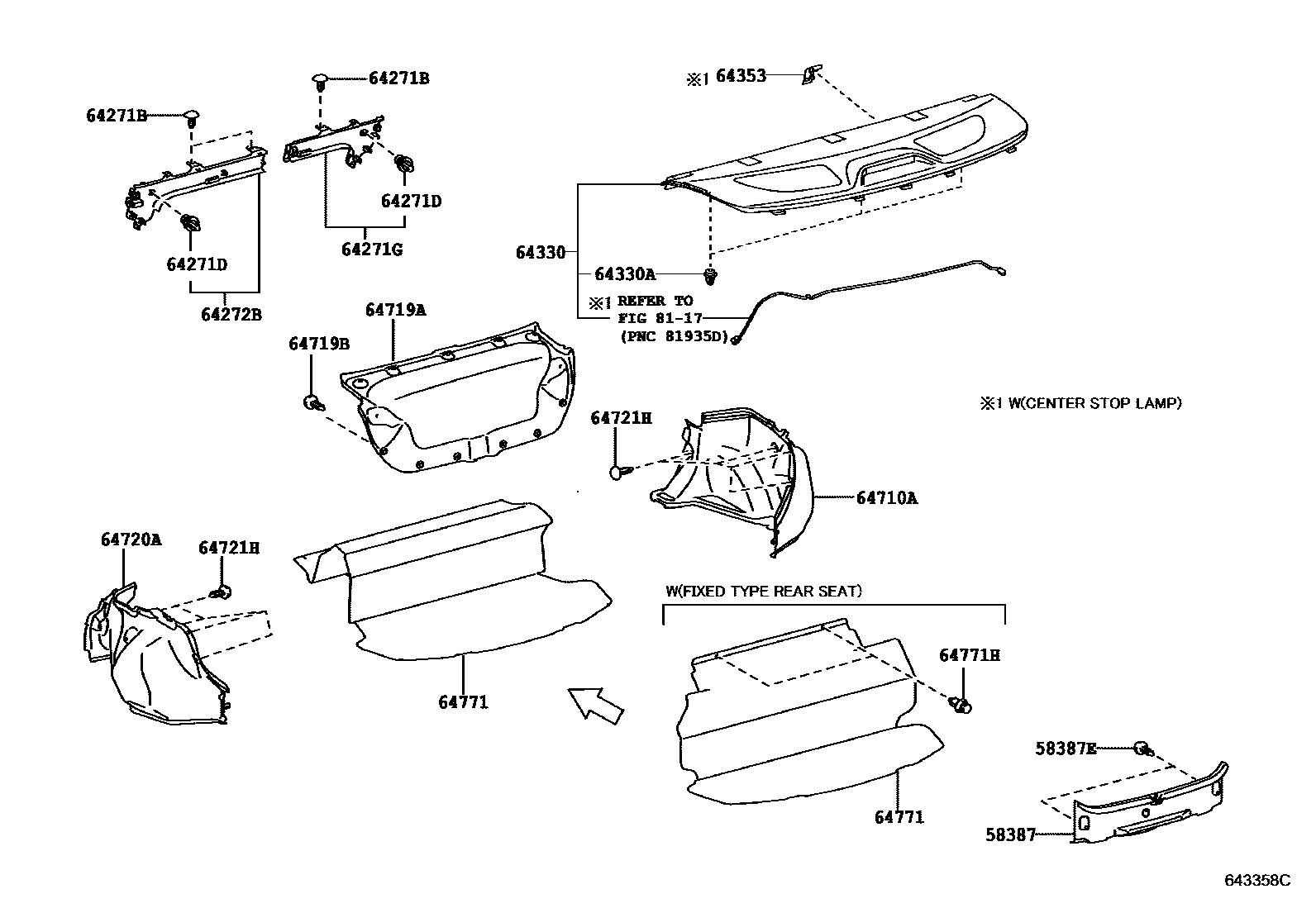

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-02280 · 58387-02290 · 58387-02320 |
| 64271D | Clip (for back panel decorative panel) | 62489-0E010 |
| 64271E | compartment partition | 64241-02120 |
| 64272A | Left compartment partition | 64242-02120 |
| 64330A | Clip (for glove box decorative panel) | 62489-0E010 |
| 64717A | Luggage front decorative cover | 64717-02240 |
