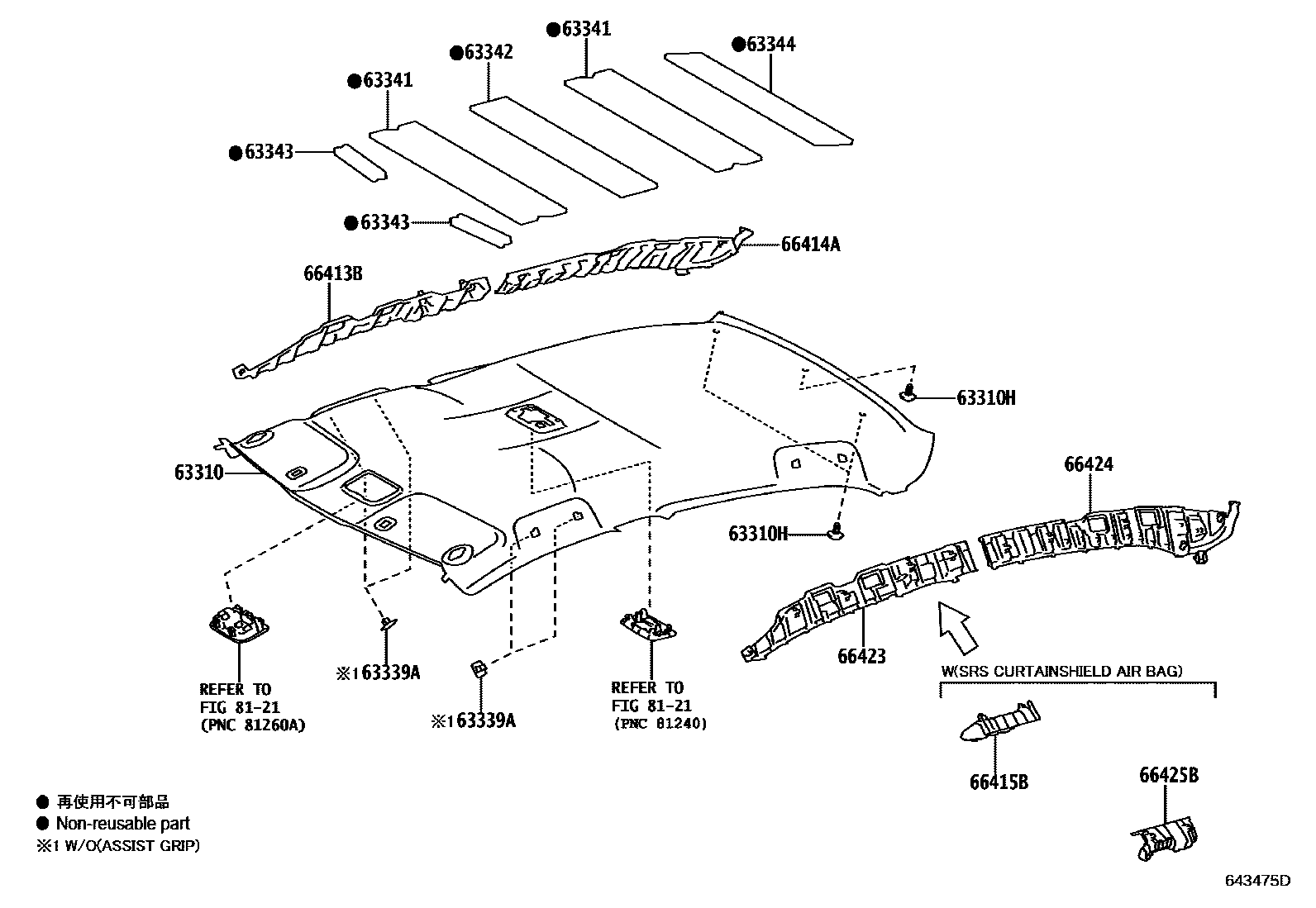

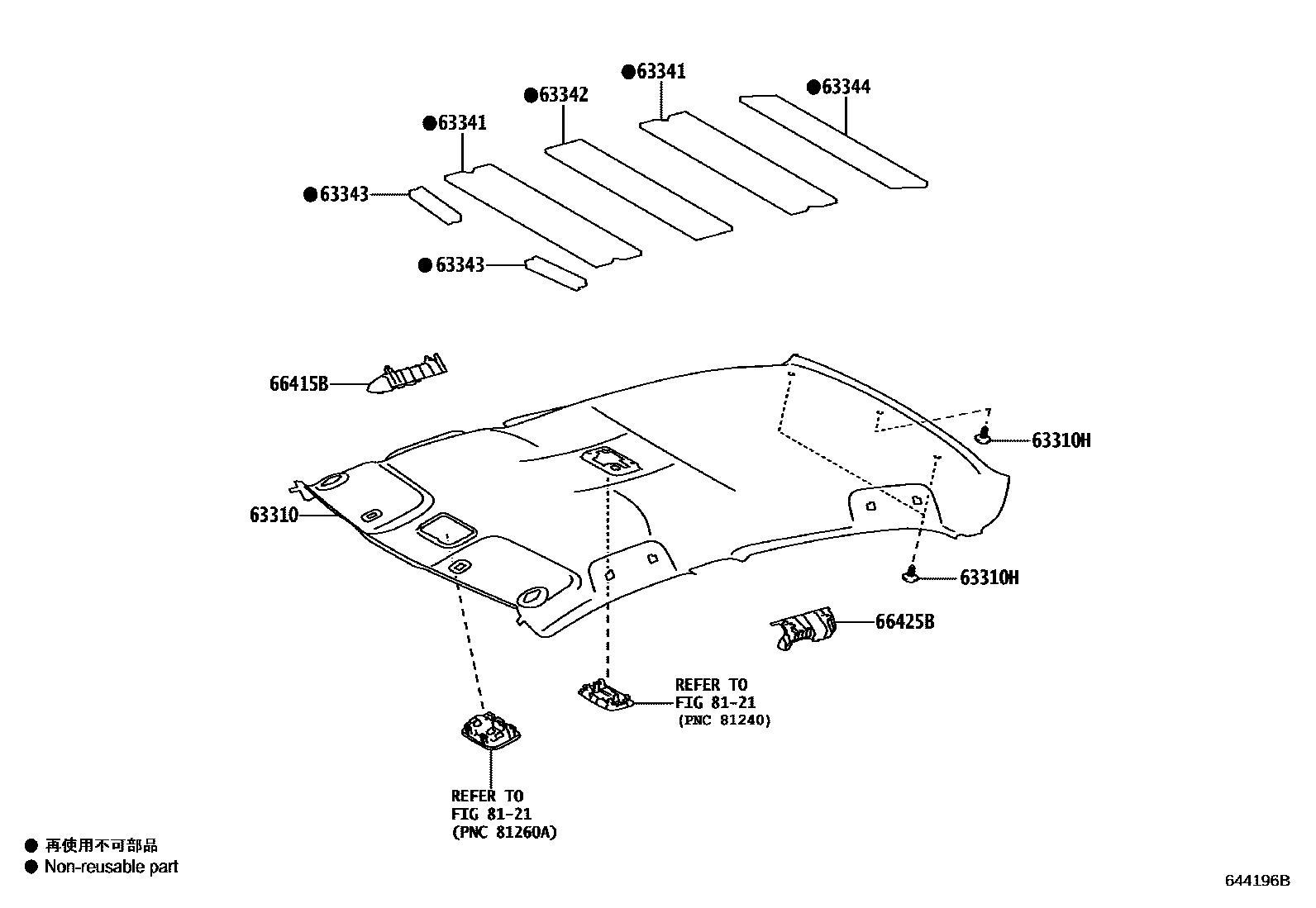

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-02280 · 63341-02410 |
| 63342 | No. 2 roof muffler pad | 63342-02610 · 63342-02630 |
| 63343 | No. 3 roof muffler pad | 63343-02150 · 63343-02151 |
| 63344 | No. 4 roof silencer mat | 63342-02610 · 63342-02630 · 63342-02631 |
| 66413B | Right front longitudinal member spacer | 66413-02210 |
| 66414A | Right rear longitudinal member spacer | 66414-02240 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-02120 |
| 66423 | Left front longitudinal member spacer | 66423-02210 |
| 66424 | Left rear longitudinal member spacer | 66424-02240 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-02130 |
