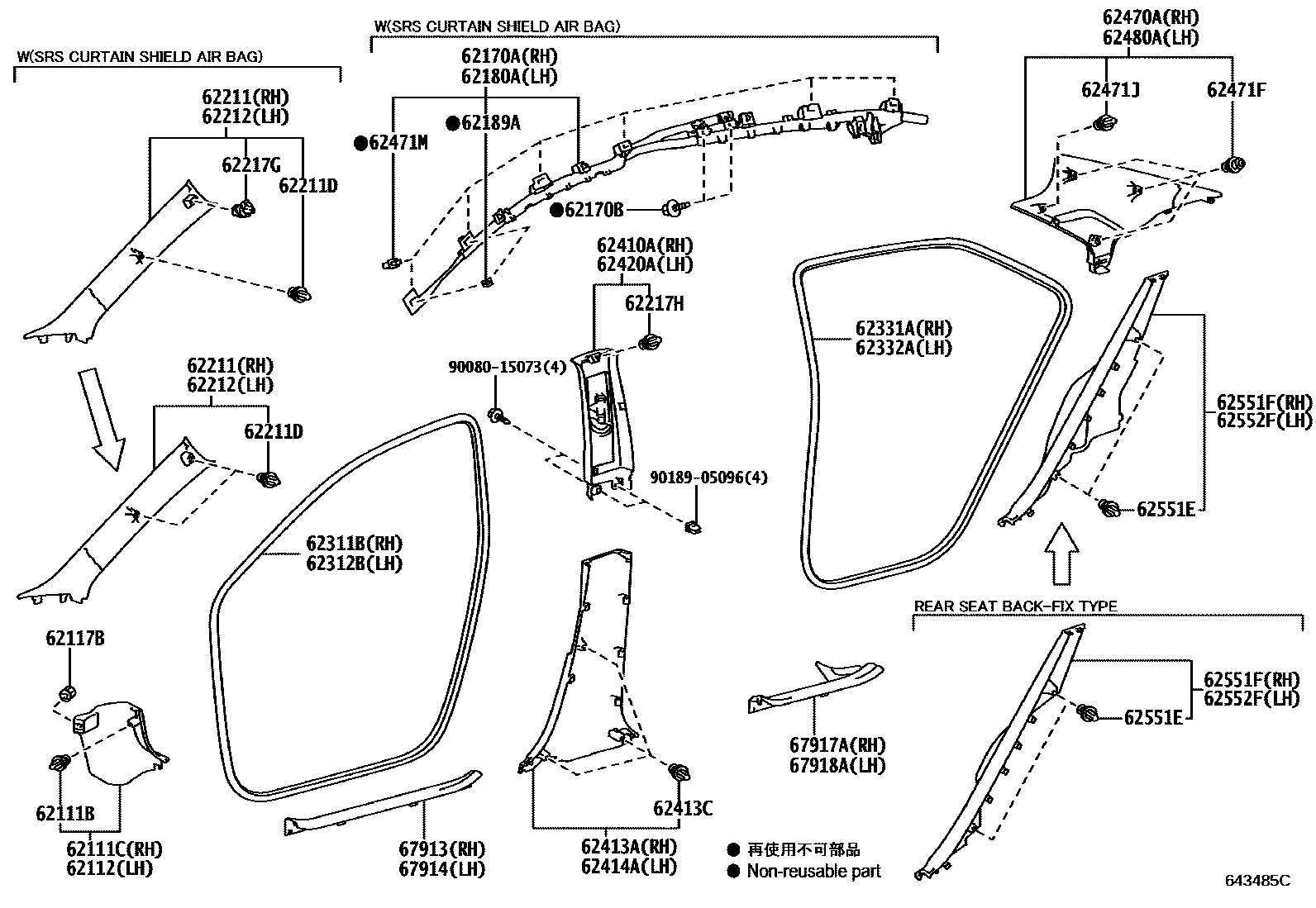

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 62489-0E010 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06155 |
| 62170A | Right curtain air bag assembly | 62170-02220 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-02210 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211D | Clip (for body front pillar decorative panel) | 62489-0E010 |
| 62217G | Front pillar decorative plate clip | 62217-52120 |
| 62217H | Center pillar decorative plate clip | 90467-10188 |
| 62311B | Right front door opening waterproof tape | 62311-02280 · 62311-02290 |
| 62312B | Left front door opening waterproof tape | 62312-02270 · 62312-02280 |
| 62331A | Right rear door opening waterproof tape | 62331-02300 · 62331-02310 |
| 62332A | Left rear door opening waterproof tape | 62332-02300 · 62332-02310 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-09236 · 90467-A0033 |
| 62471J | Clips (for roof side trim panels) | 90467-10188 |
| 62471M | clip | 90467-18017 |
| 62551E | Clips (for rear seat side trim panels) | 62489-0E010 |
