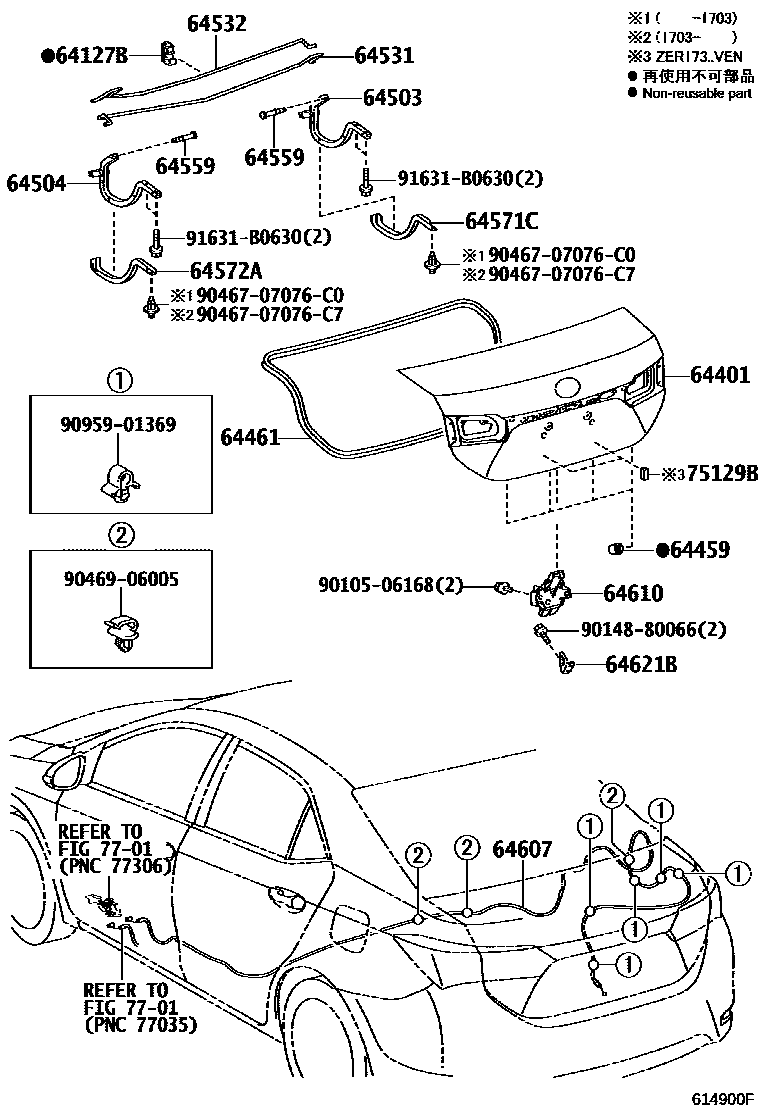

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02C60 · 64401-02C61 · 64401-02C70 · 64401-02C71 · 64401-02C80 · 64401-02C81 · 64401-02C90 · 64401-02C91 · 64401-02D10 · 64401-02D11 · 64401-02D80 · 64401-02J90 |
| 64459 | Trunk door cushion | 90541-09116 |
| 64461 | Trunk door seal | 64461-02230 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02190 · 64503-02191 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02190 · 64503-02191 |
| 64531 | Trunk door right hinge torsion bar | 64531-02330 · 64531-02331 · 64531-02370 · 64531-02371 · 64531-02380 · 64531-02381 · 64531-02410 · 64531-02411 · 64531-02470 · 64531-02480 · 64531-02490 · 64531-02500 |
| 64532 | Trunk door left hinge torsion bar | 64532-02330 · 64532-02331 · 64532-02370 · 64532-02371 · 64532-02380 · 64532-02381 · 64532-02410 · 64532-02411 · 64532-02470 · 64532-02480 · 64532-02490 · 64532-02500 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64571C | Decorative cover on right side of luggage compartment door | 64571-02030 |
| 64572A | Luggage door left decorative cover | 64572-02030 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12A60 |
| 64610 | Trunk door lock assembly | 64600-02080 |
| 64621B | Trunk door latch | 64621-06080 |
| 75129B | rear license plate cushion | 75129-13020 |
