Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

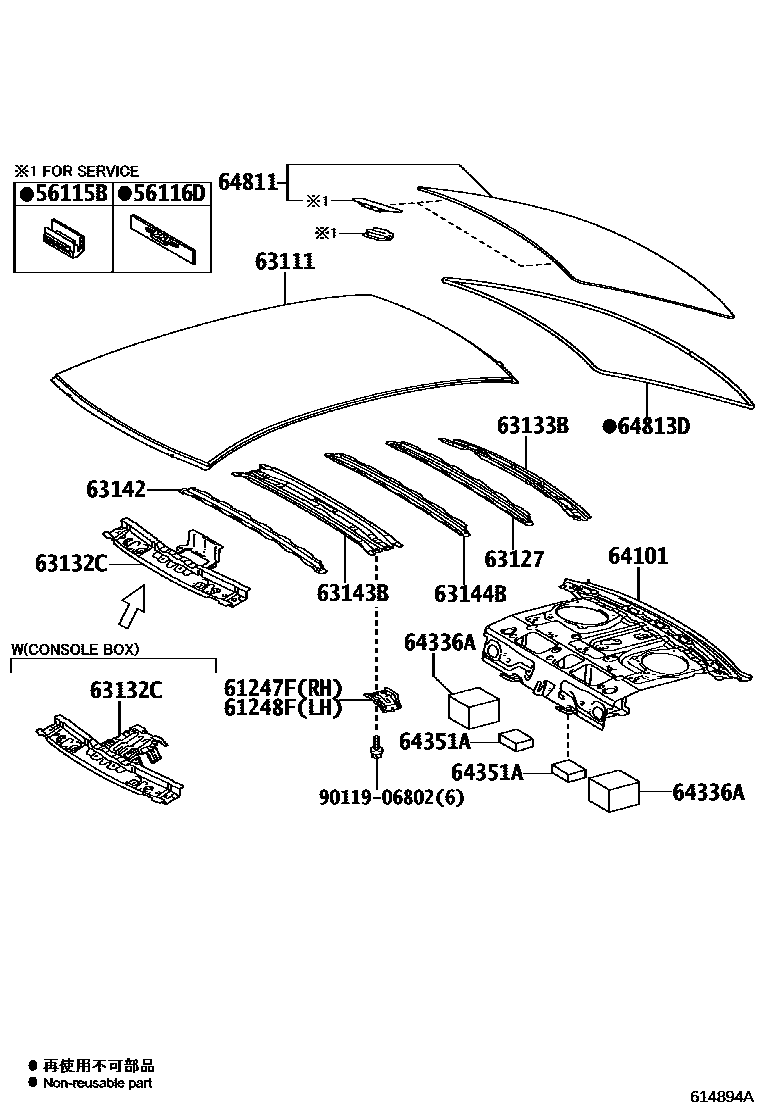

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02190 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61247-02190 |
| 63111 | roof panel | 63111-02490 · 63111-02600 |
| 63127 | No. 5 roof panel reinforcement | 63127-02110 |
| 63132C | Windshield inner roof panel | 63102-02370 · 63102-02371 · 63102-02380 · 63102-02381 |
| 63133B | back window frame | 63133-02150 · 63133-02151 |
| 63142 | No. 2 roof panel reinforcement | 63143-02180 |
| 63143B | No. 3 roof panel reinforcement | 63141-02200 |
| 63144B | No. 4 roof panel reinforcement | 63144-02200 |
| 64101 | Upper back panel sub-assembly | 64101-02440 · 64101-02460 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02100 |
| 64351A | No. 1 glove box decorative mat | 64351-02110 |
| 64811 | back window glass | 64801-02250 · 64801-02251 · 64801-02260 |
| 64813D | Back window glass adhesive seal | 64813-02200 |
