Toyota COROLLA 侧梁 — Figure 6101

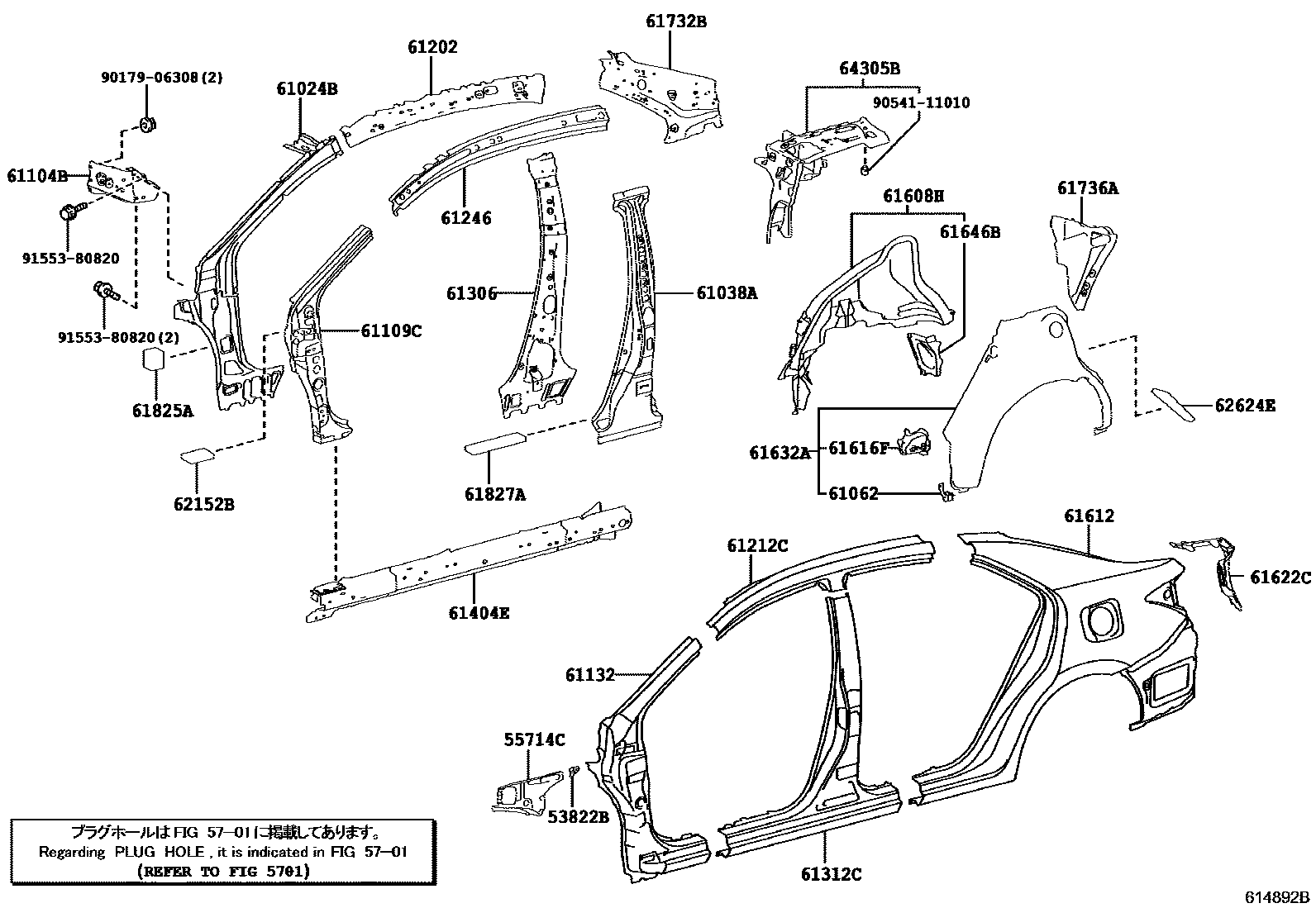

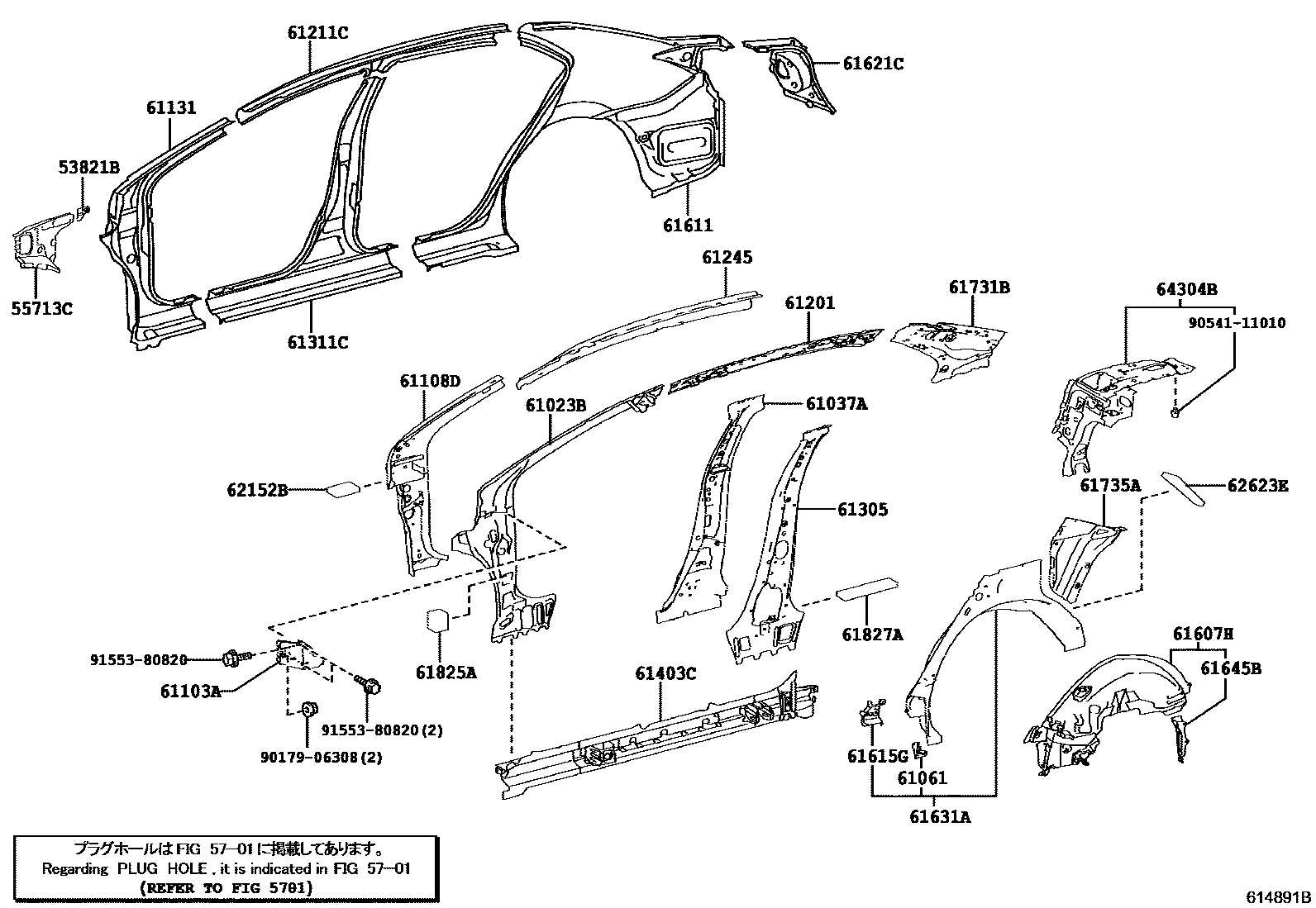

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-02070 |
| 53822B | Left front fender rear support | 53822-02050 |
| 55713C | Right front wall upper side panel | 55713-02170 |
| 55714C | Left front wall upper side panel | 55714-02170 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02310 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02290 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02918 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02918 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-02090 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-02090 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-02151 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-02190 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02230 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02230 |
| 61131 | Right body outer front upper pillar | 61131-02240 · 61131-02360 |
| 61132 | Left body outer front upper pillar | 61132-02270 · 61132-02390 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-02240 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-02240 |
| 61211C | Roof right side rail | 61211-02160 |
| 61212C | Roof left side rail | 61212-02160 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02230 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02230 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02160 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02160 |
| 61311C | Right rear body front outer panel | 61311-02200 · 61311-02350 |
| 61312C | Left rear body front outer panel | 61312-02200 · 61312-02340 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02900 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02900 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02720 · 61607-02721 · 61607-02730 · 61607-02731 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02610 · 61608-02611 · 61608-02620 · 61608-02621 |
| 61611 | Right side hoarding | 61601-02300 · 61601-02460 |
| 61612 | left side panel | 61602-02310 · 61602-02490 |
| 61615G | Right rear body rear side panel reinforcement | 61615-02130 |
| 61616F | Left rear body rear side panel reinforcement | 61616-02140 |
| 61621C | Luggage right opening slot | 61621-02903 |
| 61622C | Luggage trunk left opening slot | 61622-02902 |
| 61631A | Right wheel cover outer panel | 61605-02150 |
| 61632A | Left side wheel cover outer panel | 61606-02170 · 61632-02240 |
| 61638F | Left side wheel cover bracket | 61637-02020 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61731B | Roof right inner panel | 61731-02300 |
| 61732B | Roof left inner panel | 61732-02300 |
| 61735A | Right rear roof inner panel | 61735-02200 |
| 61736A | Left rear roof inner panel | 61736-02200 |
| 61825A | Noise Control Panel No. 2 | 61825-02110 |
| 61827A | Noise Control Panel No. 4 | 61827-02100 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62623E | Right rear side wheel housing lining block | 62623-02120 |
| 62624E | Left rear side wheel housing lining block | 62623-02120 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02210 · 64304-02220 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02210 · 64305-02220 |
