Toyota COROLLA 中央扶手箱和支架 — Figure 5806

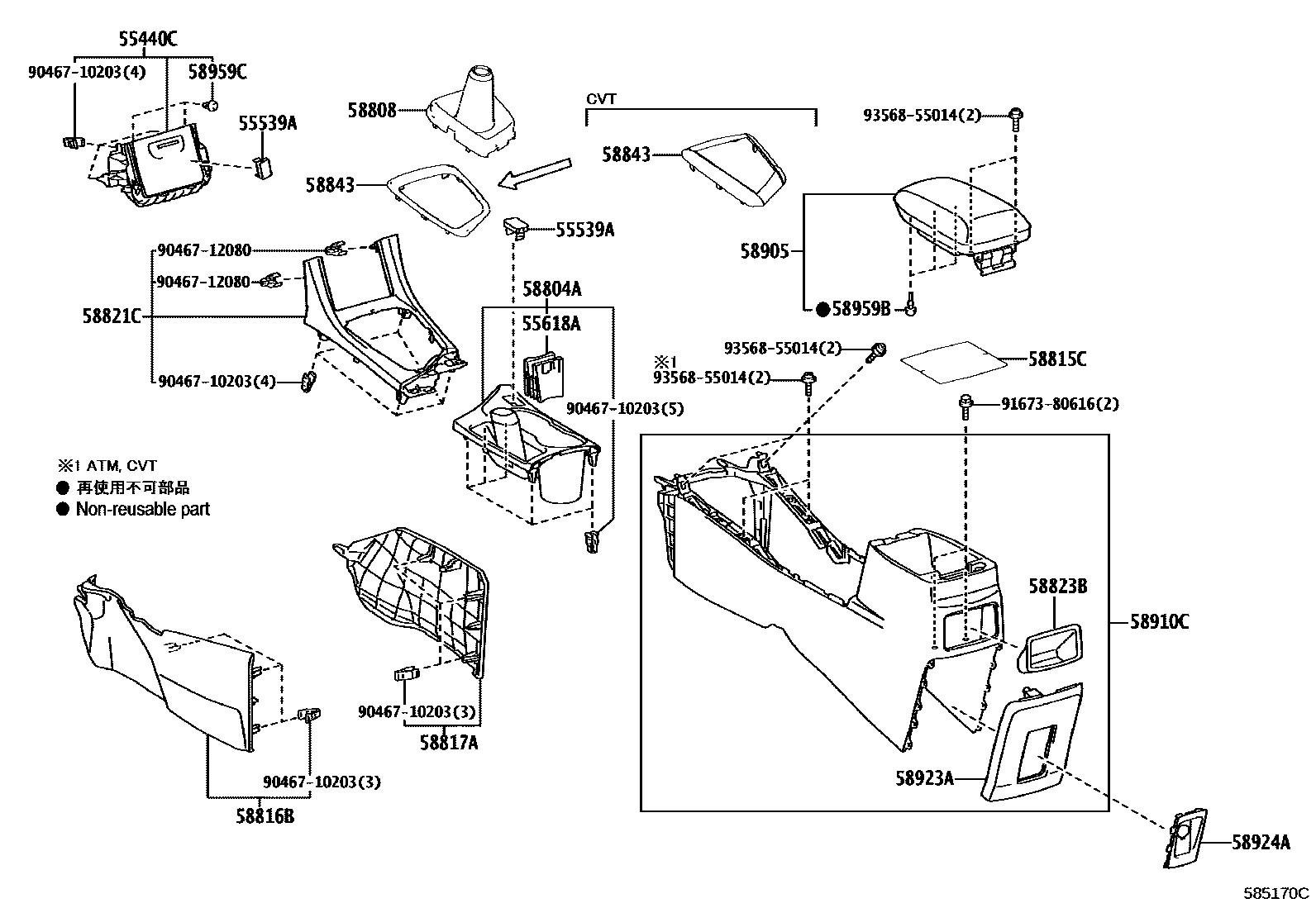

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815C | Armrest box felt pad | 58815-02360 |
| 58843 | shift hole frame | 58843-02610 · 58843-02680 · 58843-02730 · 58843-02800 · 58843-02A70 · 58843-02B40 · 58843-02B50 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58959C | Armrest box cover cushion | 58959-60060 |
