Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 4 PNC and OE references.

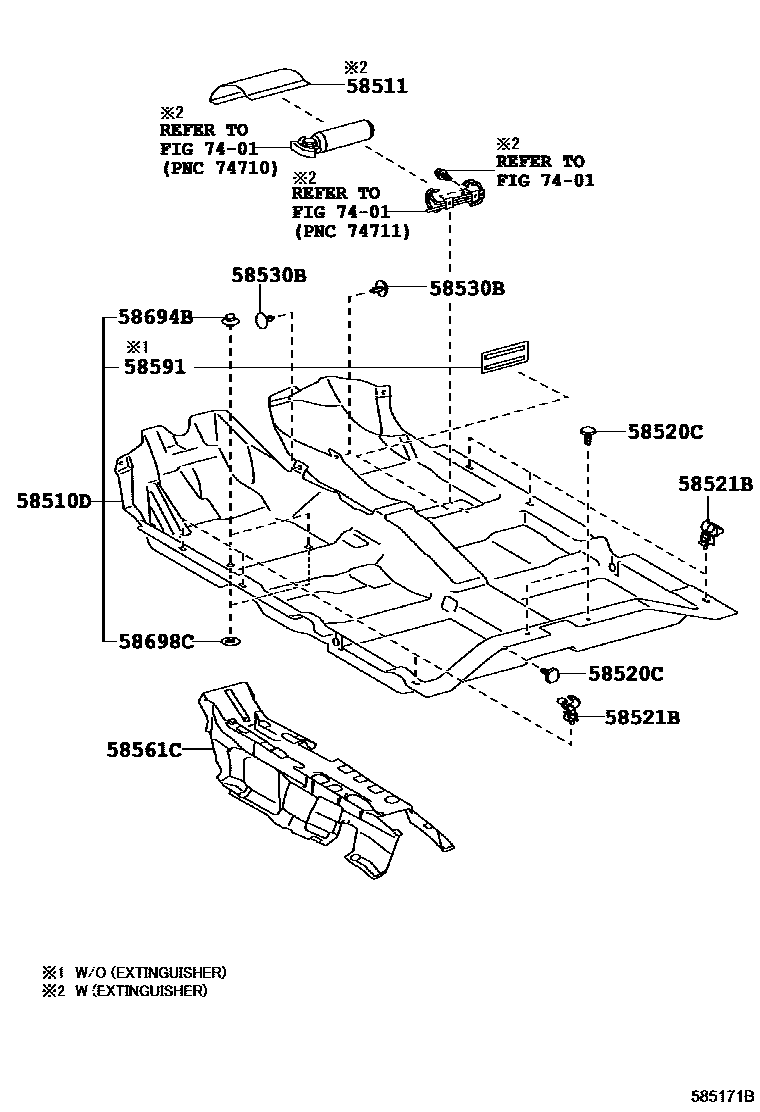

Toyota COROLLA 地板垫和地毯 EPC diagram — 585171B
地板垫和地毯 — 585171B (201403 – 999999)

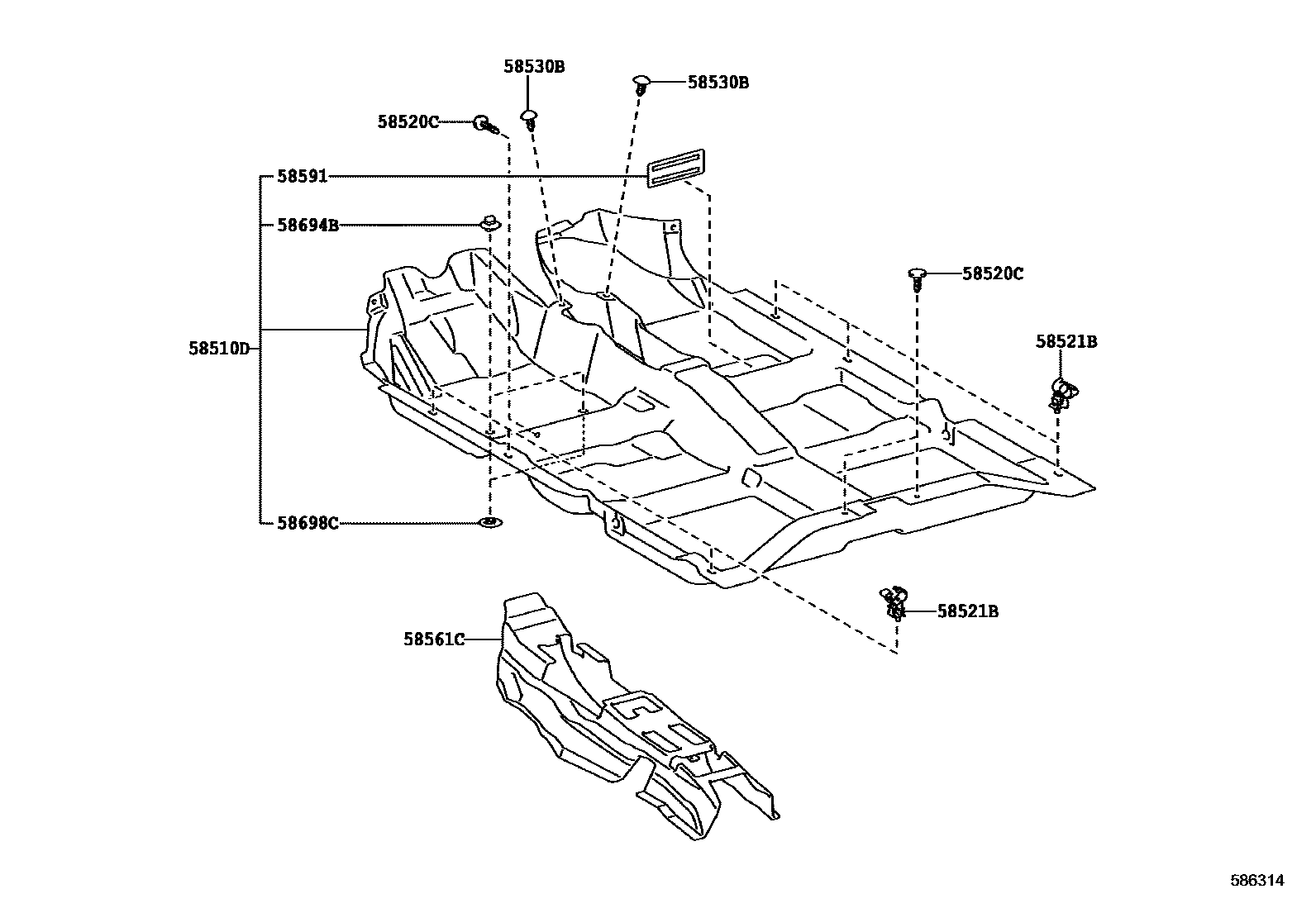

Toyota COROLLA 地板垫和地毯 EPC diagram — 586314
地板垫和地毯 — 586314 (201708 – 999999)

PNC and OE references

PNCPart nameOE numbers
58521Bcarpet hook58521-02120
58561CFront floor silencer No. 158561-02340
58694BPad the fixing plate58694-76010
58698CFixing plate under the pad58698-76010
