Toyota COROLLA 地板隔热垫 — Figure 5802

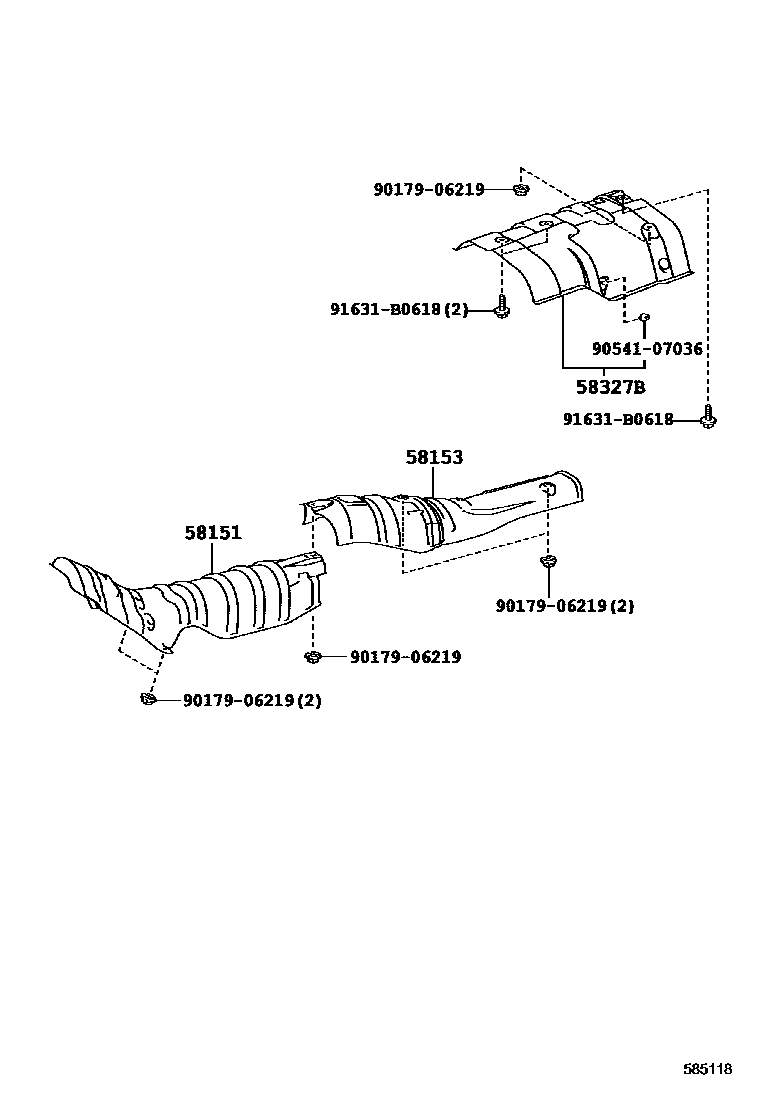

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-02450 · 58151-02460 |
| 58153 | Front floor insulation mat No. 2 | 58153-02280 · 58153-02310 |
| 58327B | Main muffler heat insulation pad | 58327-02090 · 58327-02110 |
