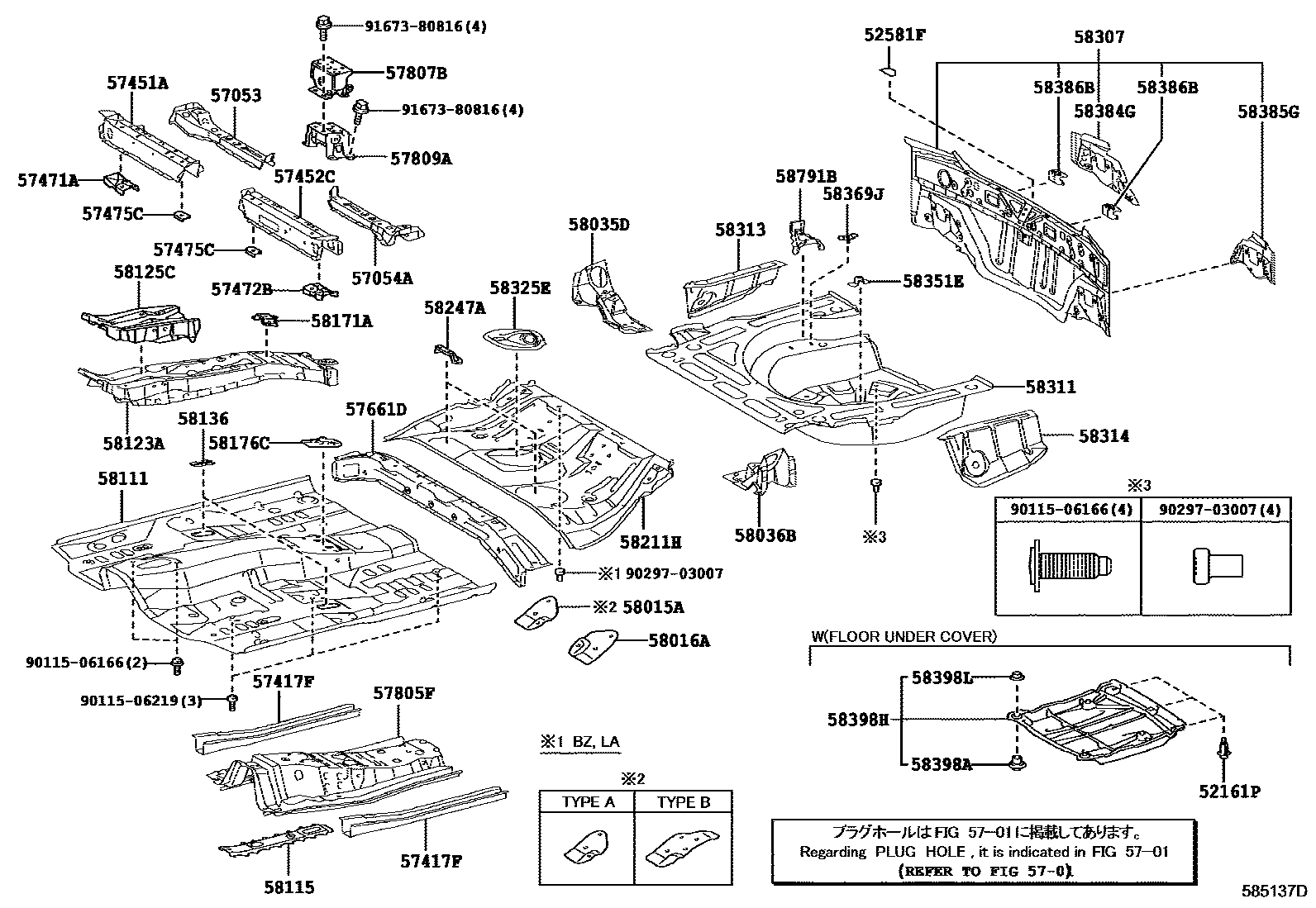

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161P | Rear bumper insert | 52161-16010 |
| 52581F | rear bumper protector | 52581-13030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02070 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02060 |
| 57417F | Front floor lower right reinforcement | 57417-02190 |
| 57451A | Front floor right cross member | 57451-02230 · 57451-02240 |
| 57452C | Front floor left cross member | 57452-02160 · 57452-02170 |
| 57471A | Seat belt anchor to floor bracket reinforcement | 57471-02080 |
| 57472B | Left-hand seat belt anchor to floor support reinforcement | 57472-02070 |
| 57475C | Front floor cross member panel | 57475-02090 |
| 57661D | rear floor front cross member | 57661-02140 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02150 · 57805-02151 |
| 57807B | No. 2 seat belt anchor reinforcement sub-assembly | 57807-02050 |
| 57809A | No. 3 seat belt anchor reinforcement sub-assembly | 57809-02050 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02130 · 58015-02140 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02110 |
| 58035D | Rear floor right side panel extension sub-assembly | 58035-02030 · 58035-02050 |
| 58036B | Rear floor left side panel extension sub-assembly | 58036-02030 · 58036-02050 |
| 58111 | front floor pan | 58111-02935 · 58111-02941 |
| 58115 | Front floor reinforcement | 58115-02030 |
| 58123A | shift lever bracket | 58123-02130 · 58123-02131 |
| 58125C | Front floor to cowl bracket mounting bracket | 58125-02020 |
| 58136 | Front floor hole cover | 58136-02070 |
| 58171A | Parking brake base reinforcement | 58171-02120 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-12030 |
| 58211H | central floor base | 58211-02390 · 58211-02400 · 58211-02420 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02170 |
| 58307 | Body lower back panel sub-assembly | 58307-02390 · 58307-02510 |
| 58311 | rear floor pan | 58311-02180 · 58311-02330 · 58311-02340 · 58311-12270 |
| 58313 | Rear floor right panel | 58313-12300 |
| 58314 | rear floor left panel | 58314-12300 |
| 58325E | Rear floor access hole cover | 58325-02140 |
| 58351E | Spare tire clip bracket | 58351-33010 |
| 58369J | rear floor bracket | 58369-12020 |
| 58384G | Body lower back panel upper right corner panel | 58384-02200 |
| 58385G | Body lower back panel upper left corner panel | 58385-02170 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02090 |
| 58398A | No. 3 clip (for lower floor cover) | 90467-14053 |
| 58398H | No. 1 floor under cover | 58398-02110 |
| 58398L | No. 4 clip (for lower floor cover) | 90561-13003 |
| 58791B | jack bracket | 58791-02020 |
