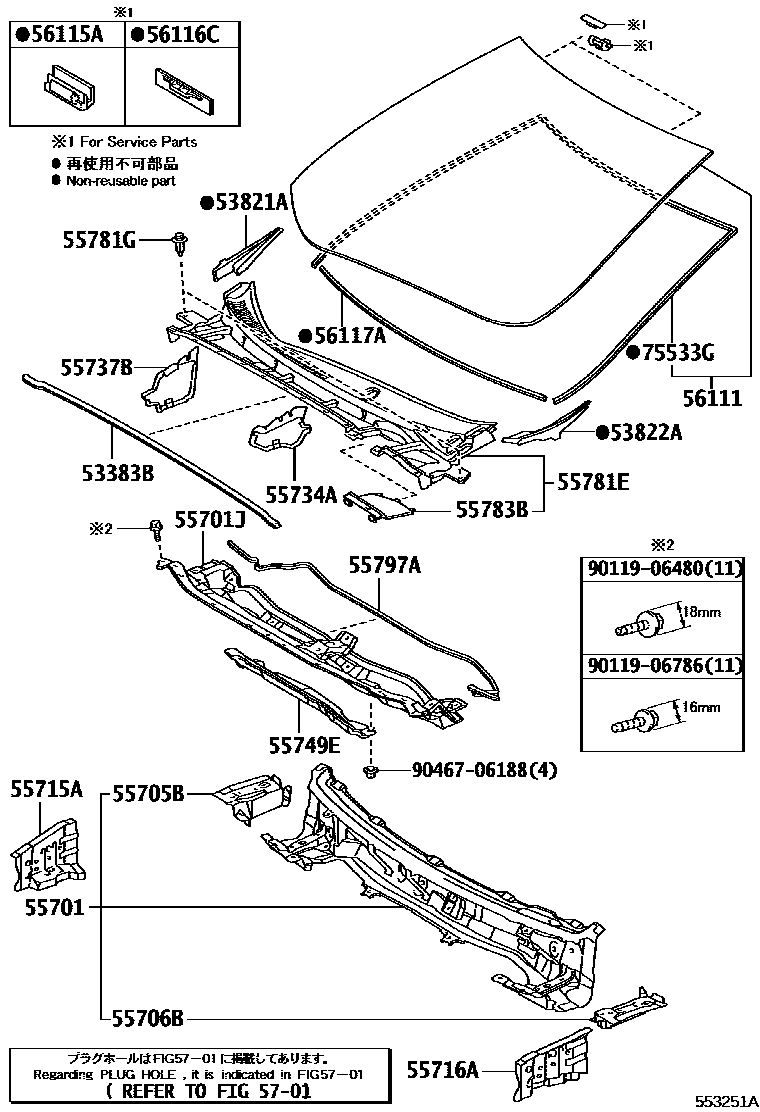

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02230 |
| 53821A | No. 1 right front side panel protector | 53823-02110 · 53823-02111 |
| 53822A | No. 1 left front side panel protector | 53824-02110 · 53824-02111 |
| 55701 | Front apron sub-assembly | 55700-02590 · 55700-02610 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-02440 · 55701-02460 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02170 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02170 |
| 55715A | From cowl upper cover to fender right stay | 55715-02050 |
| 55716A | From cowl upper cover to fender left stay | 55716-02050 |
| 55734A | Right waterproof cover | 55734-02310 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02180 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-02140 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-02660 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-02270 |
| 55797A | Front wall pumping device seal | 55797-02140 |
| 56111 | windshield | 56101-02F60 · 56101-02F70 · 56101-02F80 · 56101-02F90 · 56101-02G00 · 56101-02G40 · 56101-02G50 · 56101-02V50 · 56101-0Z370 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-02190 |
| 75533G | Windshield outer protective strip | 75531-02250 |
