Toyota COROLLA 仪表板和手套箱 — Figure 5501

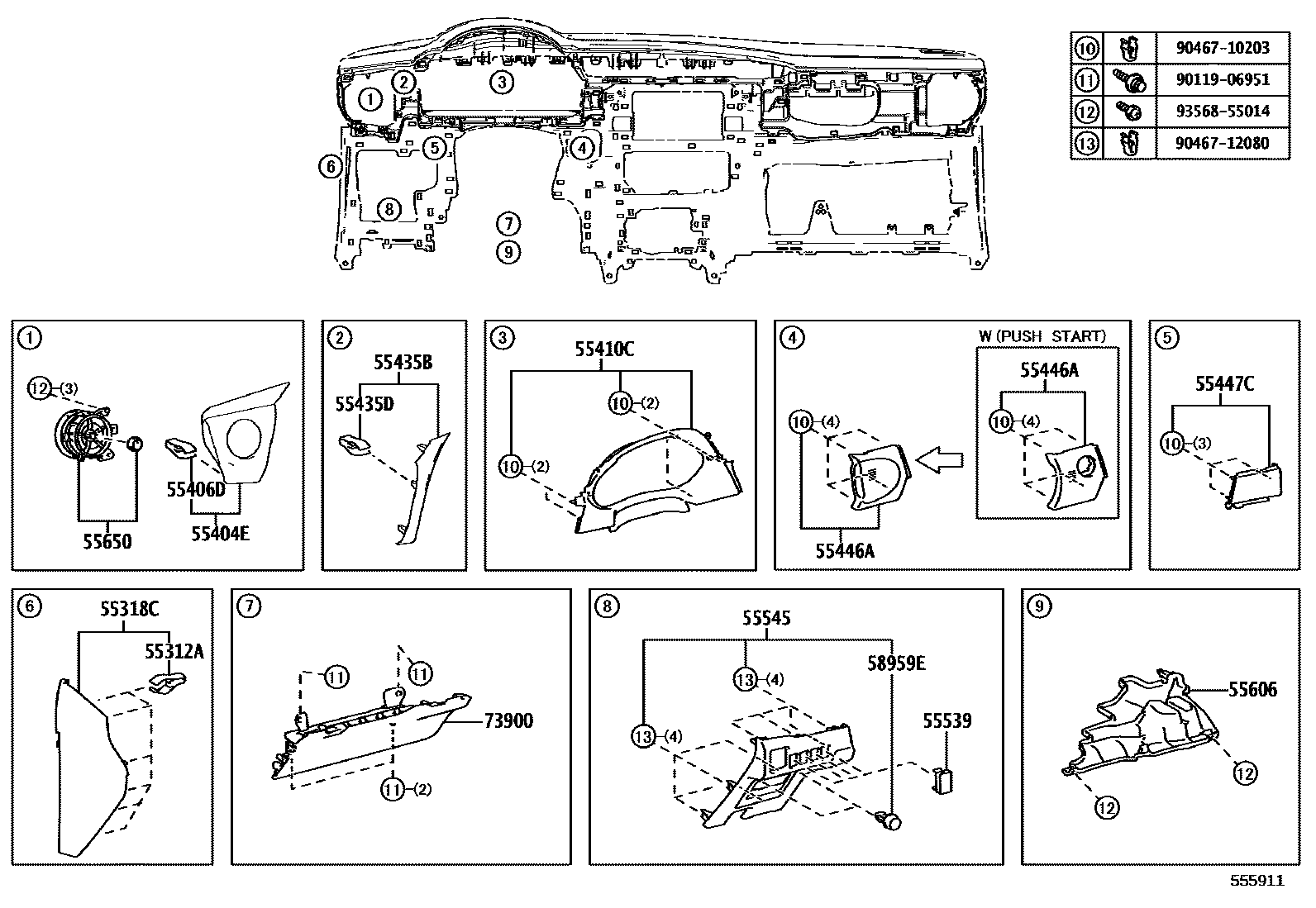

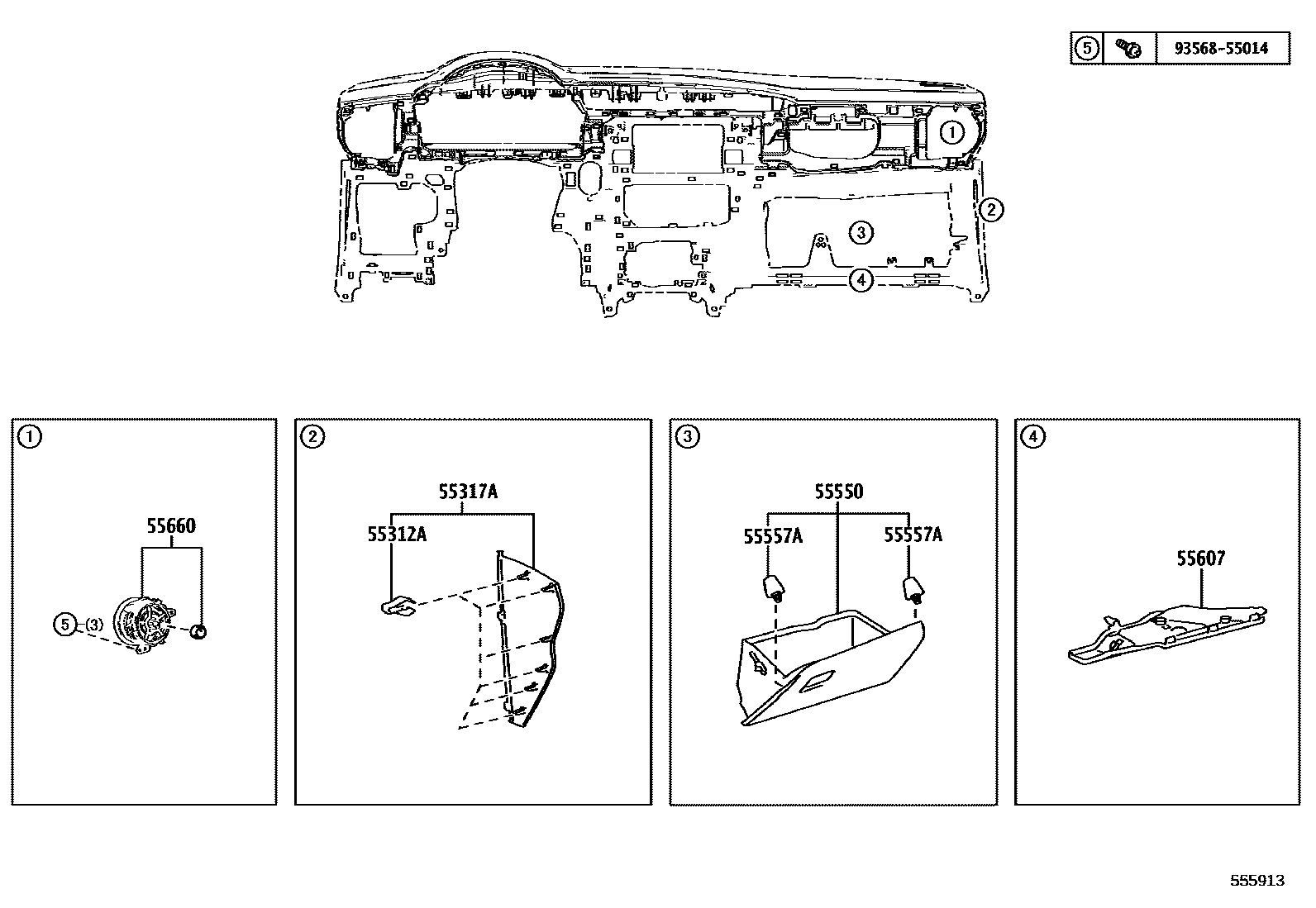

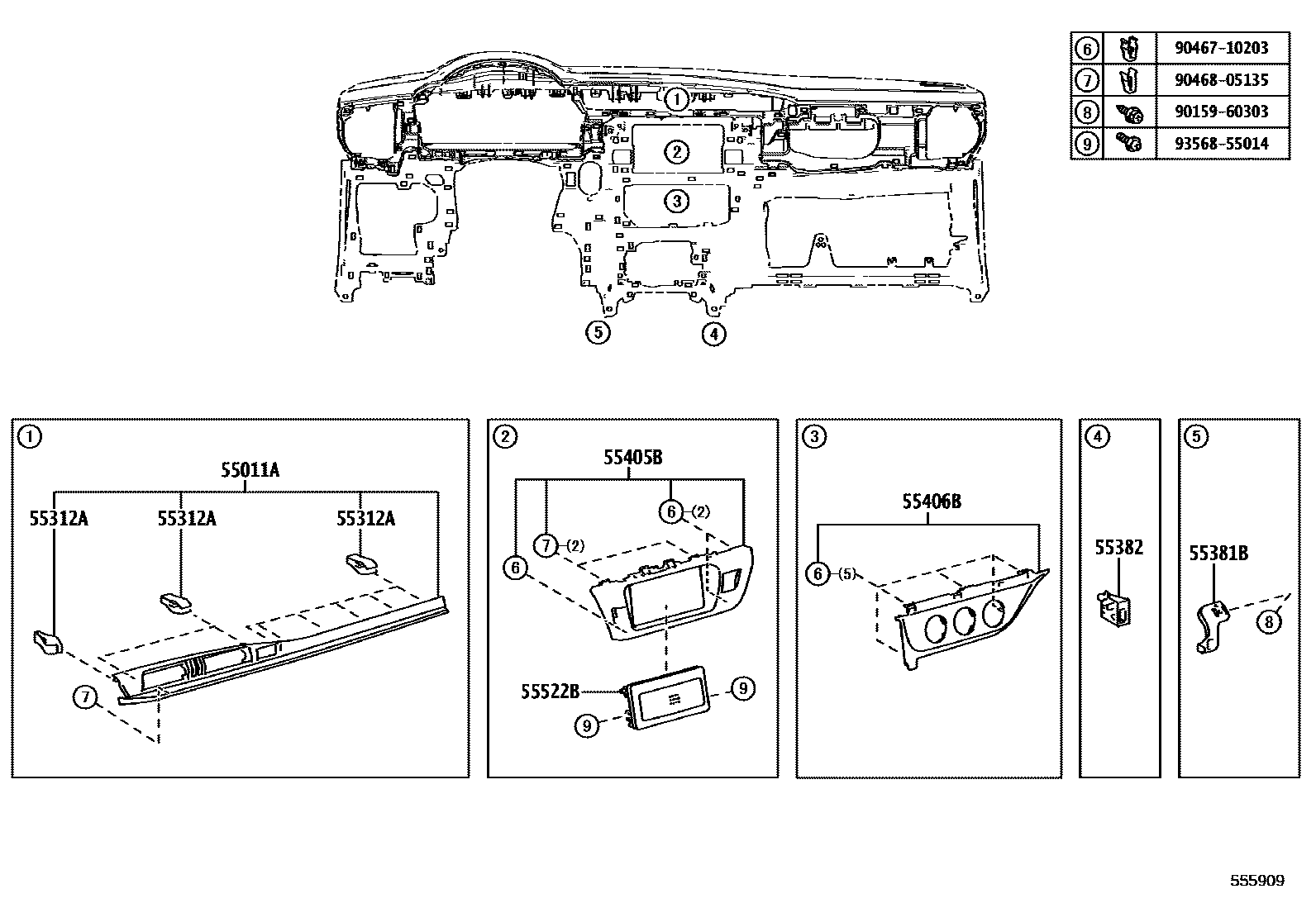

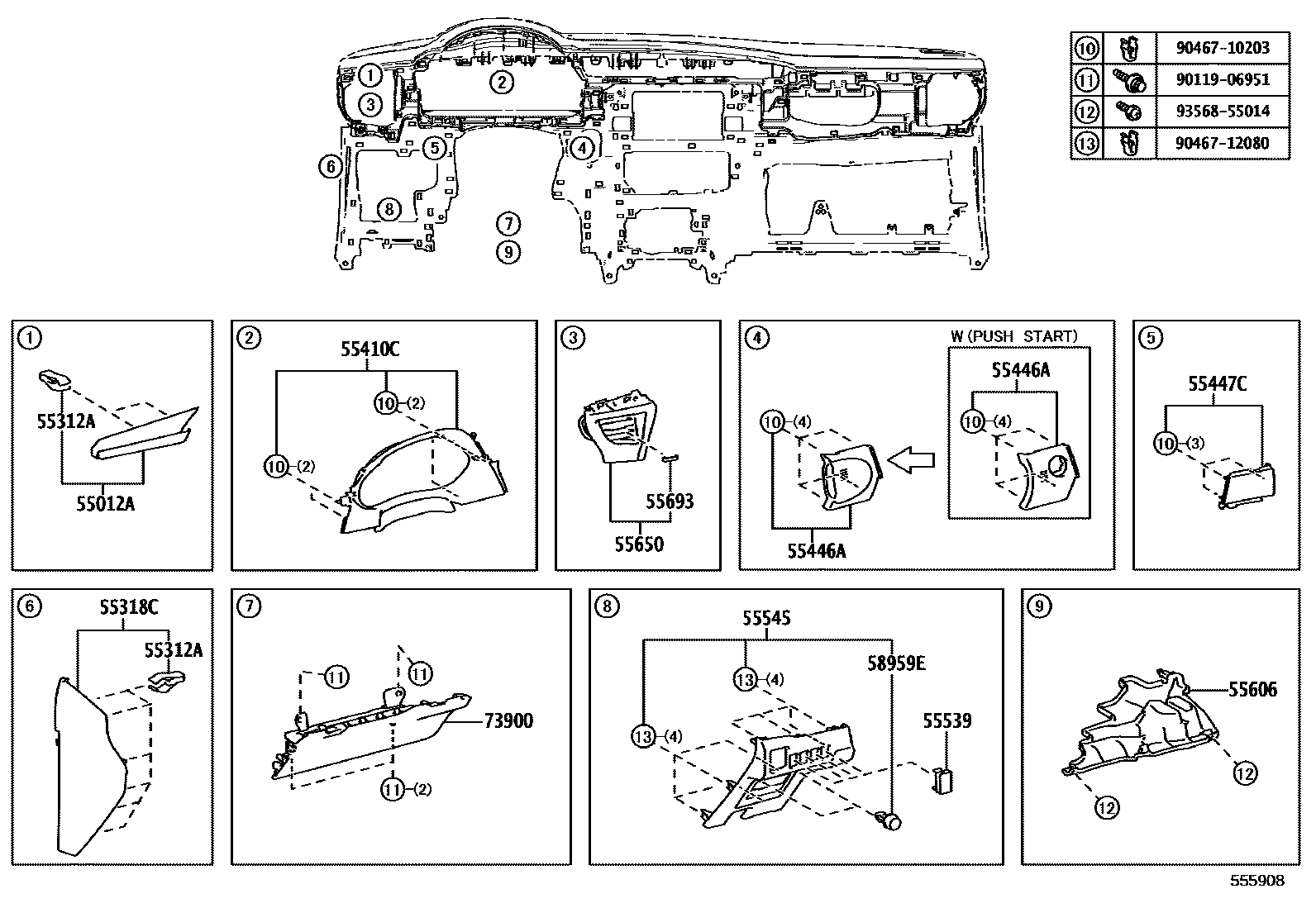

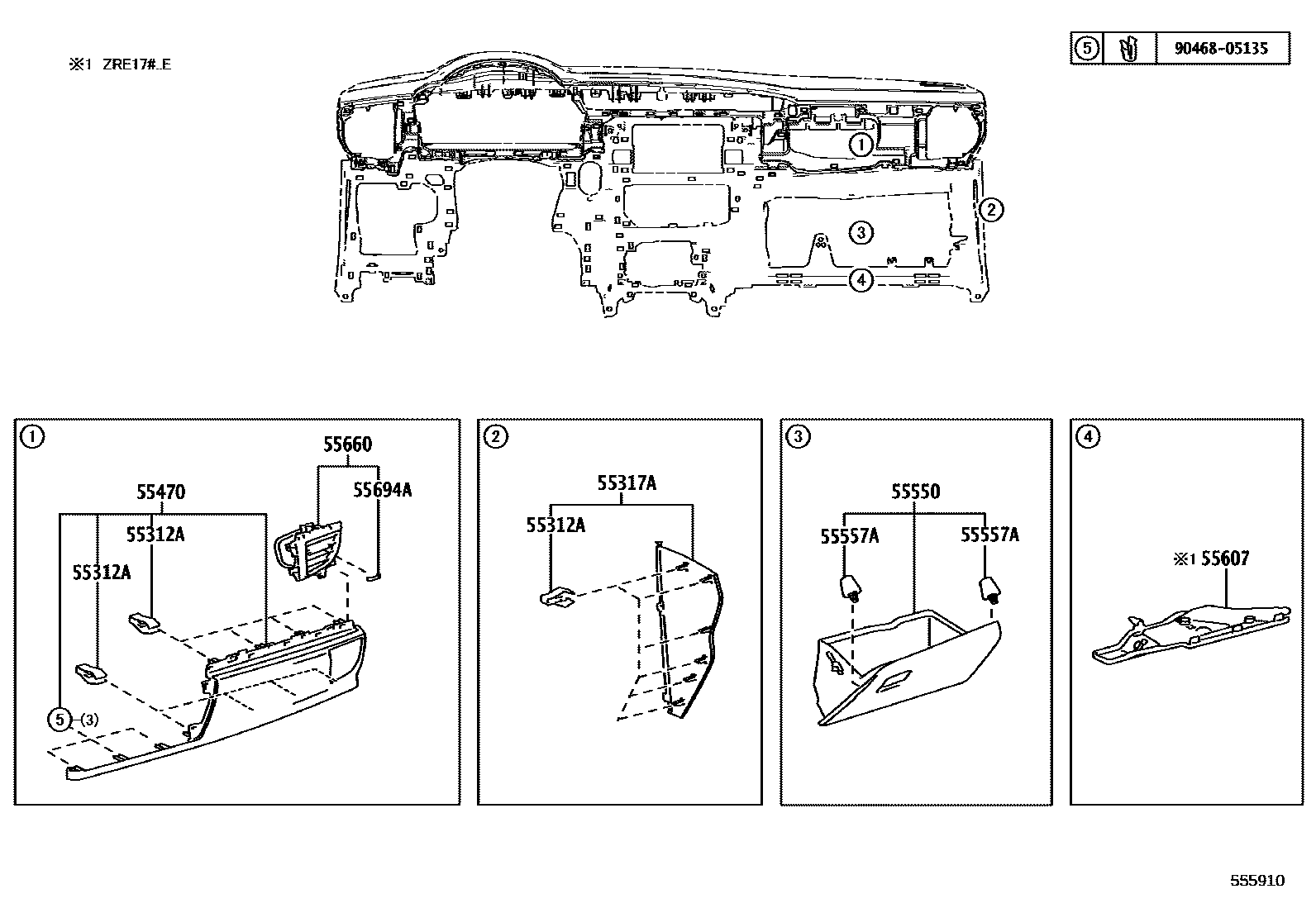

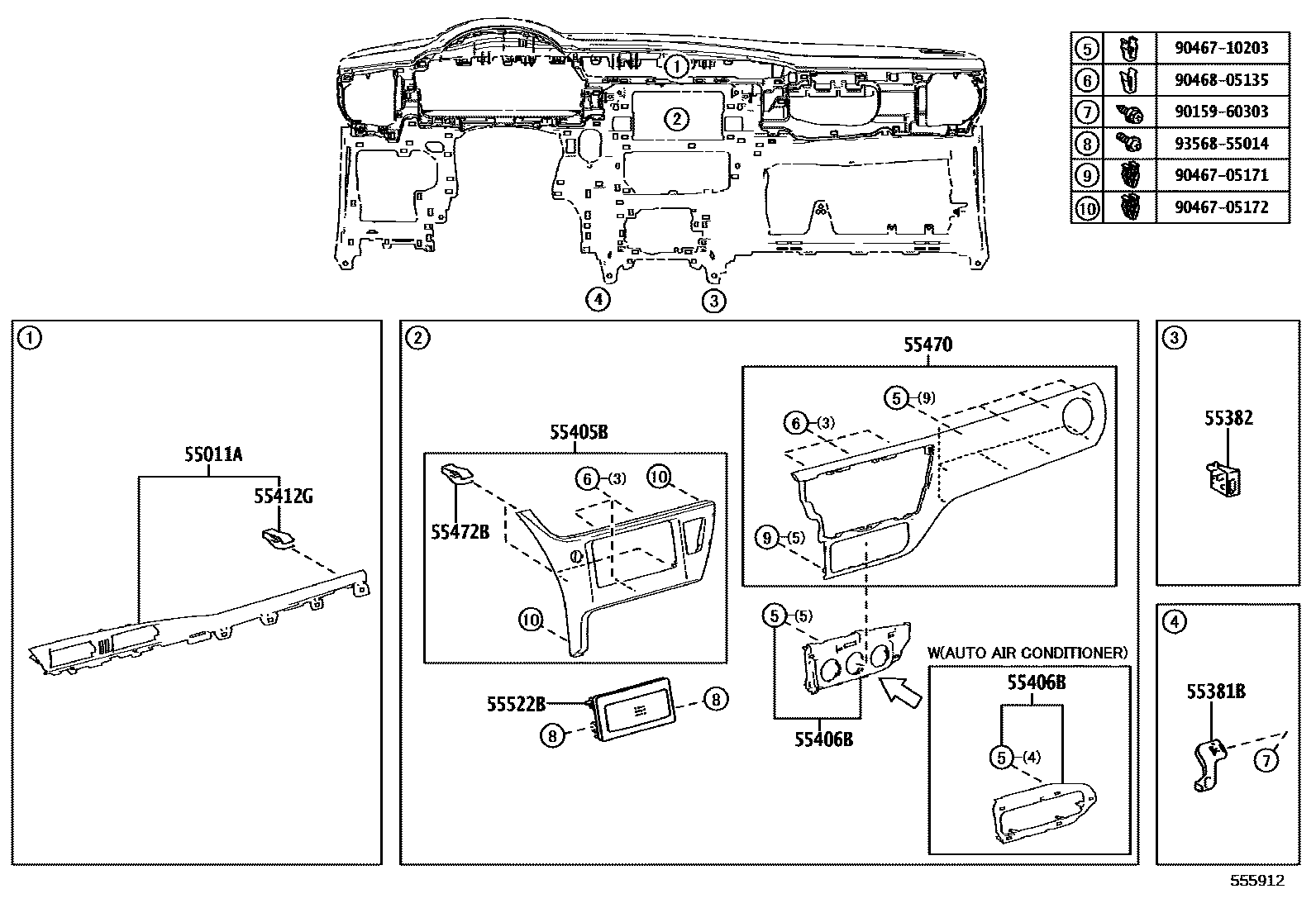

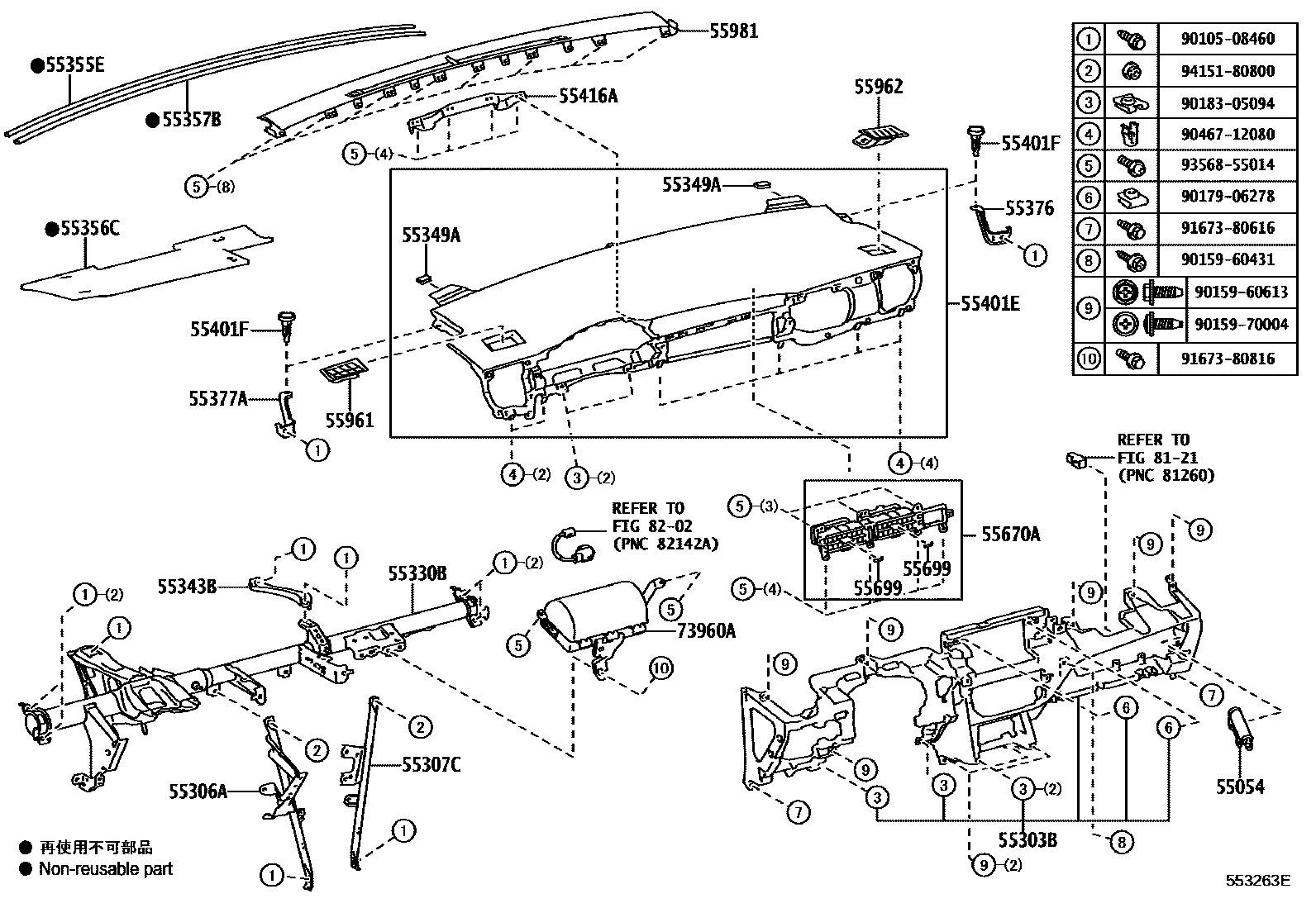

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 7 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55011A | No. 1 instrument panel trim sub-assembly | 55412-02680 |
| 55054 | Glove box cover stopper sub-assembly | 55054-35010 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02640 · 55306-02651 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02400 · 55307-02410 |
| 55330B | Instrument panel reinforcement assembly | 55330-02750 · 55330-02761 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02200 · 55343-02210 |
| 55349A | Dashboard cushion | 55349-02120 |
| 55355E | Dashboard cushion | 55355-02480 · 55355-02500 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02310 |
| 55357B | Dashboard No. 3 Cushion Pad | 55355-02490 · 55355-02510 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-02140 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-02130 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-02160 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-02130 |
| 55401F | Clip (for safety mat) | 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02C90 · 55405-02D00 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55468-02140 · 55468-02150 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02230 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02240 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02240 |
| 55670A | Instrument panel central air register assembly | 55670-02390 · 55670-02410 · 55670-02750 · 55670-02760 · 55670-02810 · 55670-02A70 · 55670-02A80 |
| 55693 | No. 1 control button protective piece | 55693-02290 |
| 55694A | No. 2 control button protective piece | 55693-02290 |
| 55699 | Dashboard air register control button | 55693-02110 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02221 · 73960-02222 |
