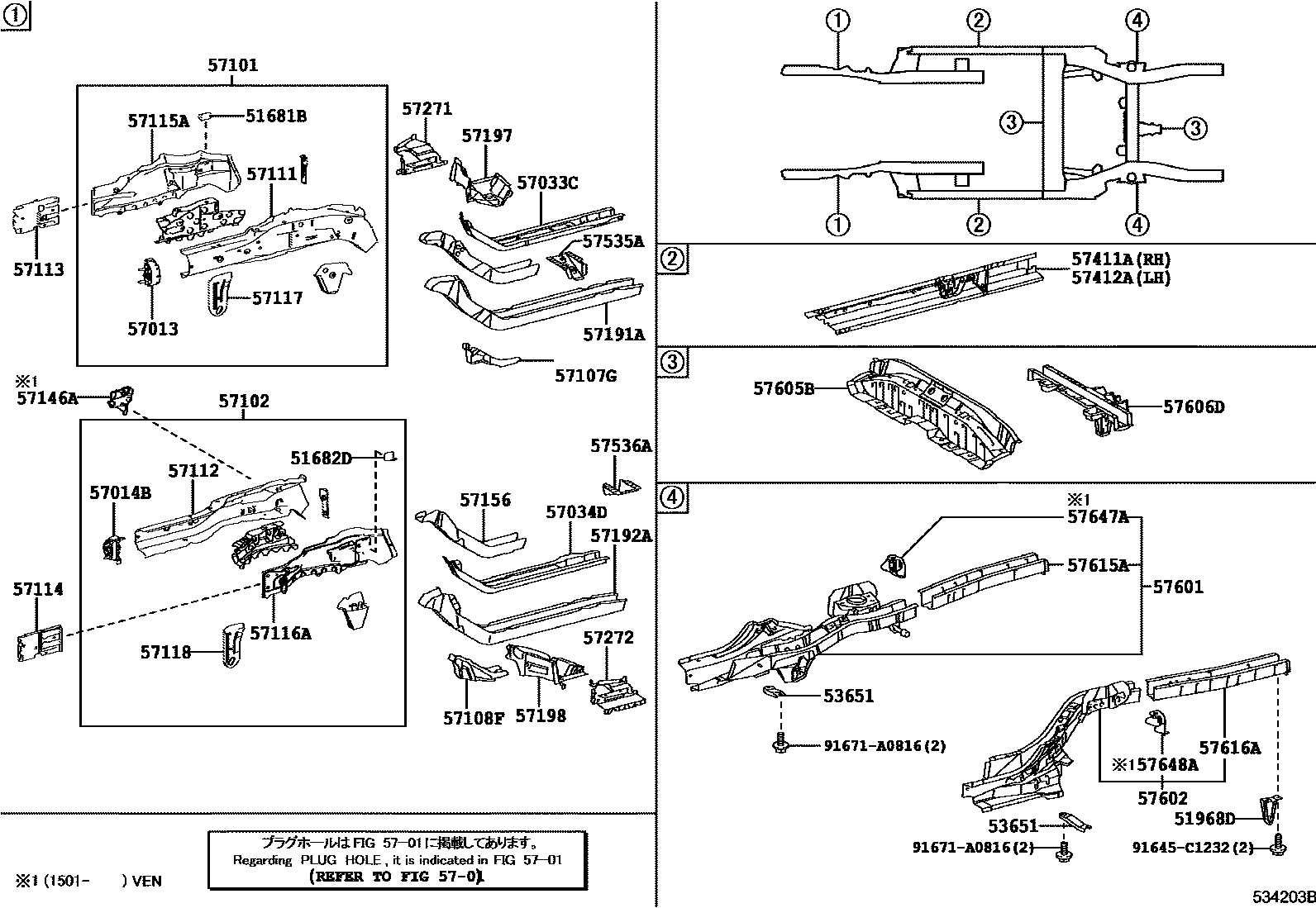

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-02090 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-02080 |
| 51968D | Left rear transport hook | 51968-12170 |
| 53651 | Rear floor longitudinal beam bracket | 53651-02090 |
| 57013 | Right front longitudinal beam bracket sub-assembly | 57013-02130 |
| 57014B | Left front longitudinal beam bracket sub-assembly | 57014-02120 |
| 57033C | No. 3 right front longitudinal beam reinforcement sub-assembly | 57033-13010 |
| 57034D | No. 3 left front longitudinal beam reinforcement sub-assembly | 57034-02120 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02922 · 57101-02925 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-02937 · 57102-02941 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-02070 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-02070 |
| 57111 | Right front longitudinal beam | 57111-02180 · 57111-02181 |
| 57112 | Left front longitudinal beam | 57112-02150 · 57112-02151 |
| 57113 | Right front longitudinal beam extension | 57113-02130 |
| 57114 | Left front longitudinal beam extension | 57114-02150 |
| 57115A | Right front longitudinal beam outer panel | 57115-12080 |
| 57116A | Left front longitudinal beam outer panel | 57116-12080 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-02050 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-02030 |
| 57146A | Left front longitudinal beam rear reinforcement | 57146-02090 |
| 57156 | No. 3 left front longitudinal beam reinforcement | 57156-02050 |
| 57191A | Right rear longitudinal member inside front floor | 57191-13010 |
| 57192A | Left rear longitudinal member inside front floor | 57192-13010 |
| 57197 | Right front torsion box section piece | 57197-02110 |
| 57198 | Left front anti-torsion box section piece | 57198-02110 |
| 57271 | Steering housing support beam right extension | 57271-02140 |
| 57272 | Steering casing support beam left extension | 57272-02110 |
| 57411A | Floor right inner longitudinal beam | 57401-02290 |
| 57412A | Floor left inner longitudinal beam | 57402-02290 |
| 57535A | Front floor right bracket | 57535-02050 |
| 57536A | Front floor left bracket | 57536-02050 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02460 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02540 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02260 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-02290 |
| 57615A | Rear floor right rear longitudinal member | 57615-12905 |
| 57616A | Rear floor left rear longitudinal member | 57616-02917 · 57616-12909 |
| 57647A | Rear floor right longitudinal beam external reinforcement | 57647-02040 |
| 57648A | Rear floor left longitudinal beam external reinforcement | 57648-02040 |
