Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

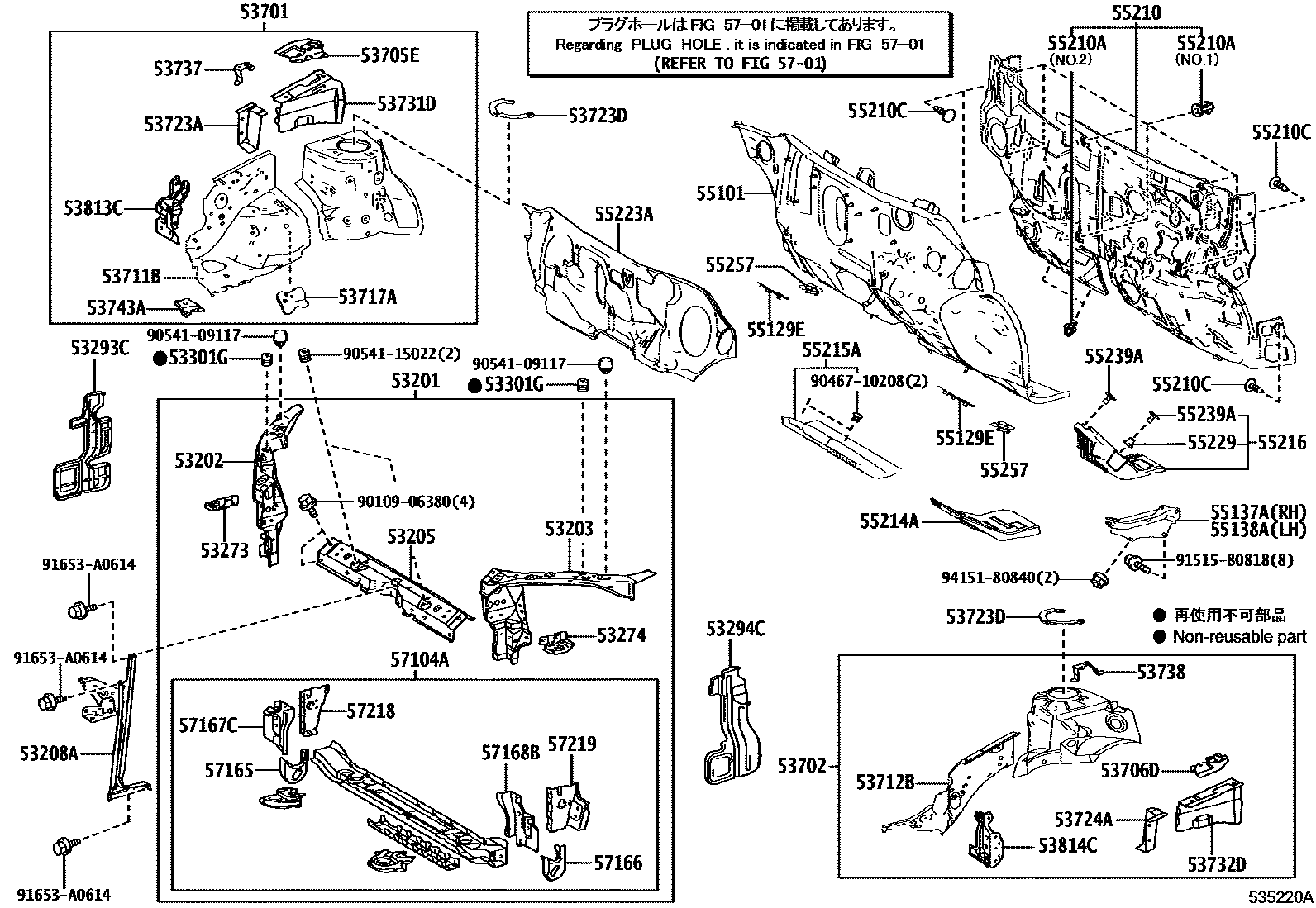

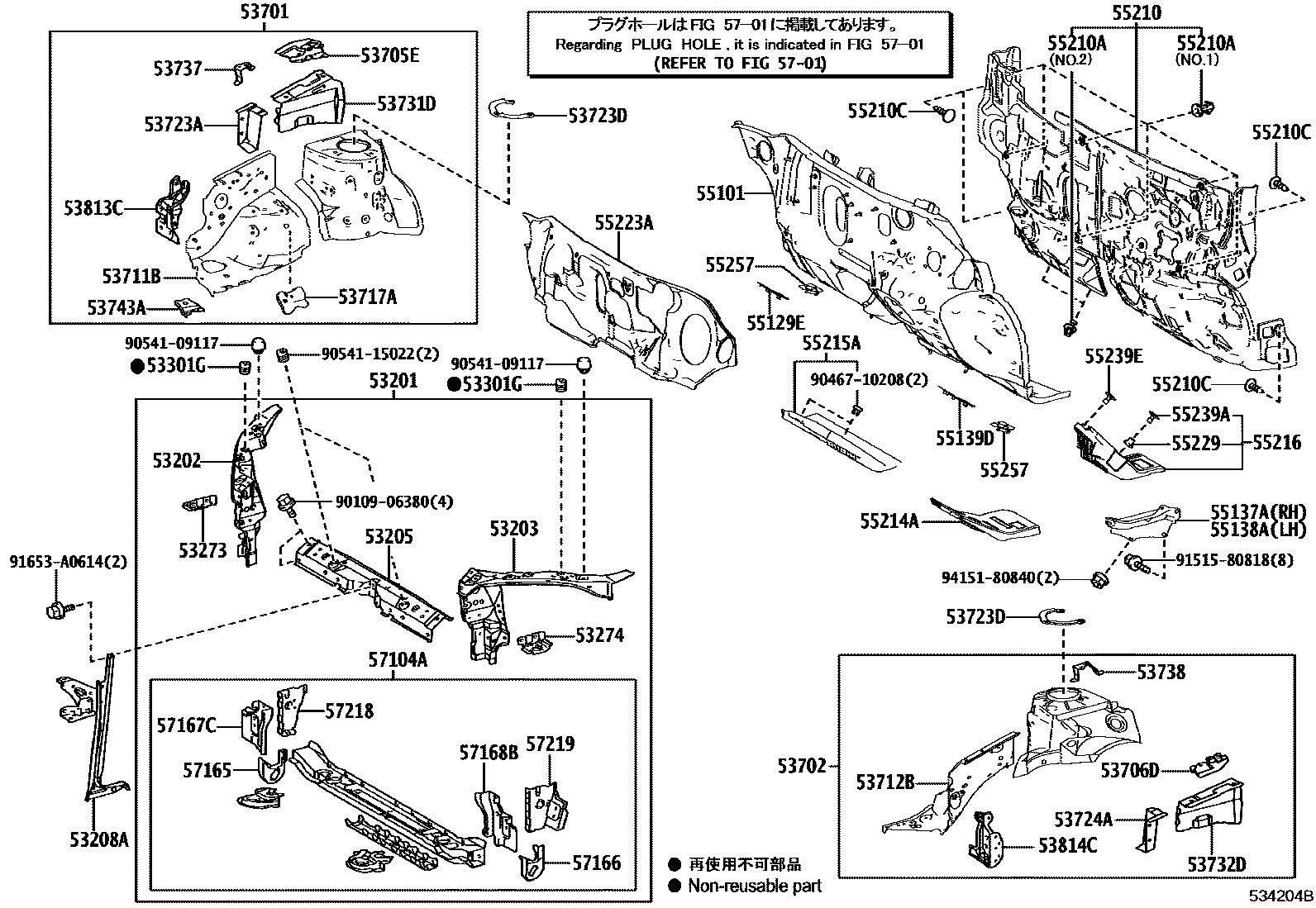

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-02390 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02200 |
| 53203 | Radiator left bracket sub-assembly | 53203-02200 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02260 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02220 · 53208-02240 |
| 53273 | Front bumper arm right mounting bracket | 53273-02200 |
| 53274 | Front bumper arm left mounting bracket | 53274-02190 |
| 53293C | Radiator right baffle | 53293-02200 |
| 53294C | Radiator left baffle | 53294-02260 |
| 53301G | engine cover cushion | 53384-50010 |
| 53701 | Right front fender fender sub-assembly | 53701-02360 |
| 53702 | Left front fender fender sub-assembly | 53702-02280 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-12020 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-12040 |
| 53711B | Right front fender front fender | 53711-02110 |
| 53712B | Left front fender front fender | 53712-02130 |
| 53717A | fender fender | 53717-02080 |
| 53723A | Front spring bracket right side reinforcement | 53723-12080 |
| 53723D | Front spring support reinforcement | 53723-12110 |
| 53724A | Front spring bracket left reinforcement | 53724-12070 |
| 53731D | Right front fender to cowl side upper beam | 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-12140 |
| 53737 | Right front fender to front wall side sill | 53737-02160 |
| 53738 | Left front fender to front wall side sill | 53738-02130 |
| 53743A | Right front fender fender front reinforcement | 53743-02030 |
| 53813C | Right front fender extension | 53803-02070 |
| 53814C | Left front fender extension | 53814-02140 |
| 55101 | Front apron sub-assembly | 55101-02E70 · 55101-02E80 |
| 55129E | Right front panel hole cover | 55129-02070 |
| 55137A | Right side bracket (front wall to frame) | 55137-02080 |
| 55138A | Left side bracket (front wall to frame) | 55138-02070 |
| 55139D | Left front panel hole cover | 55139-02060 |
| 55210 | Front wall insulation pad assembly | 55210-02550 · 55210-02551 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-12110 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-02090 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-02150 |
| 55223A | Front wall outer heat insulation pad | 55223-02241 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-48010 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-48020 |
| 55239E | No. 3 insulation pad for front wall panel | 55239-48020 |
| 55257 | cowl opening cover | 55257-02040 |
| 57104A | Front cross member sub-assembly | 57104-02290 |
| 57165 | Front cross member lower right reinforcement | 57165-02100 |
| 57166 | Front cross member lower left reinforcement | 57166-02020 |
| 57167C | Front cross member right corner panel | 57167-02110 |
| 57168B | Front cross member left corner panel | 57168-02110 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-12010 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-12010 |
