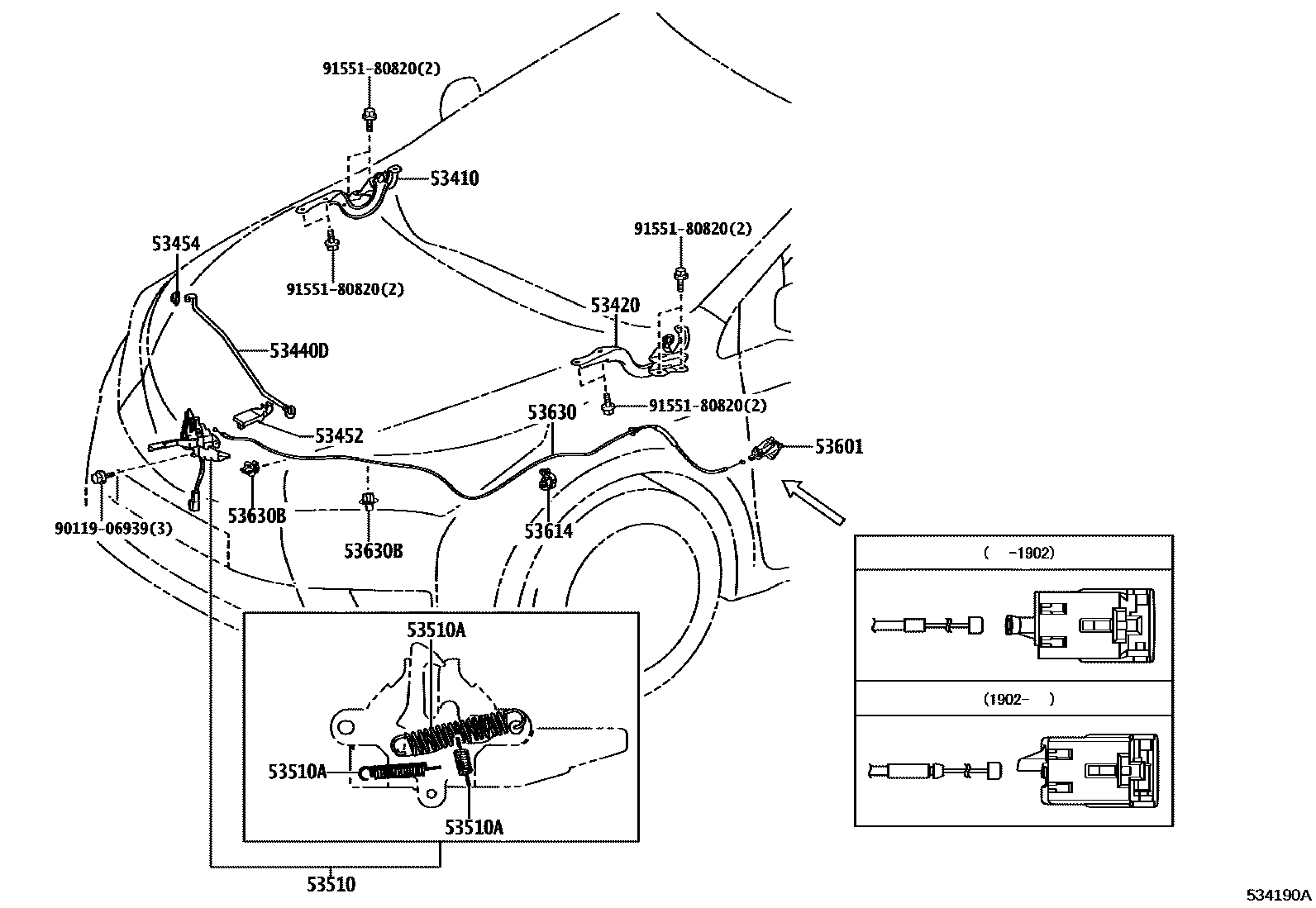

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02400 · 53410-02430 |
| 53420 | Engine cover left hinge assembly | 53420-02400 · 53420-02430 |
| 53440D | Engine cover support rod assembly | 53440-02230 · 53440-02260 |
| 53452 | Engine cover stay rod fixing | 53452-02180 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53510 | Engine cover lock assembly | 53510-02700 |
| 53510A | Tension spring (for hood lock) | 90080-50413 · 90080-50414 · 90080-50416 |
| 53614 | Engine hood lock control cable clip | 82711-1E350 |
| 53630 | Engine hood lock control cable assembly | 53630-02400 · 53630-02401 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
