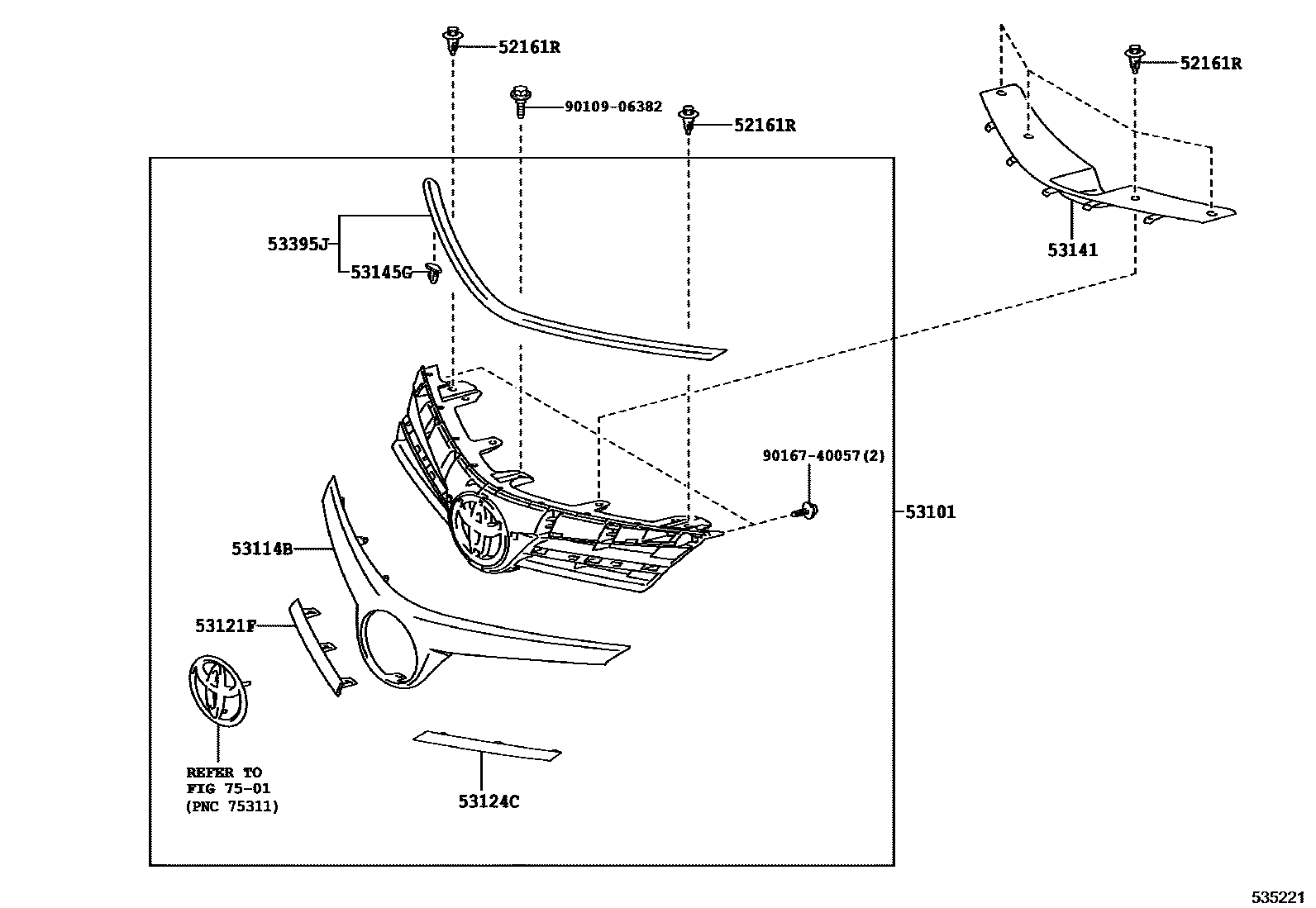

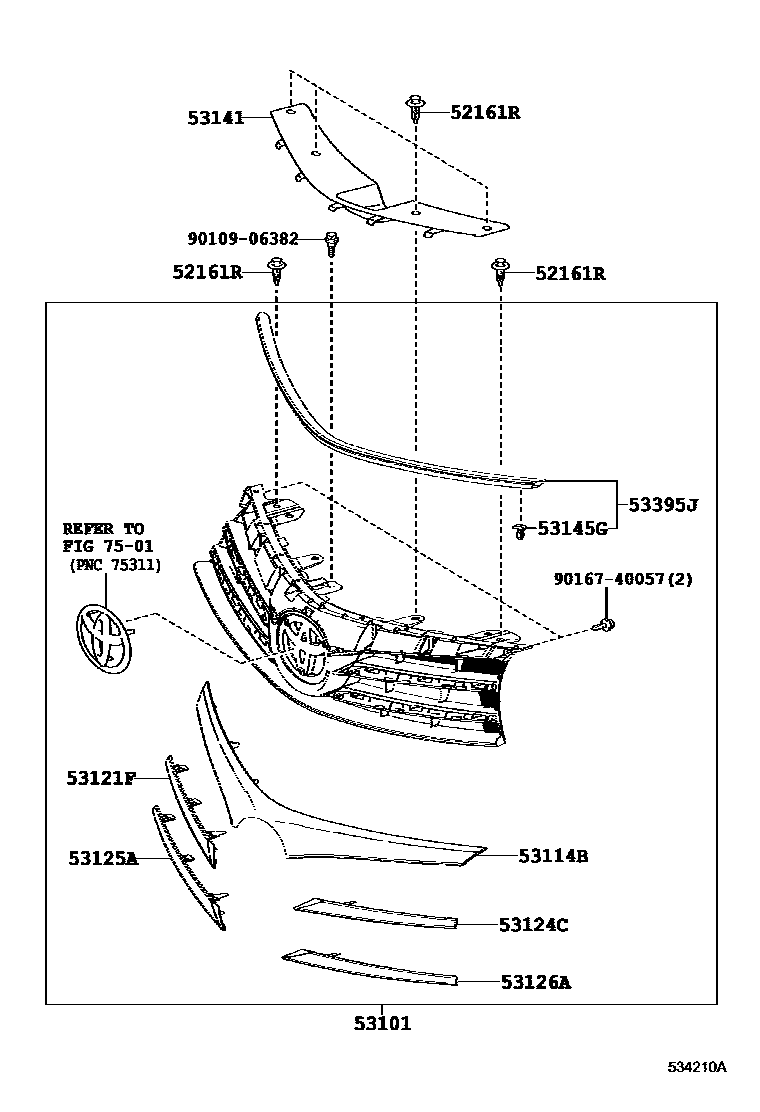

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53100-02680 · 53100-02C40 · 53100-02C50 |
| 53114B | Upper radiator grille | 53114-02320 · 53114-02480 |
| 53121F | Radiator grille upper right protective strip | 53121-02250 · 53121-02380 · 53121-02420 |
| 53124C | Radiator grille upper left protective strip | 53124-02240 · 53124-02370 · 53124-02410 |
| 53125A | Radiator grille right center protective strip | 53125-02100 |
| 53126A | Radiator grille left middle protective strip | 53126-02130 |
| 53141 | radiator cap | 53141-02100 |
| 53145G | Radiator grille clip | 53145-60030 |
| 53395J | Engine cover to front end plate seal | 53395-02130 |
