Toyota COROLLA 后保险杠及附件 — Figure 5202

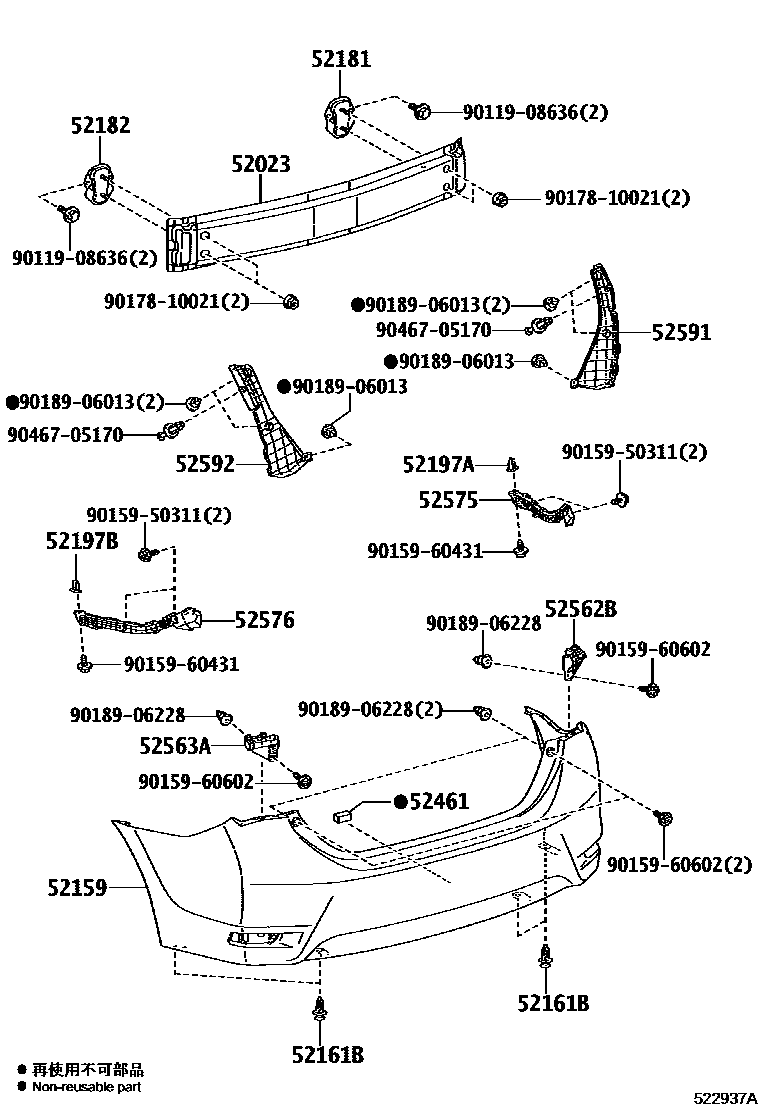

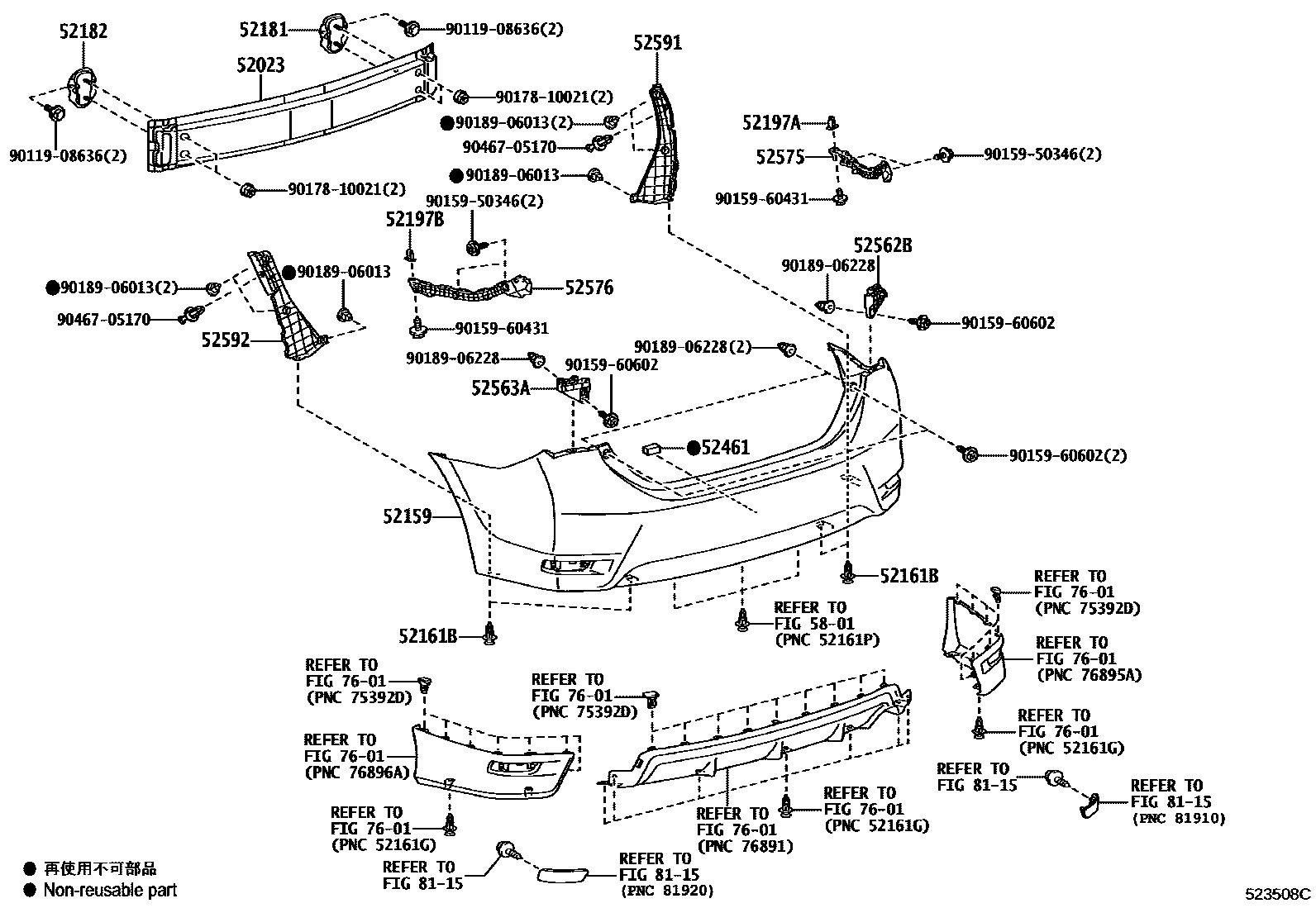

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02200 |
| 52159 | rear bumper cover | 52159-0Z915 · 52159-0Z941 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52181 | Rear bumper right arm | 52181-02200 |
| 52182 | Rear bumper left arm | 52182-02170 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52197B | Rear bumper left seal support | 52197-22020 |
| 52461 | Rear bumper center lining | 52462-02210 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02260 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02260 |
| 52575 | Rear bumper right side fixing bracket | 52575-02150 |
| 52576 | Rear bumper left side fixing bracket | 52576-02150 |
| 52591 | Rear bumper right seal | 52591-02310 · 52591-02311 |
| 52592 | Rear bumper left seal | 52592-02310 · 52592-02311 |
