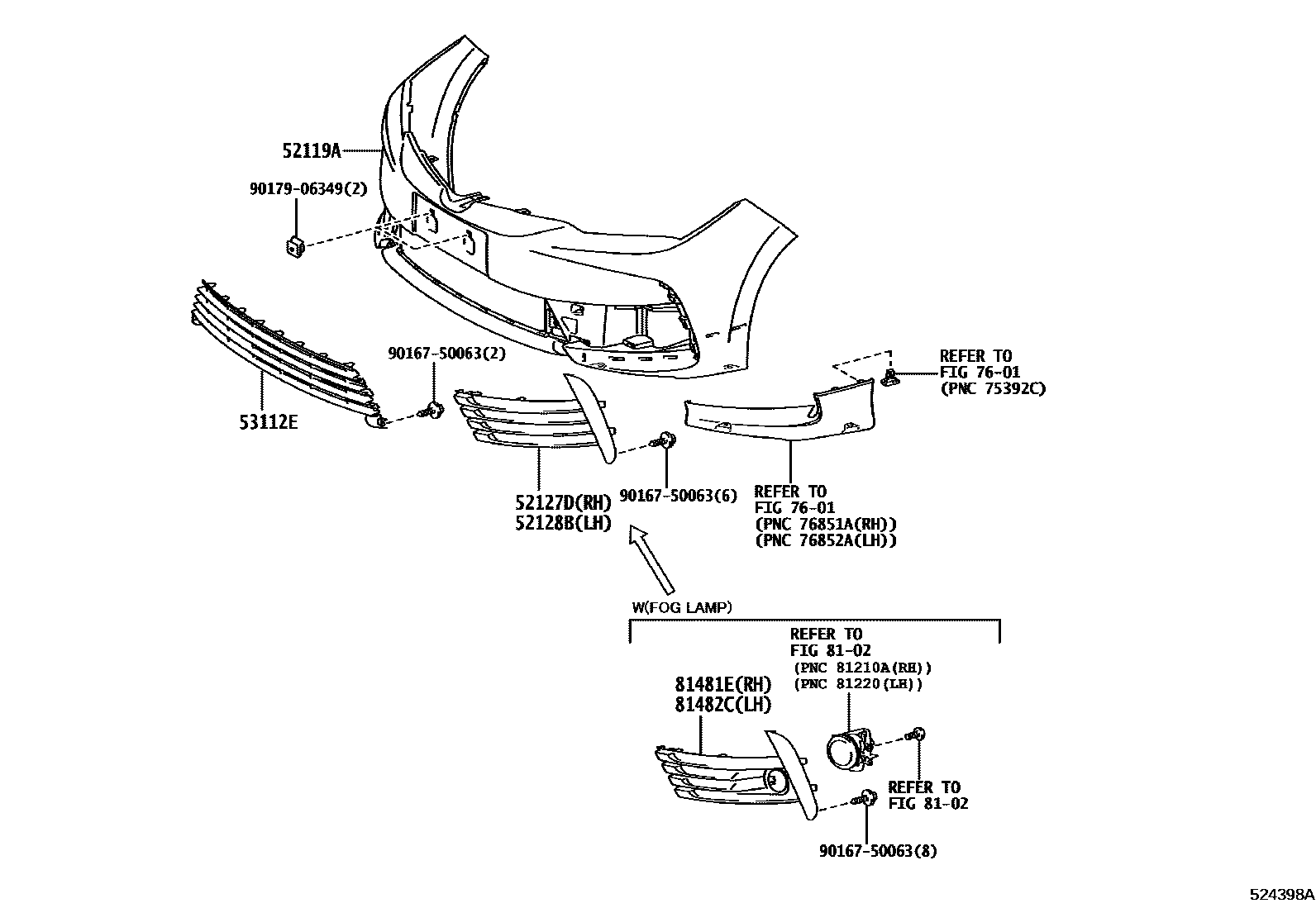

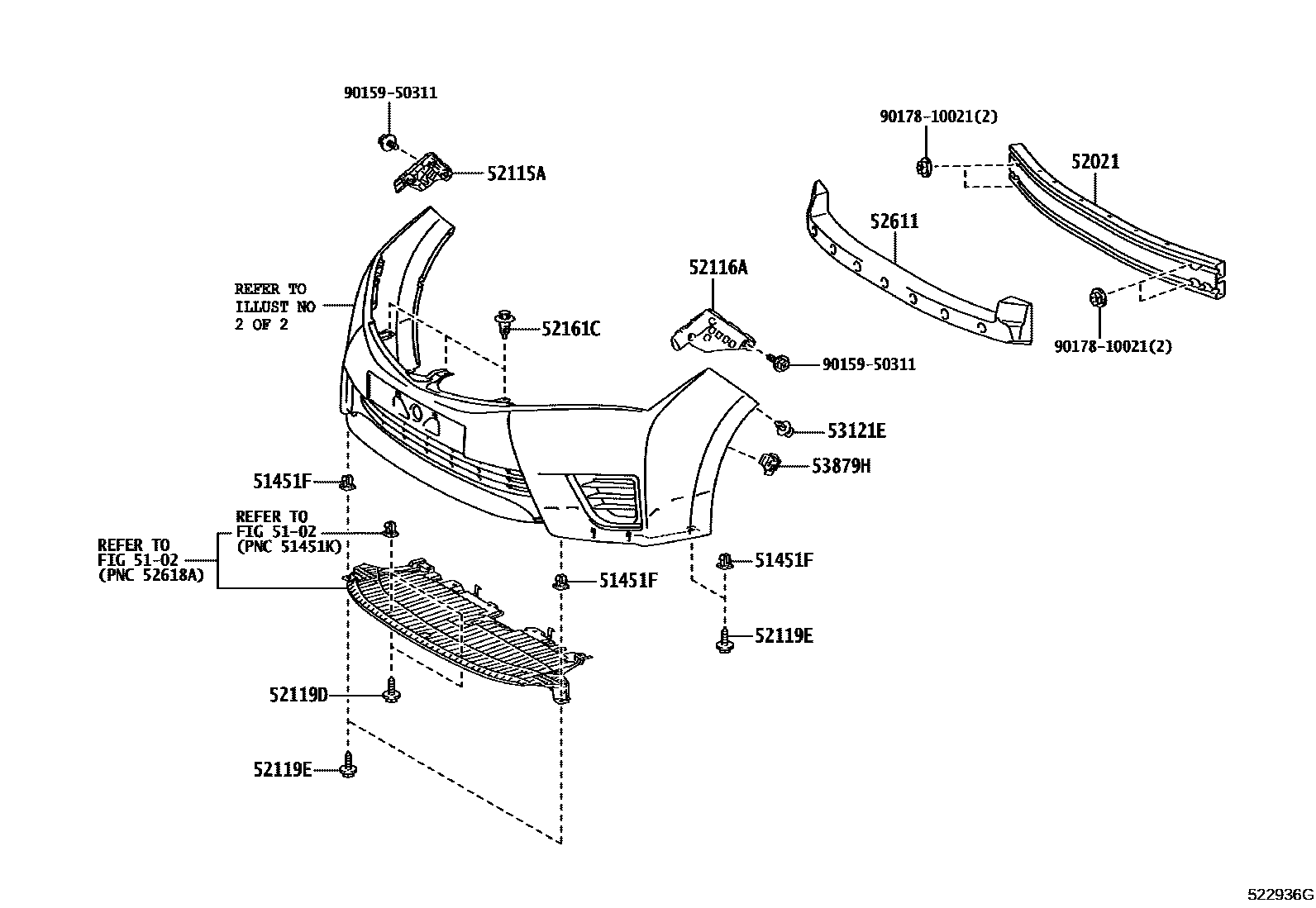

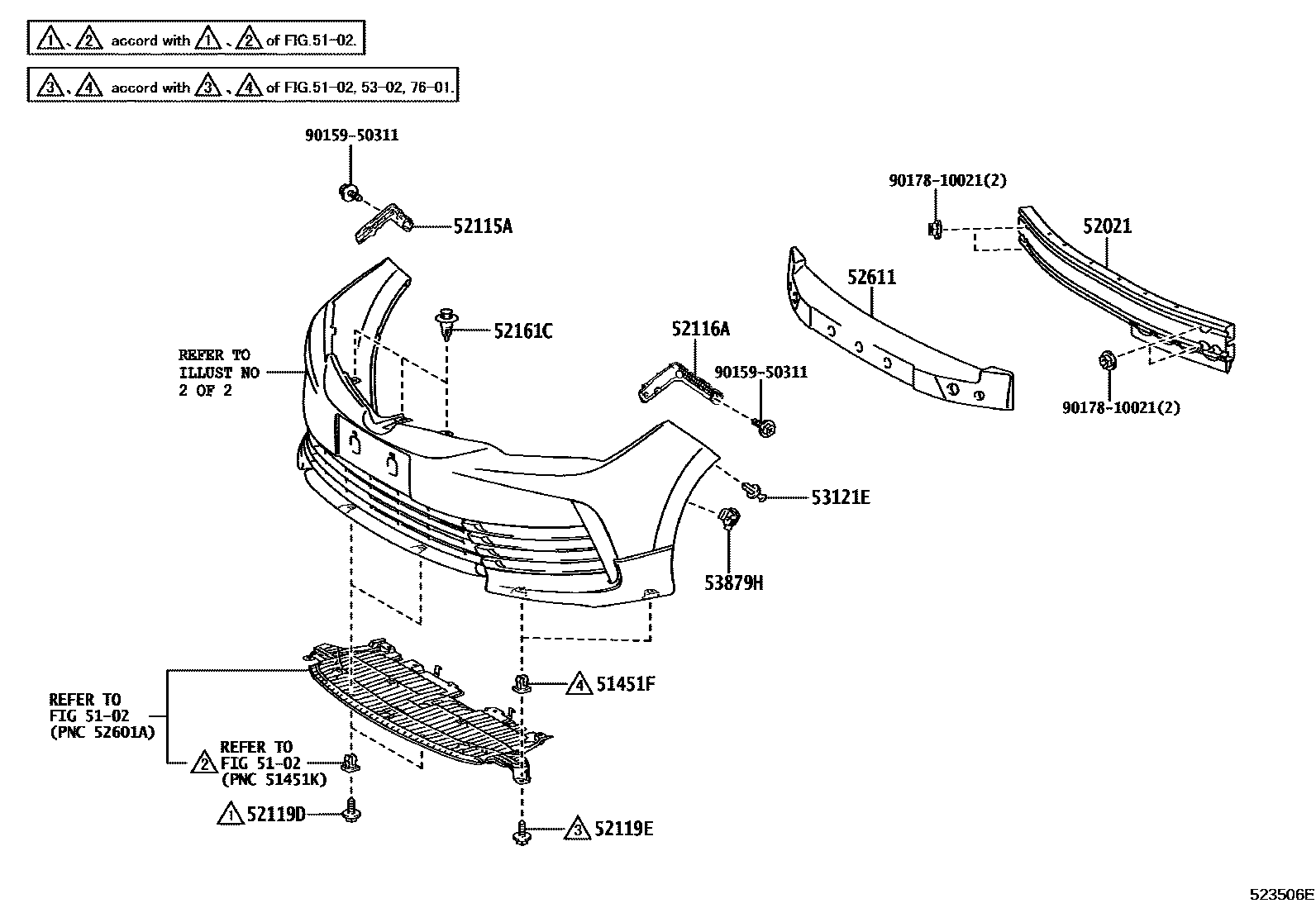

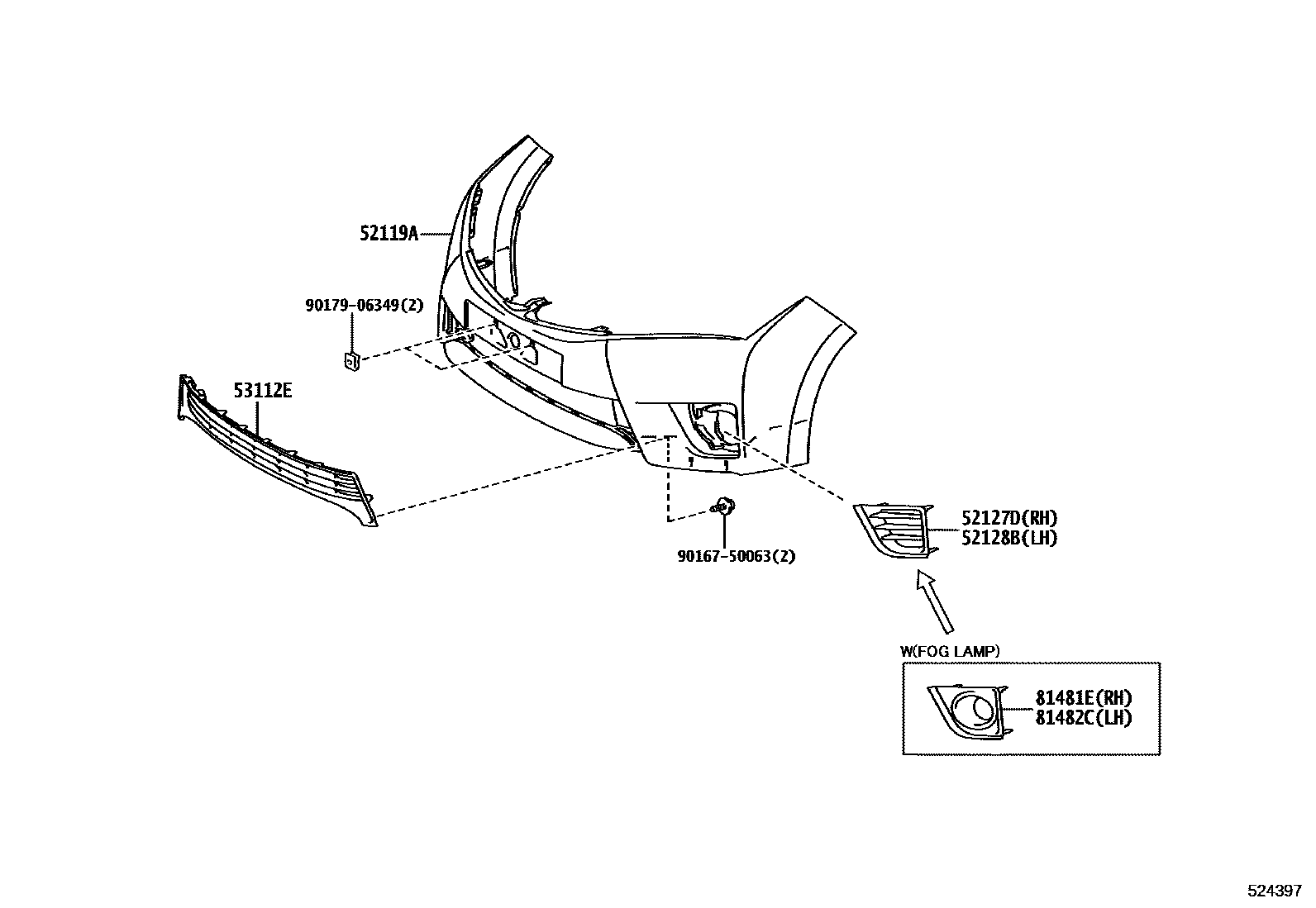

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Gasket No. 1 | 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-02250 · 52021-02270 |
| 52115A | Front bumper right side bracket | 52115-02280 · 52115-02450 |
| 52116A | Front bumper left bracket | 52116-02280 · 52116-02430 |
| 52119A | front bumper cover | 52119-0Z948 · 52119-F2901 · 52119-F2902 |
| 52119D | Screw No. 1 | 90159-60488 |
| 52119E | No. 2 screw | 90159-60488 |
| 52127D | Front bumper right hole cover | 81481-02460 · 81481-02810 |
| 52128B | Front bumper left hole cover | 81482-02450 · 81482-02800 |
| 52161C | front bumper insert | 52161-16010 |
| 52611 | front bumper energy absorber | 52611-02340 · 52611-02470 |
| 53112E | No. 1 radiator lower grille | 53112-02530 · 53112-02870 · 53112-02880 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-05170 |
| 53879H | Front fender lining fixing parts | 53879-50020 · 53879-58010 |
| 81481E | Right fog light cover | 81481-02470 · 81481-02820 |
| 81482C | Left fog light cover | 81482-02460 · 81482-02810 |
