Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

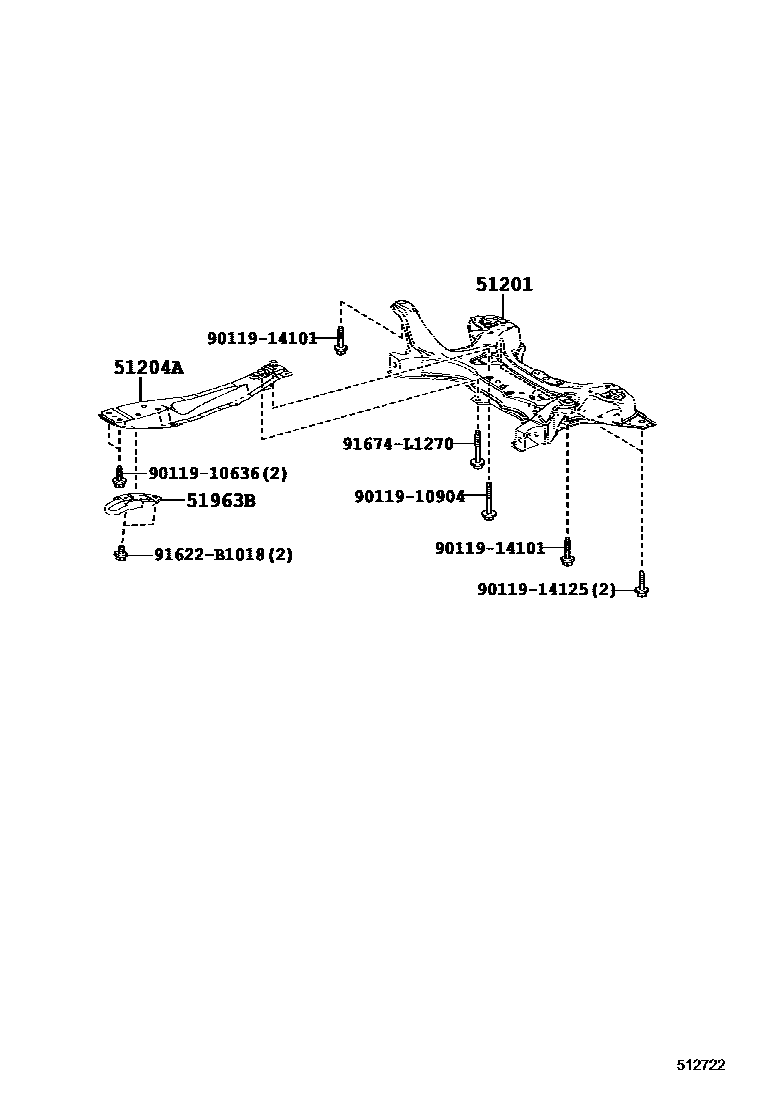

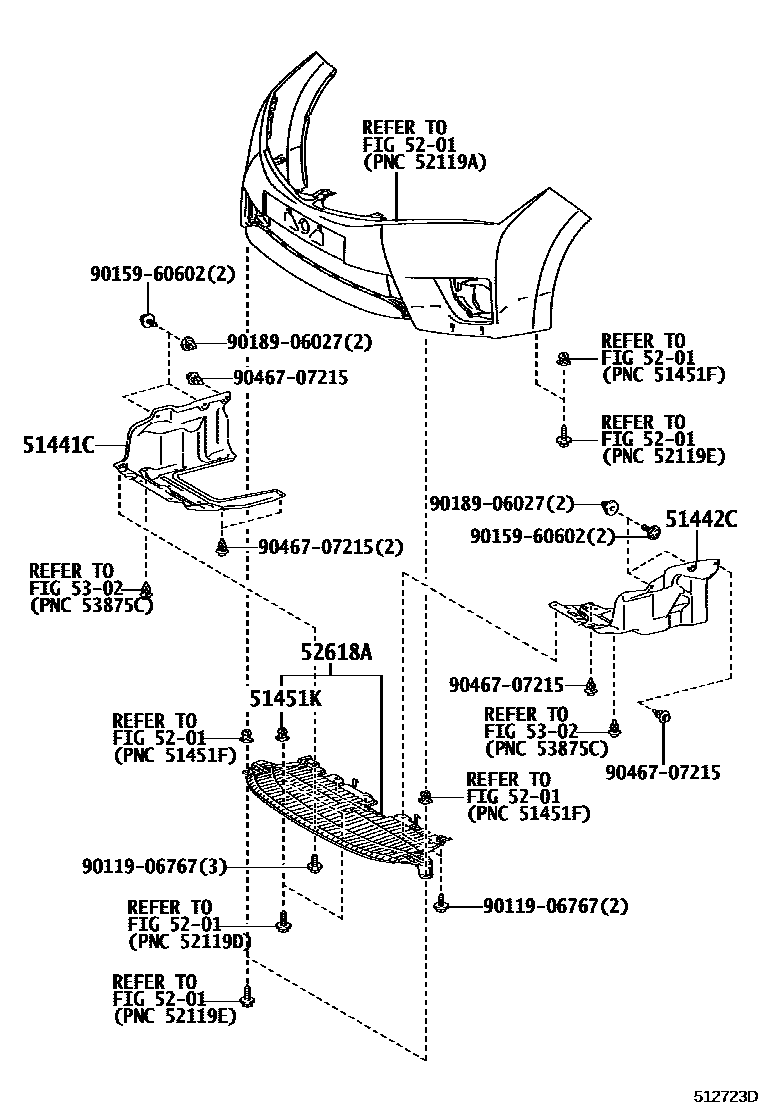

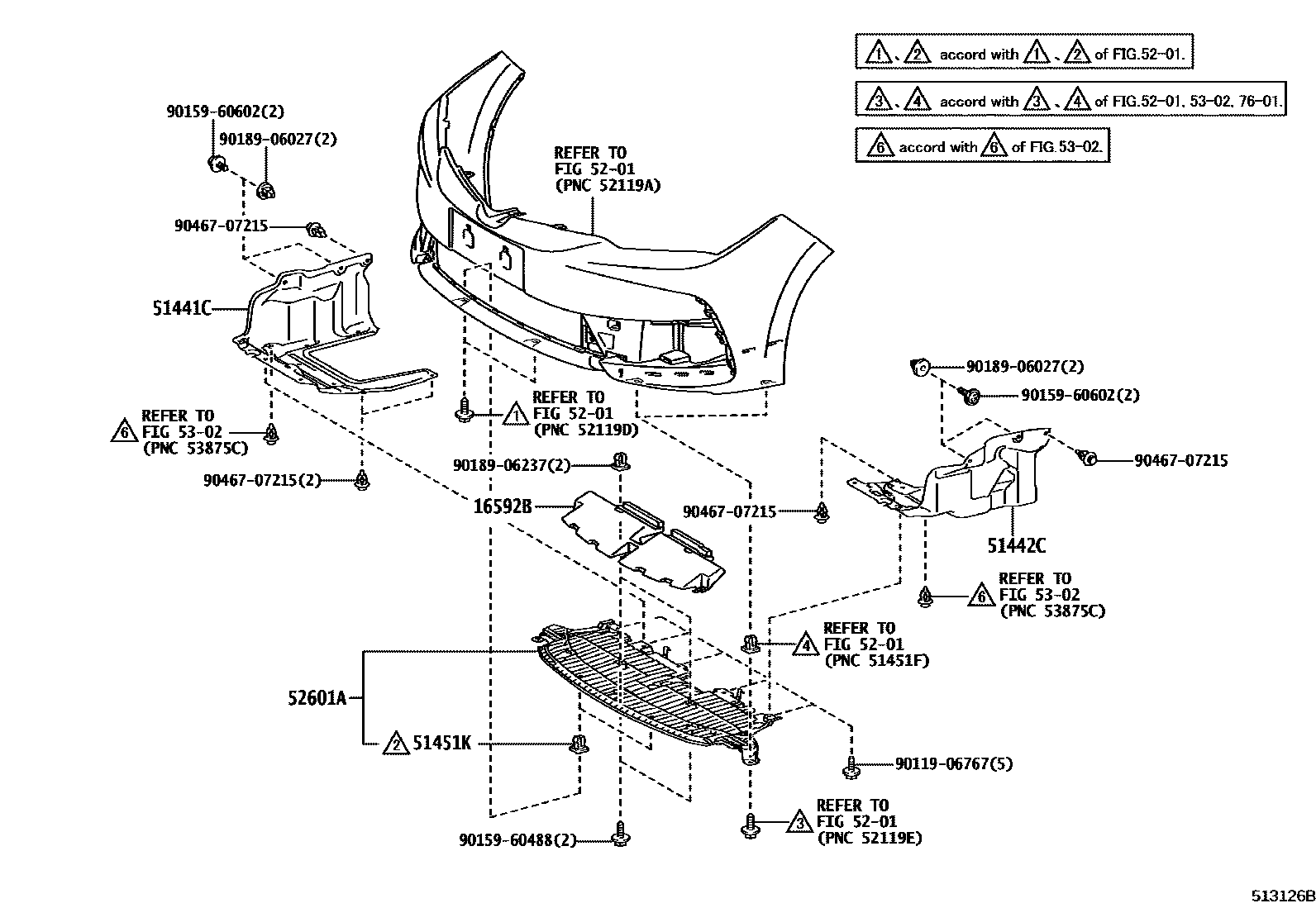

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592B | Radiator deflector No. 3 | 16592-0T100 |
| 51201 | Front suspension cross member sub-assembly | 51201-02180 |
| 51204A | Engine center mount beam sub-assembly | 51204-02110 |
| 51441C | Engine right bottom cover | 51441-02460 · 51441-02461 |
| 51442C | Engine left bottom cover | 51442-02550 · 51442-02551 · 51442-02560 · 51442-02561 |
| 51451K | No. 1 screw seal | 90189-06237 |
| 51963B | Right front transport hook | 51960-02120 · 51960-02130 |
| 52601A | Front bumper energy absorber sub-assembly | 52601-02180 |
| 52618A | Front bumper lower shock absorber | 52618-02090 |
