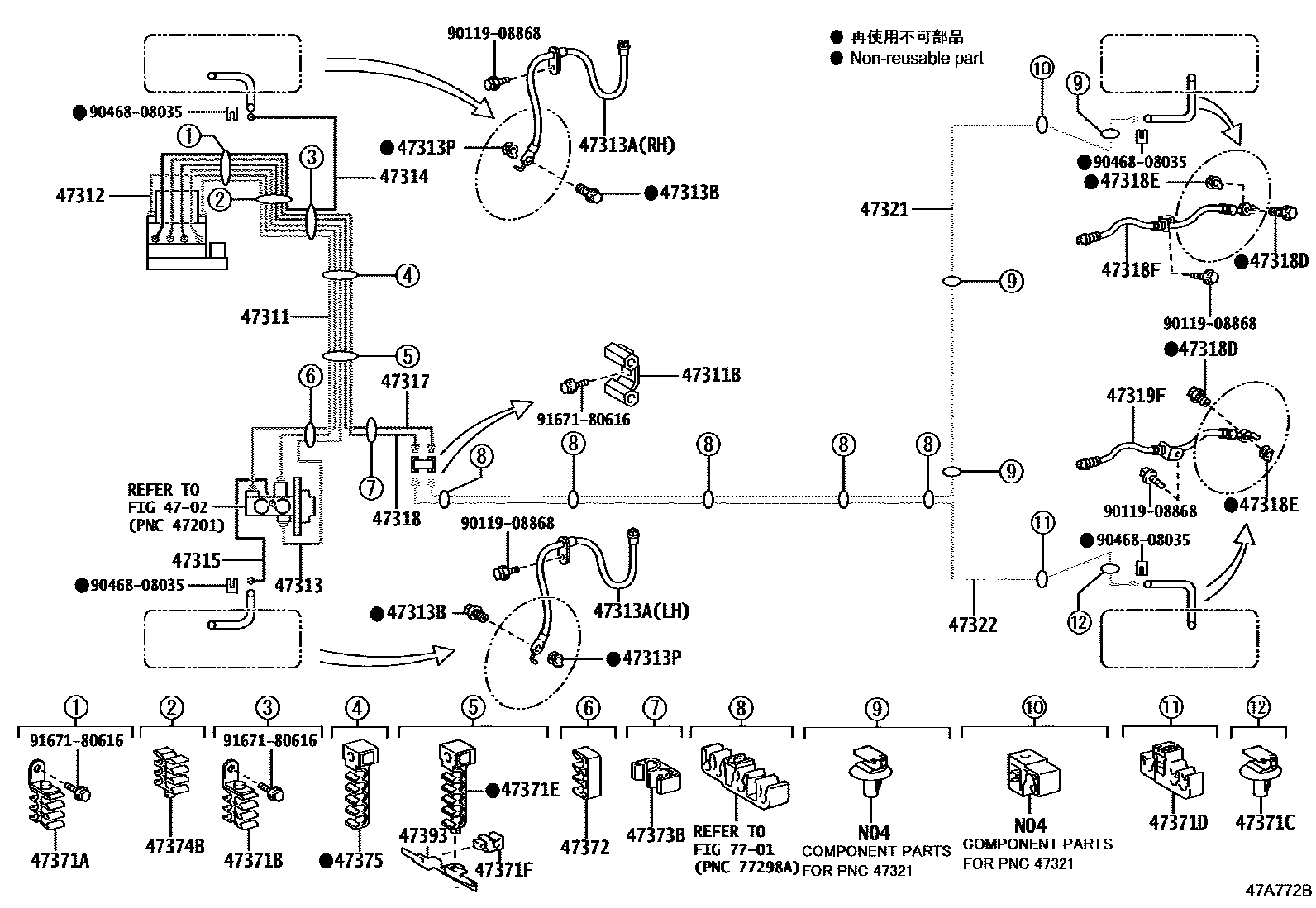

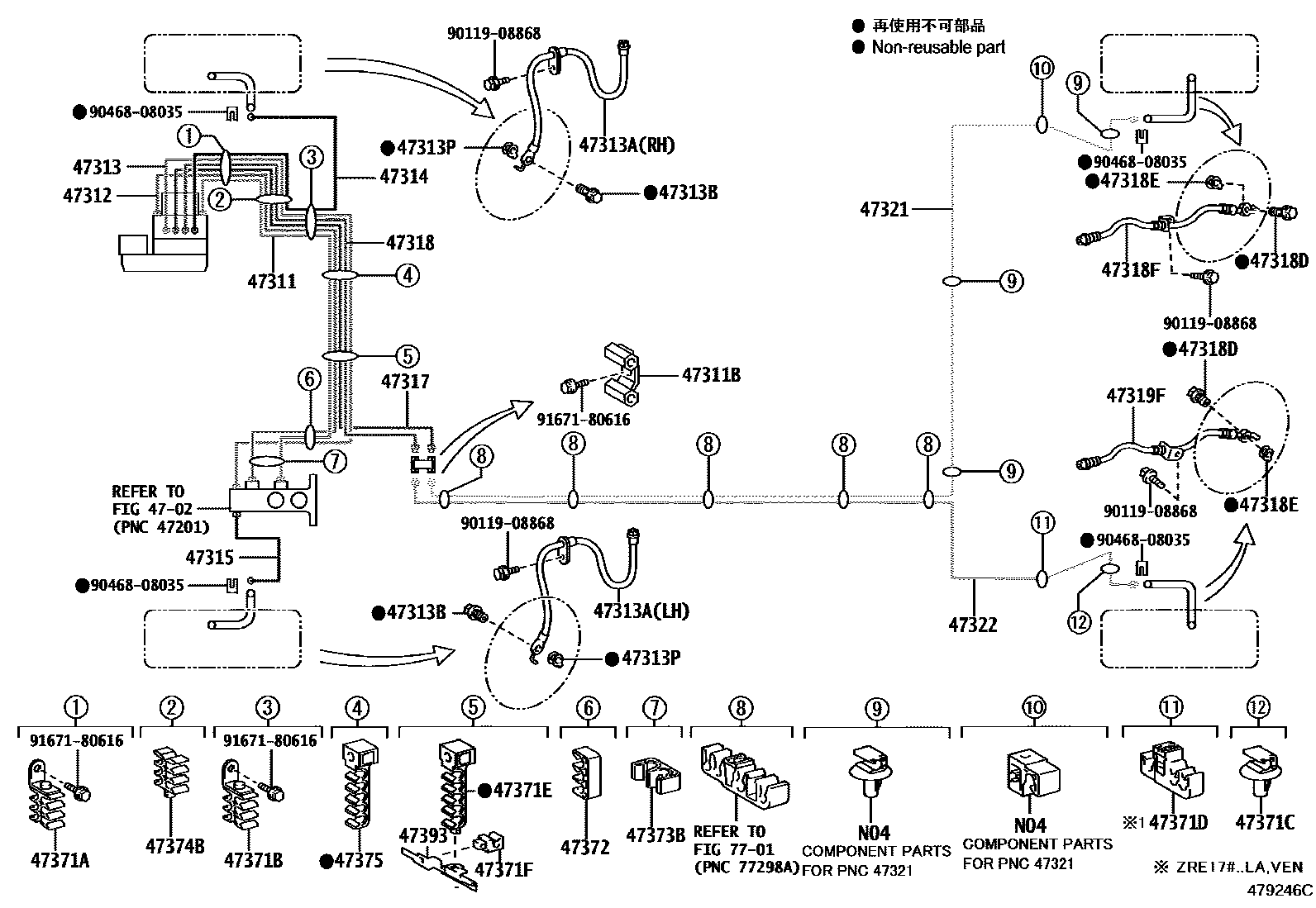

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

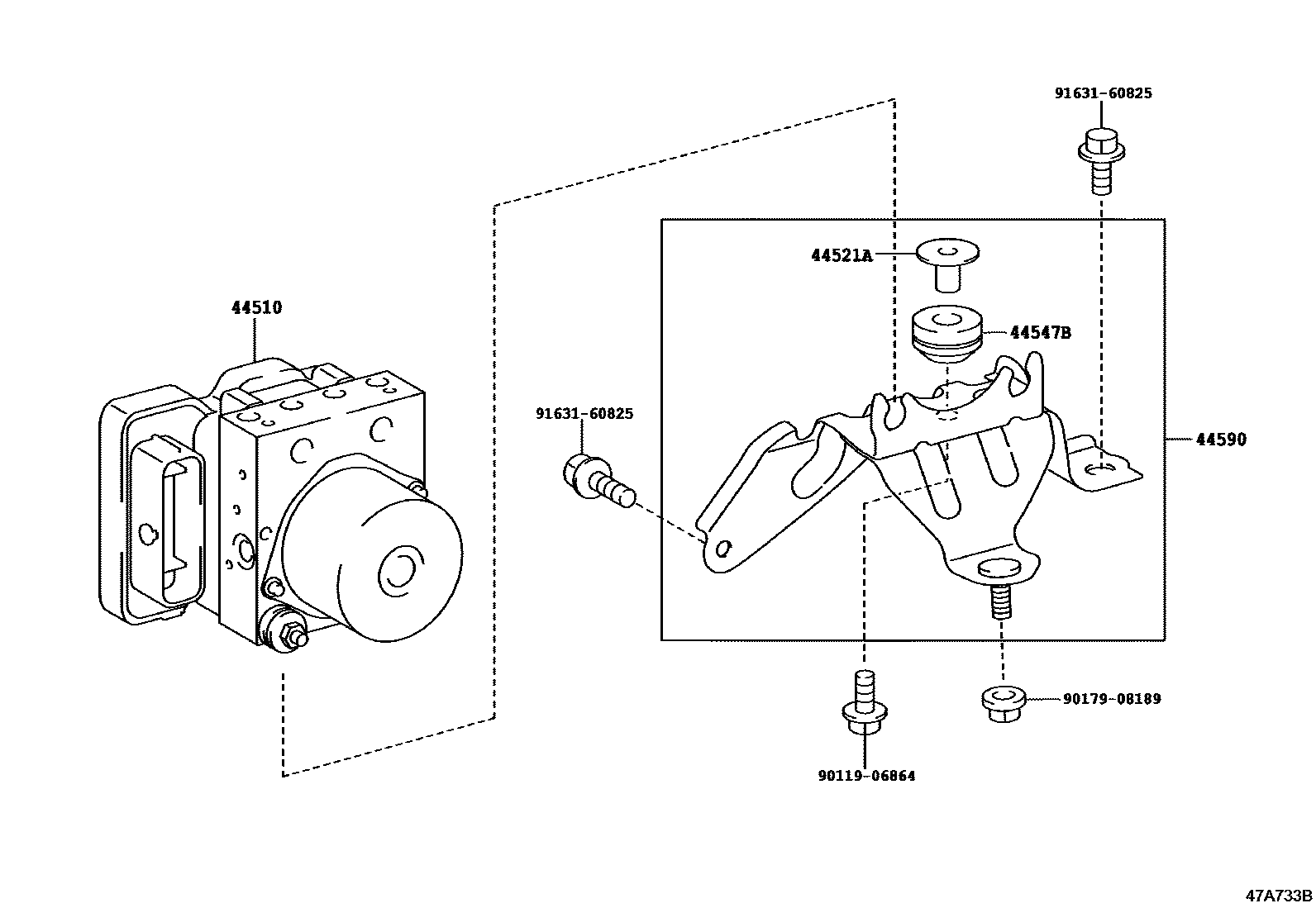

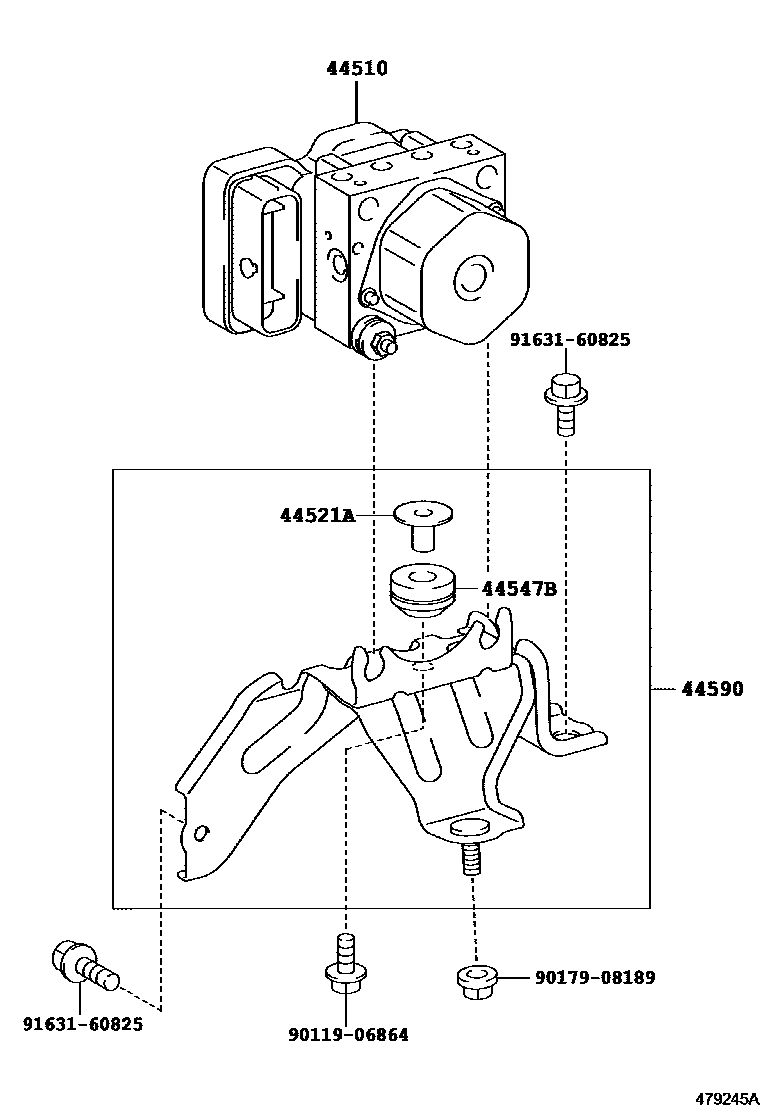

| 44510 | brake actuator assembly | 44050-02800 · 44050-02C20 |
| 44521A | No. 1 brake actuator housing collar | 44521-12060 |
| 44547B | brake actuator bracket cushion | 44547-12010 |
| 44590 | Brake actuator bracket assembly | 44590-02360 · 44590-02490 |
| 47311 | No. 1 front brake pipe | 47311-02B10 · 47311-02B20 · 47311-02D80 · 47311-02E90 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-02880 · 47312-02890 · 47312-02C20 · 47312-02D30 |
| 47313 | No. 3 front brake pipe | 47313-02C00 · 47313-02C10 · 47313-02E60 |
| 47313A | No. 1 front flexible hose | 90947-T2113 · 90947-T2114 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-02B10 · 47314-02B20 · 47314-02D90 |
| 47315 | No. 5 front brake pipe | 47315-02390 · 47315-02400 · 47315-02420 |
| 47317 | No. 7 front brake pipe | 47317-02A50 · 47317-02A60 · 47317-02D50 |
| 47318 | No. 8 front brake pipe | 47318-02A70 · 47318-02A80 · 47318-02D70 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2087 |
| 47319F | Left rear flexible hose | 90947-T2088 |
| 47321 | No. 1 rear brake pipe | 47320-02240 · 47320-02290 · 47320-02300 |
| 47322 | No. 2 rear brake pipe | 47322-02510 · 47322-02520 · 47322-02660 |
| 47371A | No. 1 brake pipe clamp | 47371-12240 · 90949-04053 |
| 47371B | No. 6 brake pipe clamp | 90949-04050 · 90949-04054 |
| 47371C | No. 7 brake pipe clamp | 90949-01D17 |
| 47371D | No. 8 brake pipe clamp | 77285-12140 |
| 47371E | No. 9 brake pipe clamp | 90949-01D79 · 90949-01D80 |
| 47371F | No. 10 brake pipe clamp | 90949-01D81 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90464-00914 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 |
| 47374B | No. 4 brake pipe clamp | 90949-01C51 · 90949-01D33 |
| 47375 | No. 5 brake pipe clamp | 90949-01D28 · 90949-01D73 |
| 47393 | brake pipe heat shield | 47393-02010 |
