Toyota COROLLA 制动助力器和真空管 — Figure 4703

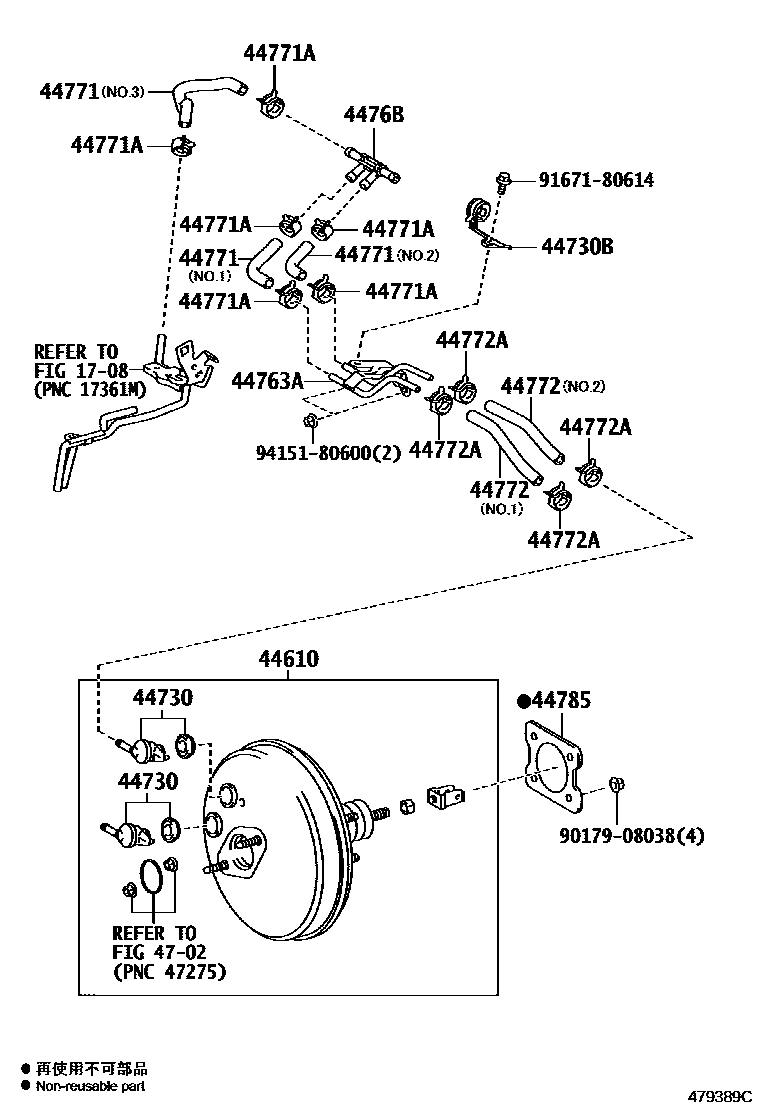

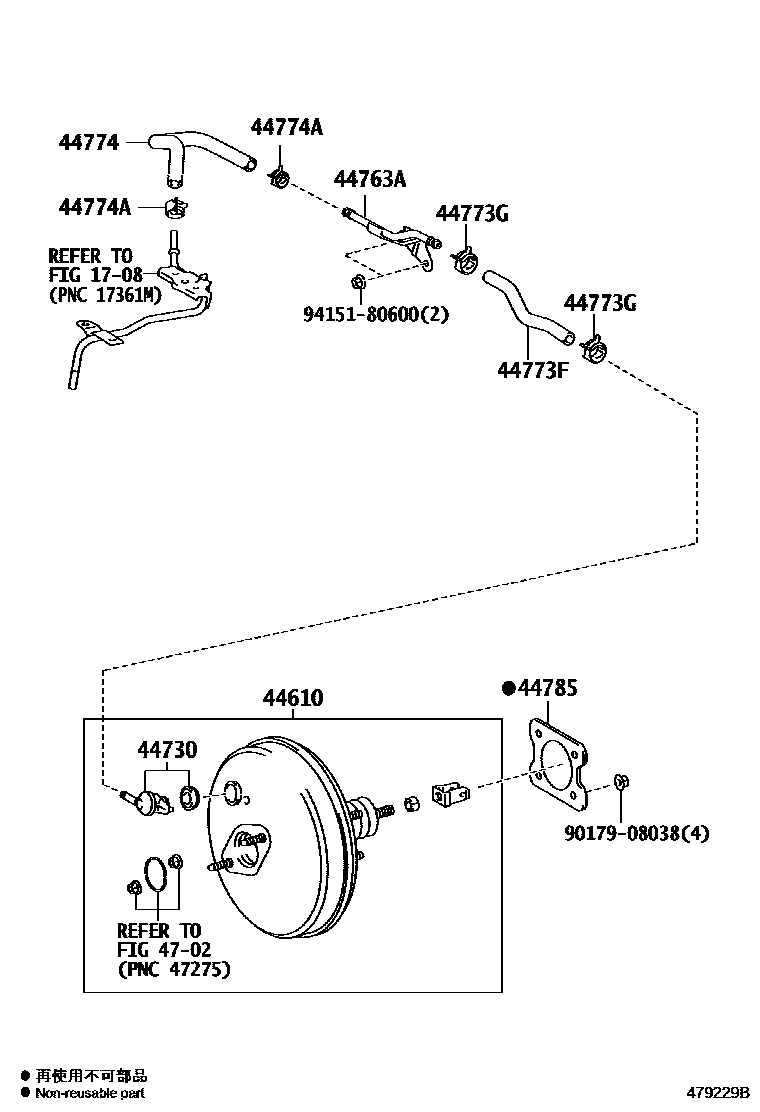

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09B20 · 44610-09B30 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09060 |
| 44730B | Vacuum hose clamp | 44783-12030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-02160 · 44763-12540 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-12030 · 44771-12040 · 44771-12050 |
| 44771A | Clip (for vacuum tube connector hose) | 96133-41500 |
| 44772 | Hoses (check valve to connector tube) | 44772-12740 · 44772-12750 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-02200 |
| 44773G | Clamp (for connector to one-way valve hose) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02200 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44785 | brake booster pad | 44785-12040 |
