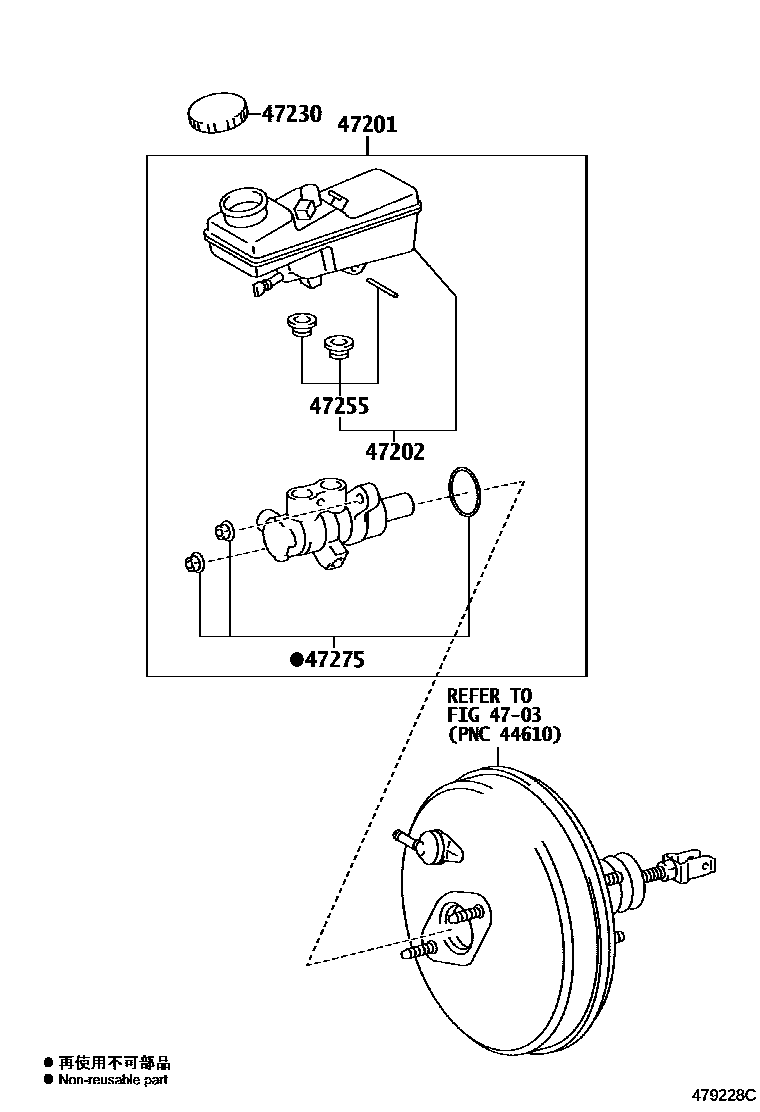

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09740 · 47201-09850 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-09200 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02250 · 47230-0D160 |
| 47255 | Master pump reservoir seal | 47255-09070 |
| 47275 | brake master cylinder gasket | 47275-09010 |
