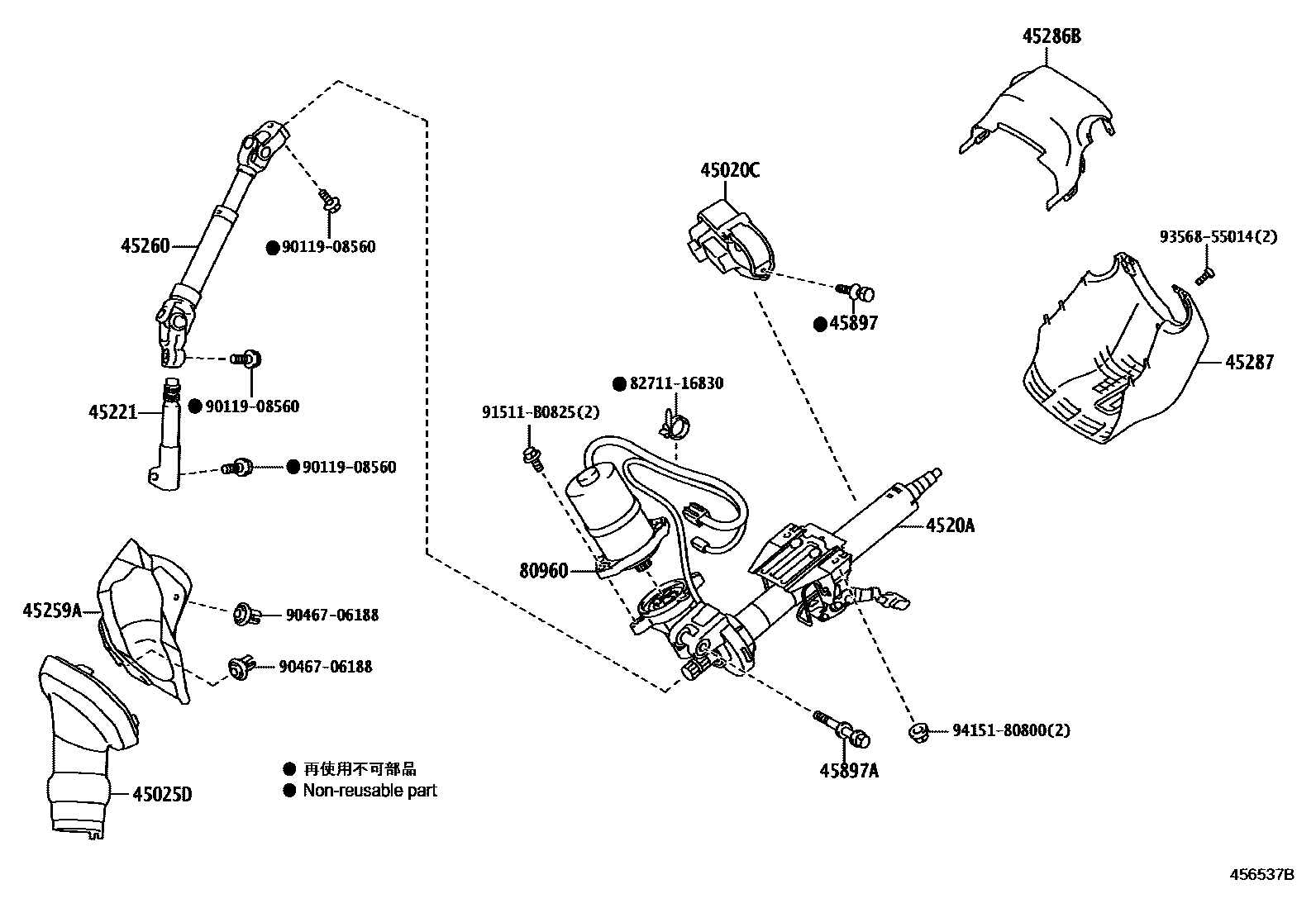

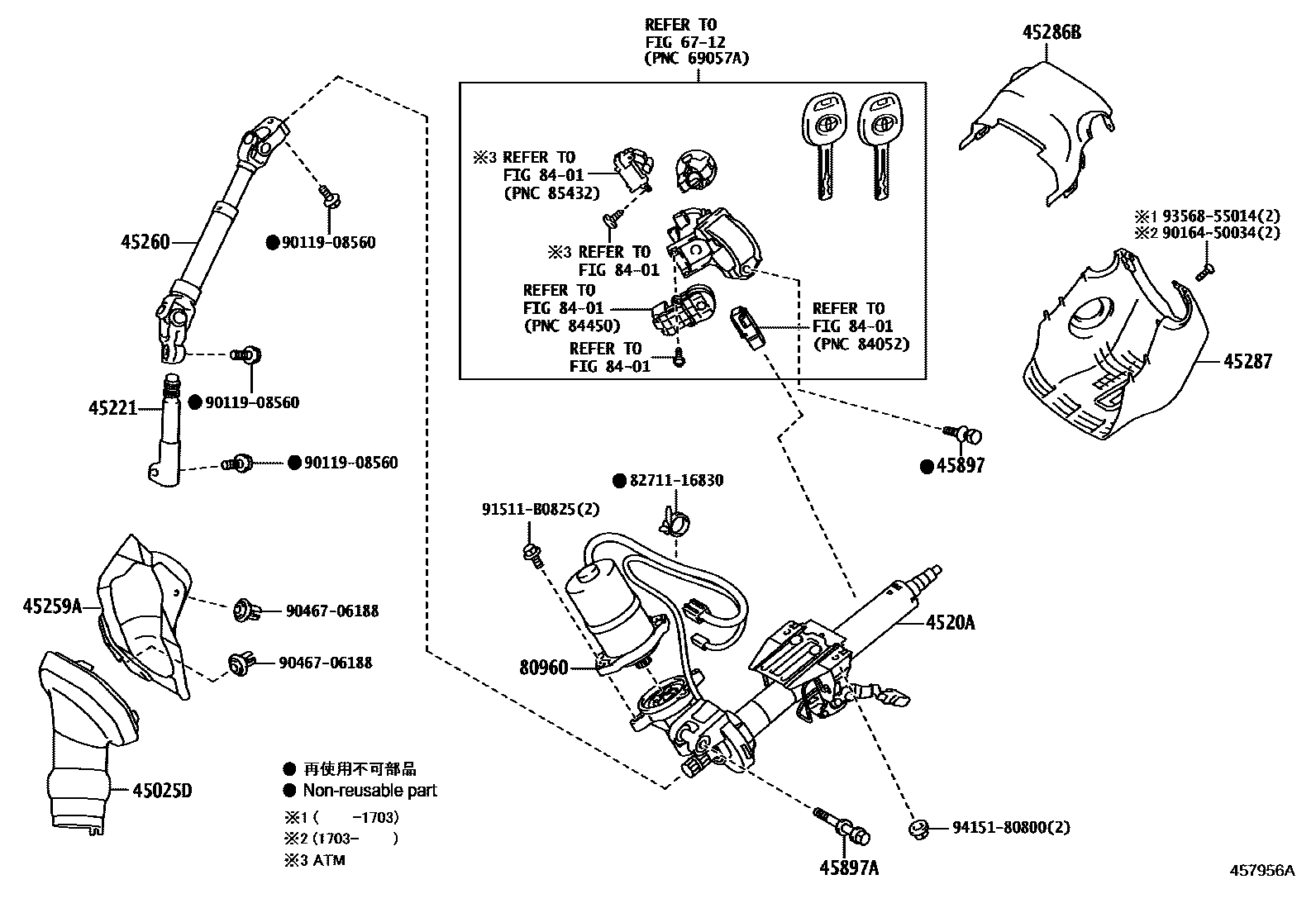

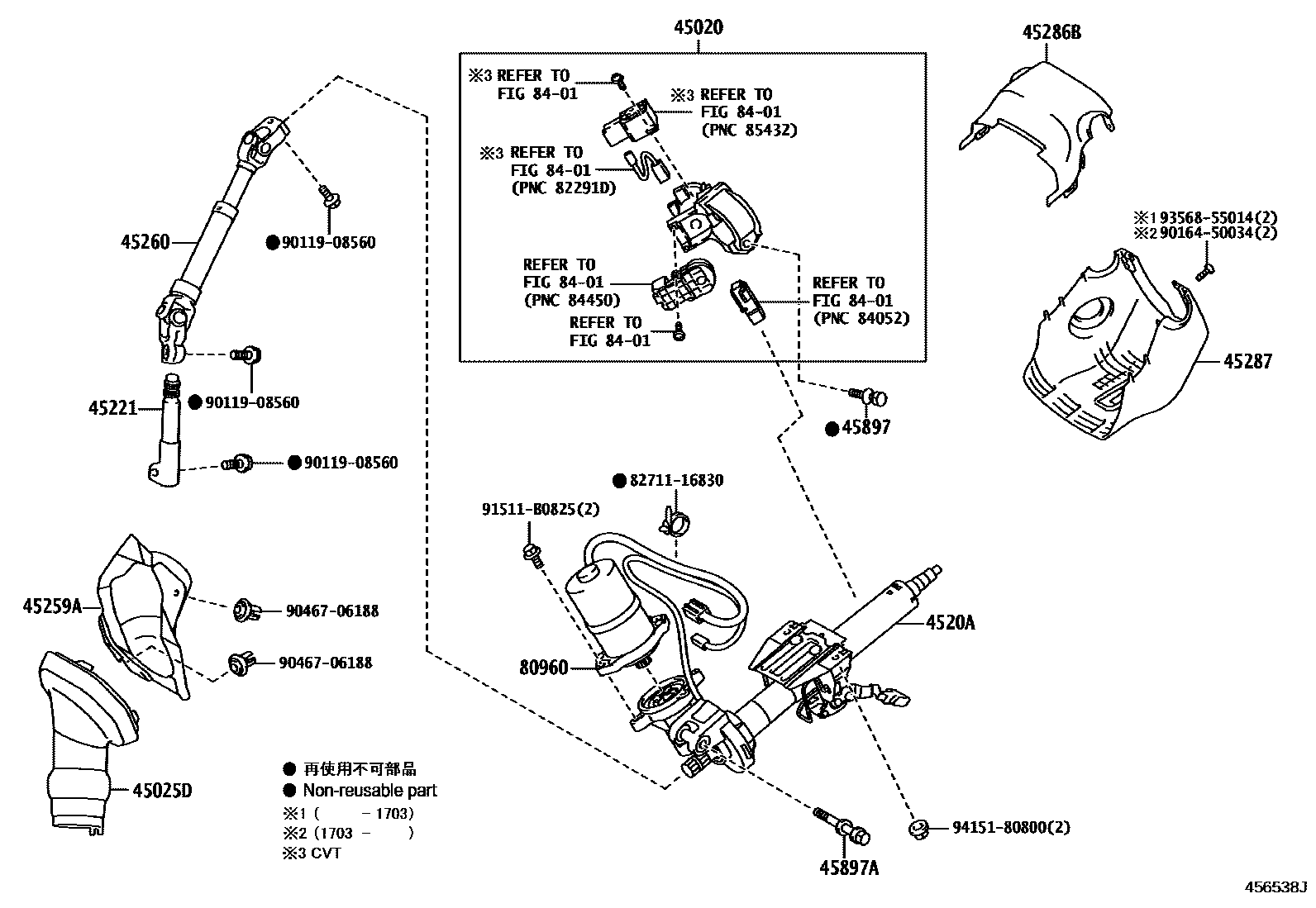

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-02740 · 45020-02750 · 45020-02770 · 45020-02780 |
| 45020C | Steering lock actuator assembly with ECU | 45020-52170 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02231 |
| 4520A | Electric steering column sub-assembly | 4520A-02300 · 4520A-02310 |
| 45221 | steering intermediate shaft | 45221-12300 |
| 45259A | Steering column hole cover silencer plate | 45259-02190 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02230 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
| 80960 | Power steering motor assembly | 80960-02130 |
