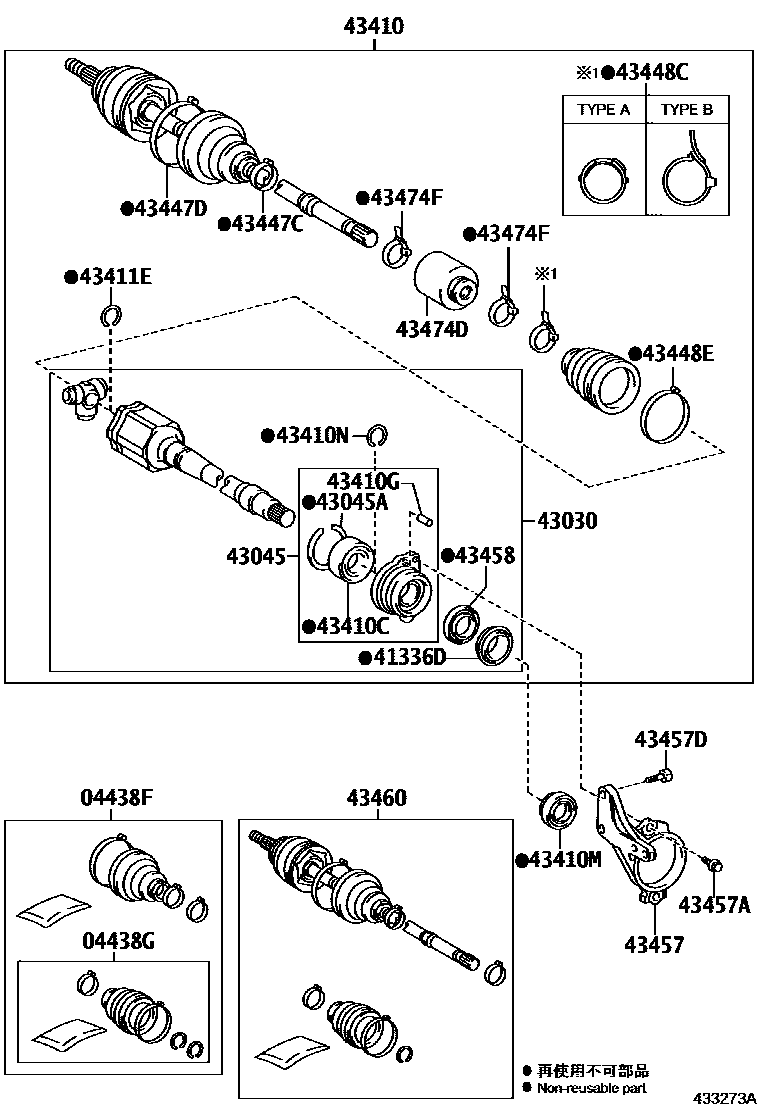

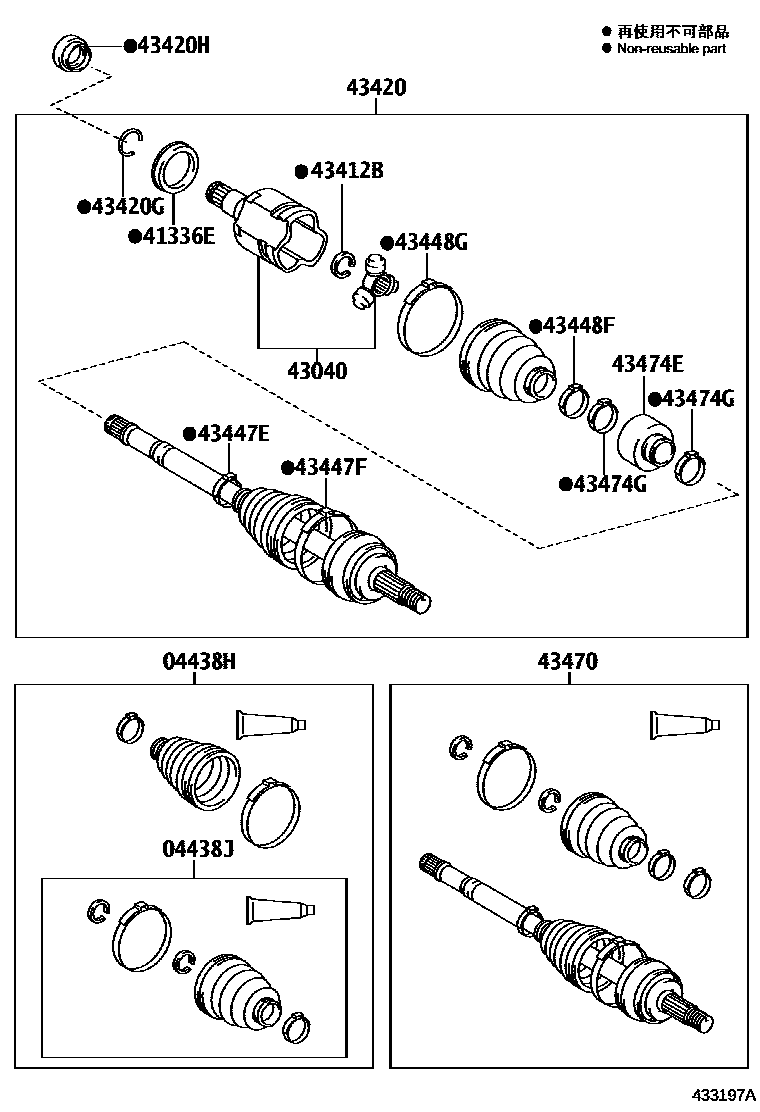

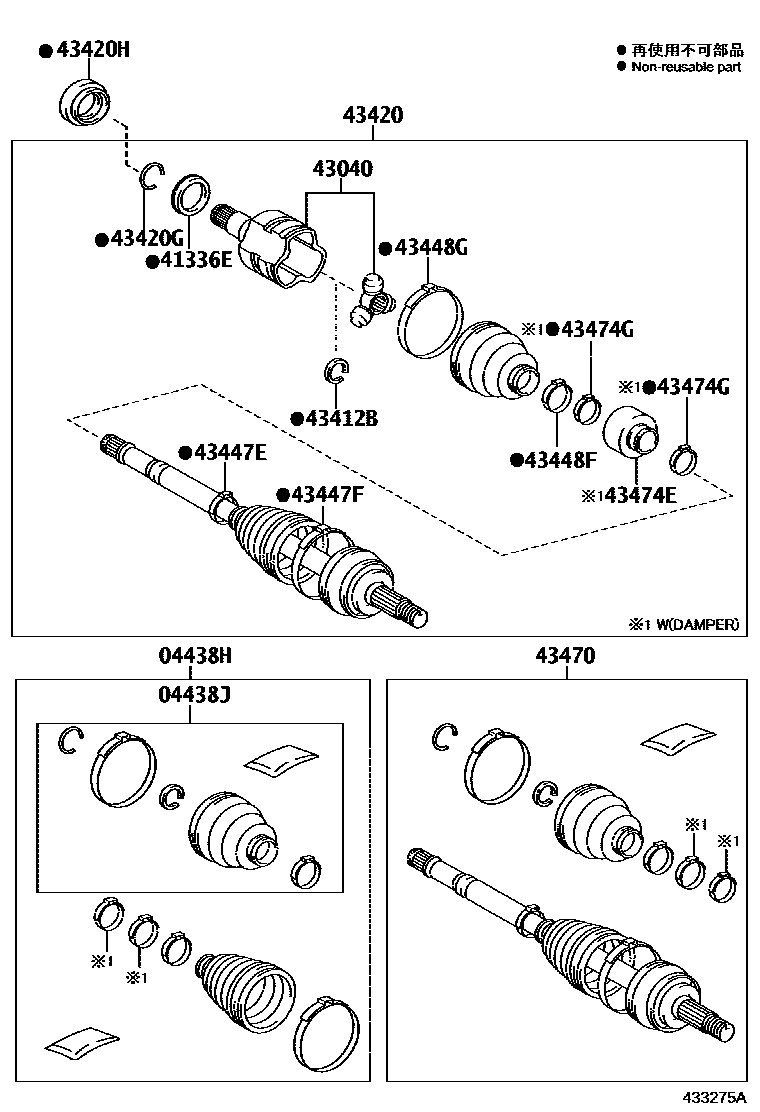

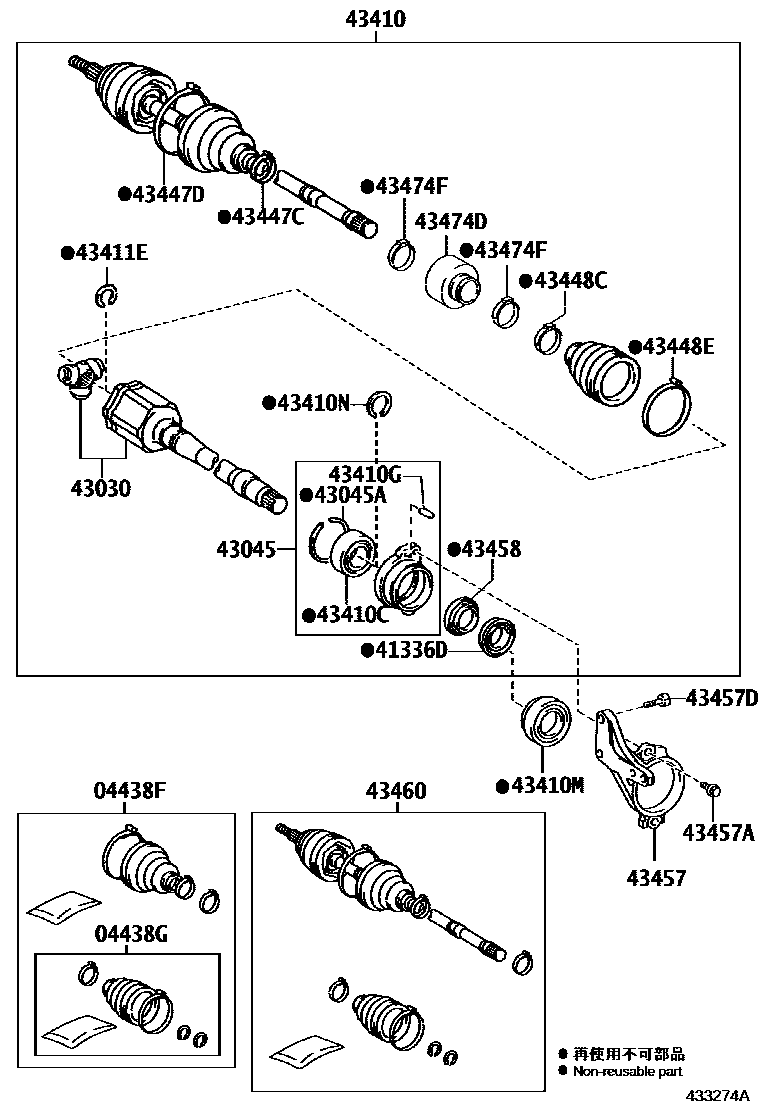

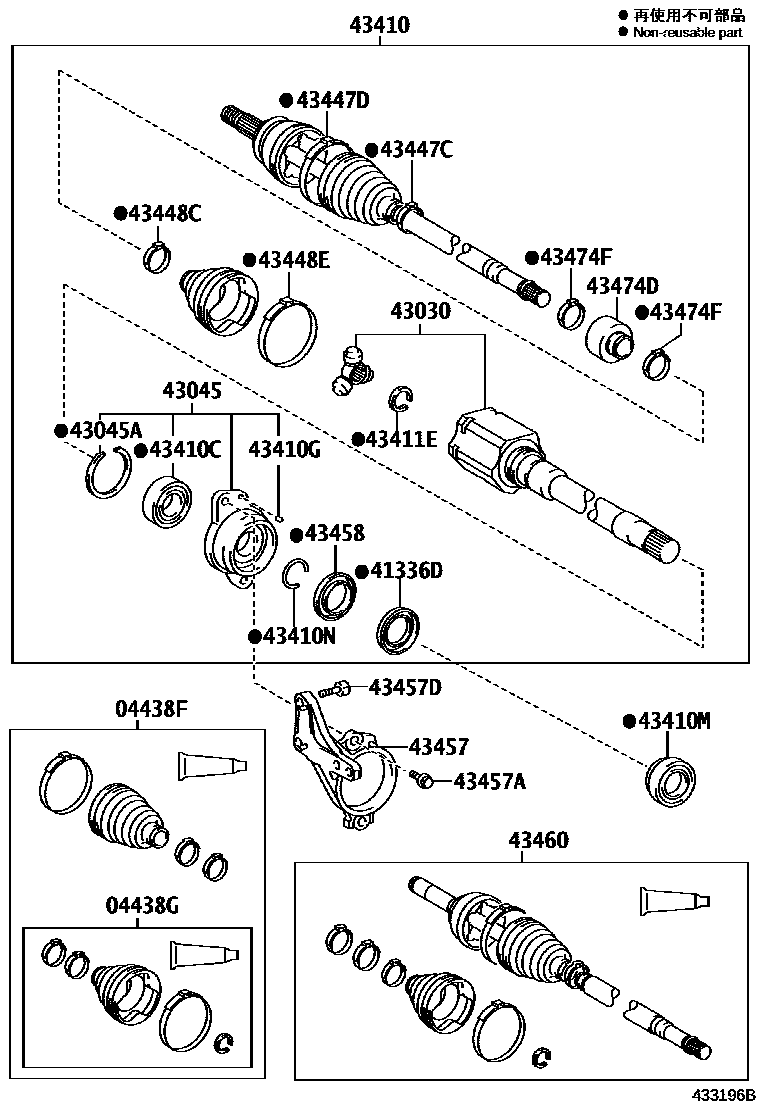

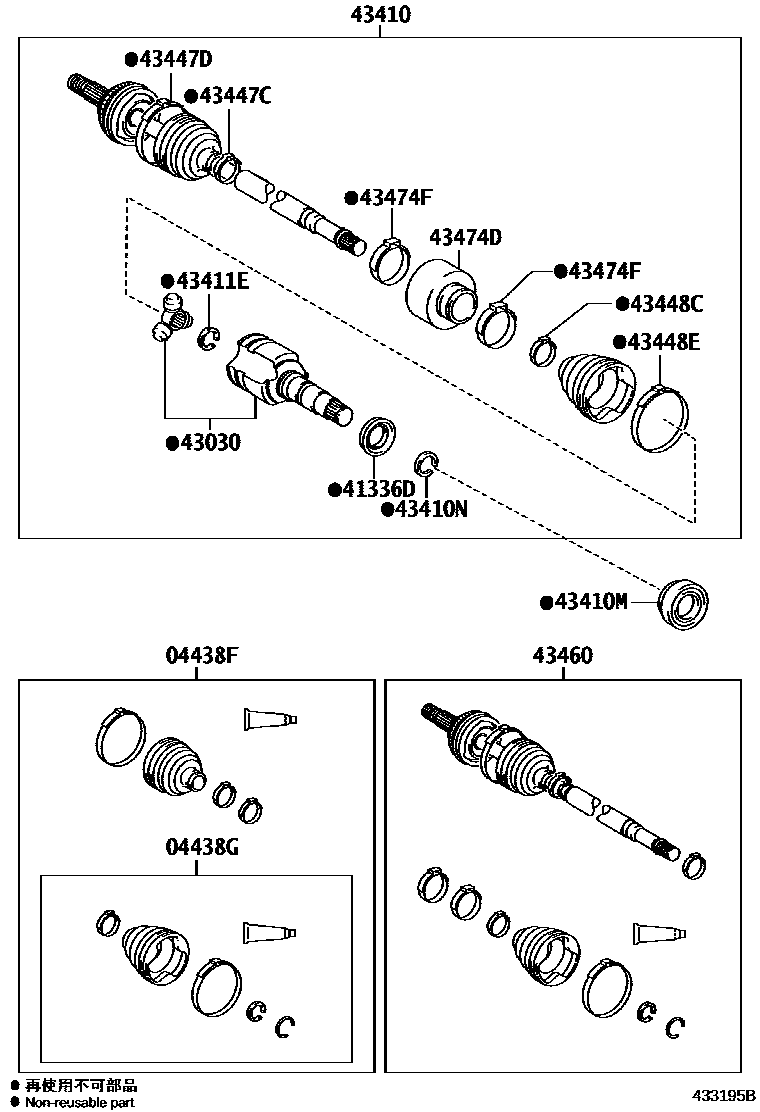

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02630 · 04427-02660 · 04427-02670 · 04427-28192 · 04427-44061 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02500 · 04437-02510 · 04437-06220 · 04437-33090 · 04438-42180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02800 · 04428-02810 · 04428-02820 · 04428-02830 · 04428-42111 · 04428-42112 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02510 · 04438-02620 · 04438-06620 · 04438-42180 · 04438-42181 |
| 41336D | Right front driveshaft dust cover | 41336-02210 · 41336-02240 · 41336-06230 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-02220 · 41336-02240 · 41336-06200 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02110 · 43030-02120 · 43030-28070 · 43030-44021 · 43040-02320 · 43040-02321 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02310 · 43040-02311 · 43040-02320 · 43040-02321 · 43040-06330 · 43040-28011 · 43040-33050 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-02A80 · 43410-02B00 · 43410-02B01 · 43410-02B10 · 43410-02B11 · 43410-44041 · 43410-44042 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410M | Front drive shaft right oil seal | 90311-35055 · 90311-35065 · 90311-35069 · 90311-35076 · 90311-40031 · 90311-40036 · 90311-40041 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02450 · 43425-02520 · 43425-06140 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02490 · 43425-02540 · 43425-06300 · 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02490 · 43425-02540 · 43425-06300 · 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-02C70 · 43420-02C71 · 43420-02C80 · 43420-02C81 · 43420-02C90 · 43420-02C91 · 43420-02D00 · 43420-44040 · 43420-44041 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02510 · 43425-02520 · 43425-06320 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-35066 · 90311-35068 · 90311-35075 · 90311-35080 · 90311-50046 · 90311-50048 · 90311-50050 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02890 · 42345-02B00 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02A00 · 42345-02A90 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02890 · 42345-02B00 · 42345-42100 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02A00 · 42345-02A90 · 42345-42090 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02A70 · 42345-02B30 · 42345-06710 · 42345-33120 · 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02A60 · 42345-02B20 · 42345-06590 · 42345-12160 · 42345-33140 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02A70 · 42345-02B30 · 42345-06710 · 42345-33120 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02A60 · 42345-02B20 · 42345-06590 · 42345-12160 · 42345-33140 |
| 43457 | drive shaft bearing bracket | 43457-02020 · 43457-20130 · 43457-28060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-02030 · 43458-06070 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09X20 · 43460-09X21 · 43460-49296 · 43460-49297 · 43470-8Z201 · 43470-8Z211 · 43470-8Z290 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-80350 · 43470-80445 · 43470-8Z212 · 43470-8Z213 · 43470-8Z214 · 43470-8Z215 · 43470-8Z291 · 43470-8Z292 · 43470-8Z293 |
| 43474D | Right front driveshaft shock absorber | 43474-02220 · 43474-02480 · 43474-02500 · 43474-28030 |
| 43474E | Left front driveshaft shock absorber | 43474-02510 · 43474-44020 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02770 · 42345-02B40 · 42345-12090 · 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02B30 · 42345-12090 · 42345-14010 |
