Toyota COROLLA 前桥壳和差速器 — Figure 4301

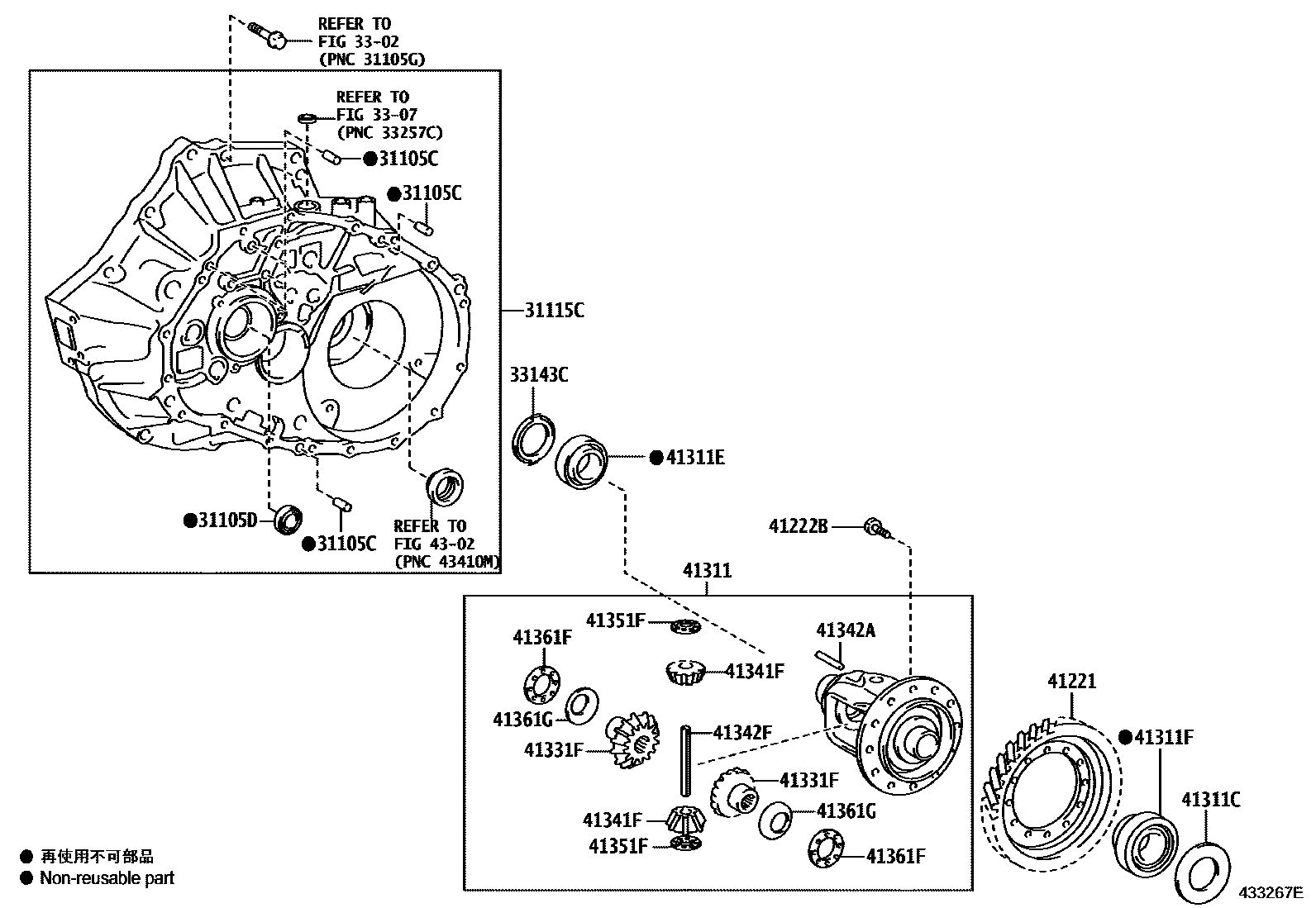

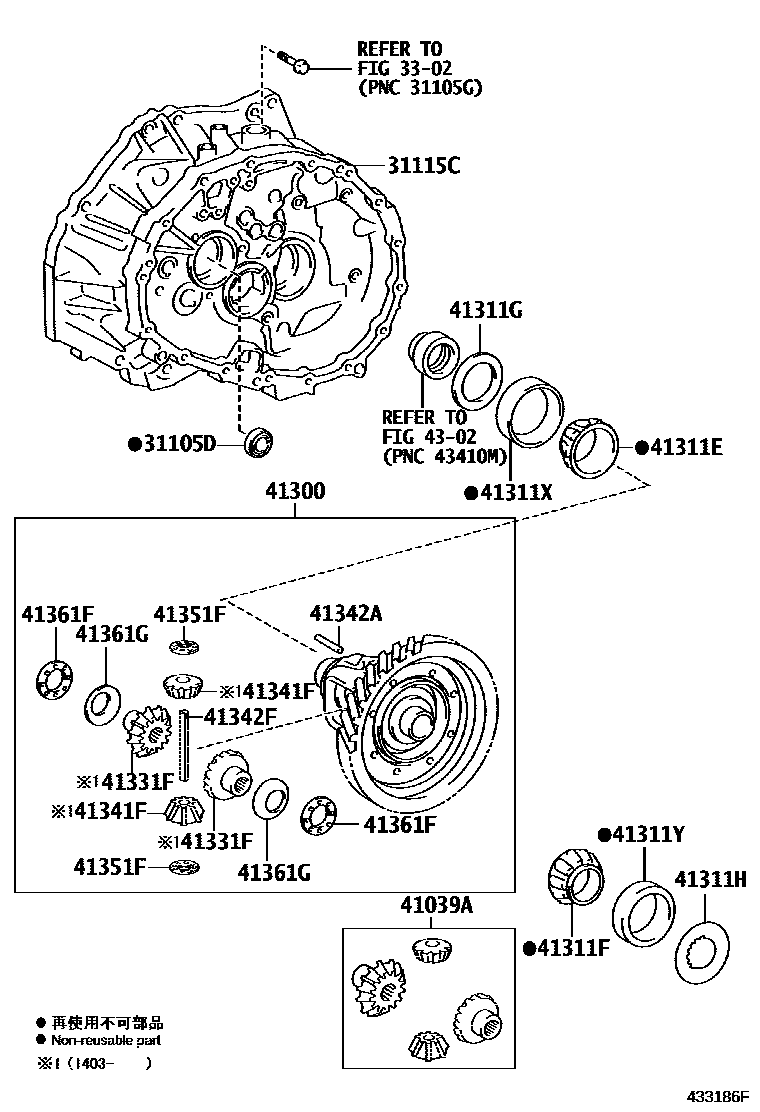

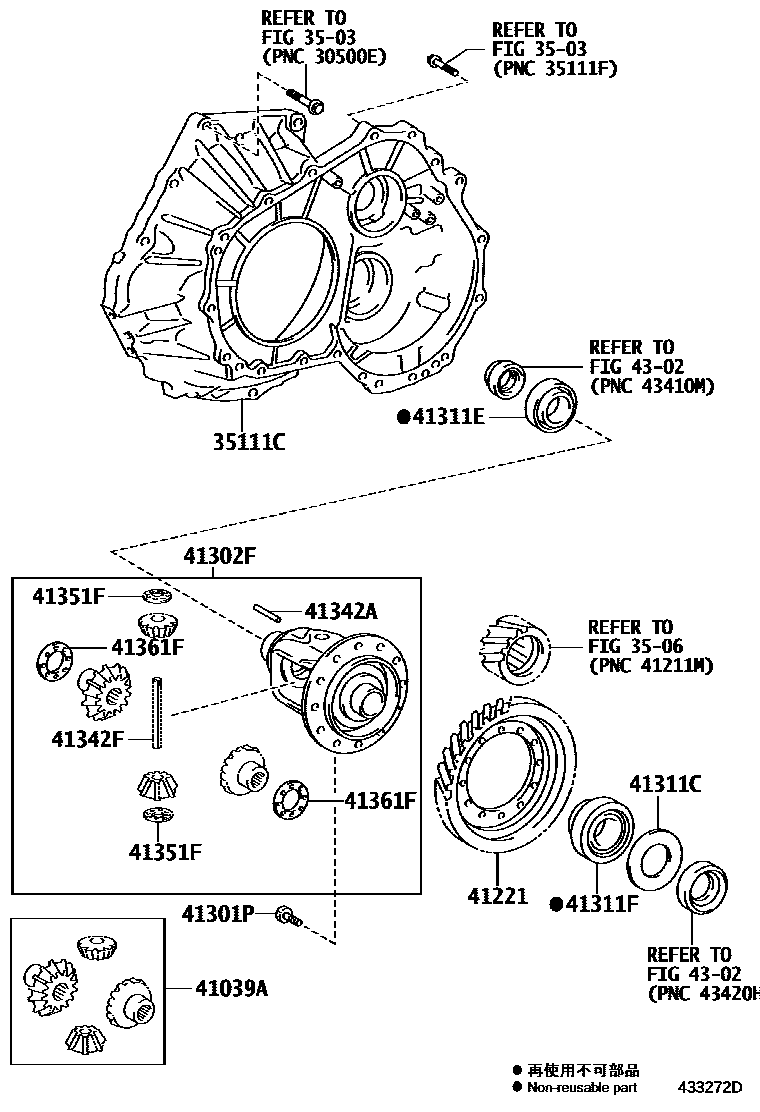

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 · 90311-27010 |
| 31115C | Front transmission axle housing (MTM) | 31105-20101 · 31115-02060 · 31115-12201 |
| 33143C | Front differential oil baffle | 33143-20060 |
| 35111C | Transmission axle housing | 35105-68010 |
| 41039A | Differential gear assembly | 41039-28020 · 41039-28030 |
| 41221 | Front differential ring gear | 41221-20490 · 41221-28110 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |
| 41300 | Front differential case assembly with ring gear | 41300-0D080 · 41300-0D903 · 41300-12100 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41302F | Front differential housing sub-assembly | 41301-28090 |
| 41311 | front differential case | 41301-21070 |
| 41311C | Rear gasket (for front differential case) | 90564-61095 · 90564-61096 · 90564-61097 · 90564-61098 · 90564-61099 · 90564-61100 · 90564-61101 · 90564-61102 · 90564-61103 · 90564-61104 · 90564-61105 · 90564-61106 · 90564-61107 · 90564-61108 · 90564-61109 · 90564-61110 · 90564-61111 · 90564-61112 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-40129 · 90366-50075 · 90366-57028 · 90366-S0028 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-42009 · 90366-50078 · 90366-57028 · 90366-S0025 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 |
| 41331F | Front differential side gear | 41331-0D080 · 41331-12190 · 41331-21020 |
| 41341F | Front differential planetary gear | 41341-0D080 · 41341-12130 · 41341-21010 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28010 · 41342-28030 · 41342-32020 · 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-30060 · 41351-32010 · 41351-47010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-28270 · 41361-28280 · 41361-28290 · 41361-28300 · 41361-28310 · 41361-48010 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 · 90208-40003 |
