Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

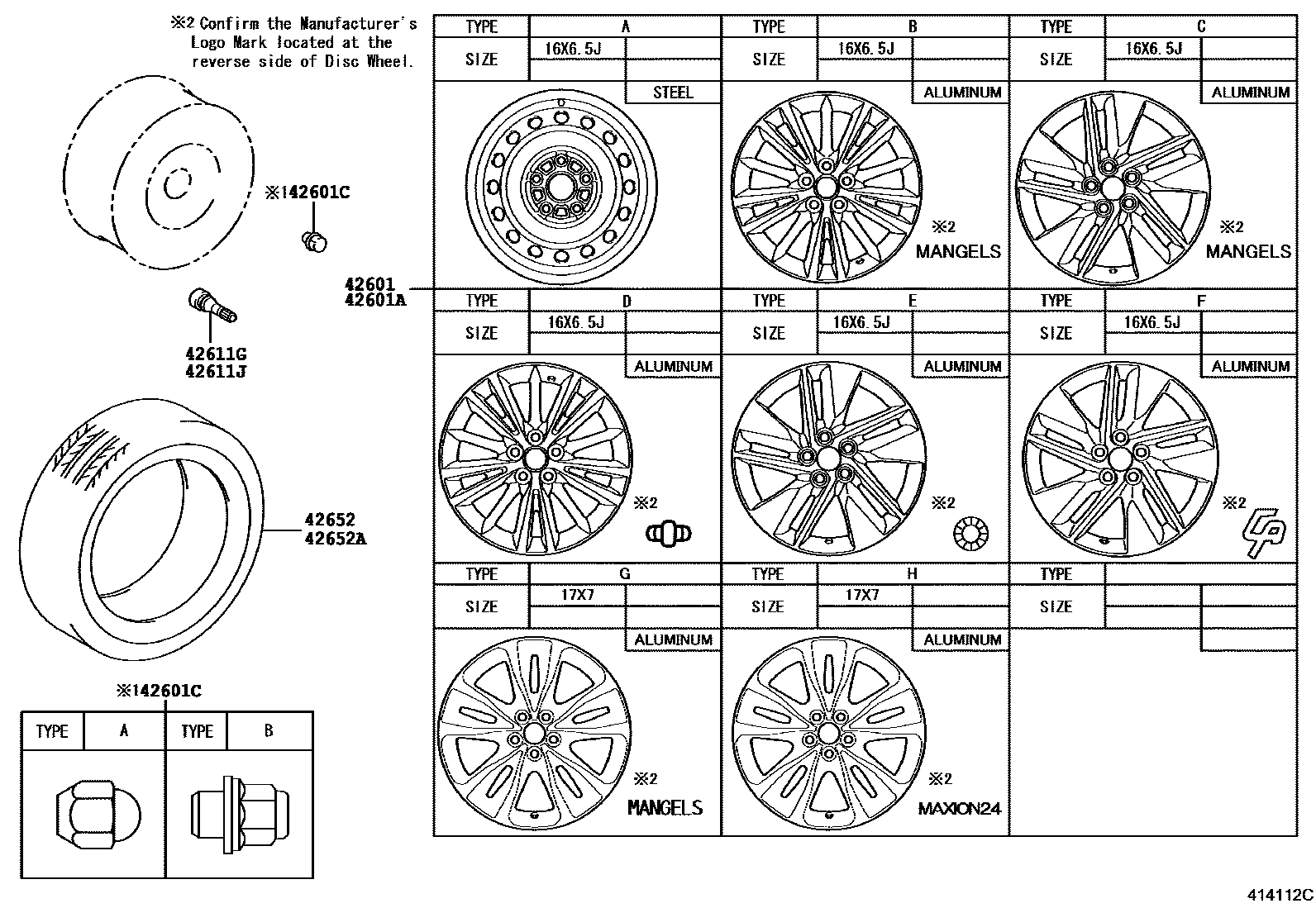

| 42601 | spoke wheel | 42611-02B70 · 42611-02G90 · 42611-02J00 · 42611-02J10 · 42611-02M40 · 42611-02M41 · 42611-02M70 · 42611-02P20 · 42611-02P30 · 42611-02P40 · 42611-02P90 · 42611-02V20 · 42611-02V40 · 42611-02V50 |
| 42601A | Spoke wheel (for spare tire) | 42611-02B70 · 42611-02J00 · 42611-02J10 · 42611-02M70 · 42611-02P50 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 |

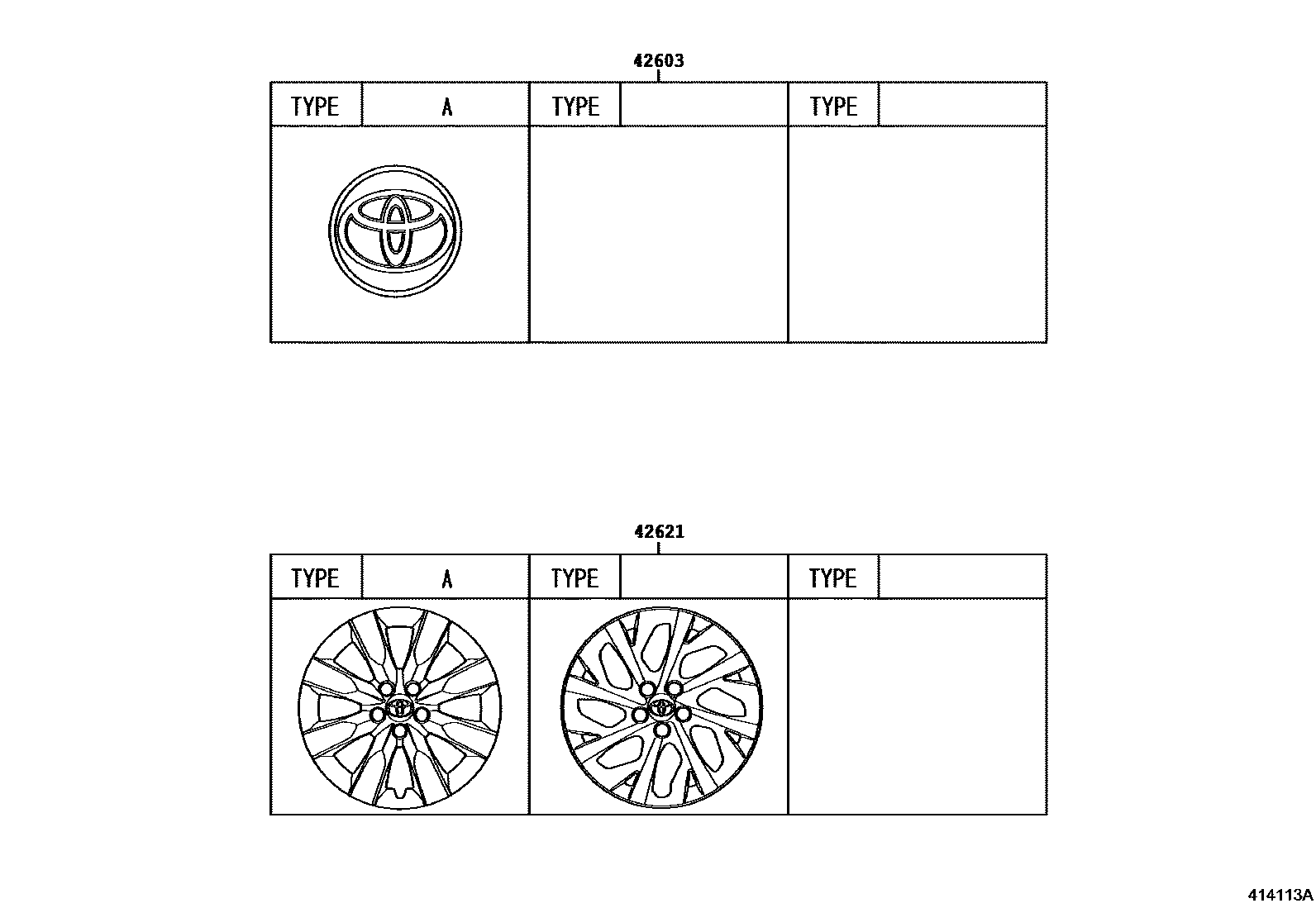

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02290 · 42603-0D070 · 42603-0D230 |
| 42611G | Valve (for tubeless tires) | 90080-94179 · 90942-05009 · 90942-C5004 |
| 42611J | Valve (for tubeless spare tire) | 90080-94179 · 90942-05009 · 90942-C5004 |
| 42621 | wheel cover | 42602-02480 · 42602-12A00 |
| 42652 | tires | 42652-02J90 · 42652-02M40 · 42652-02M41 · 42652-02M50 · 42652-02M51 · 42652-02S50 · 42652-02S60 |
| 42652A | Tire (for Spare Wheel) | 42652-02J90 · 42652-02M40 · 42652-02M41 · 42652-02M50 · 42652-02M51 |
