Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

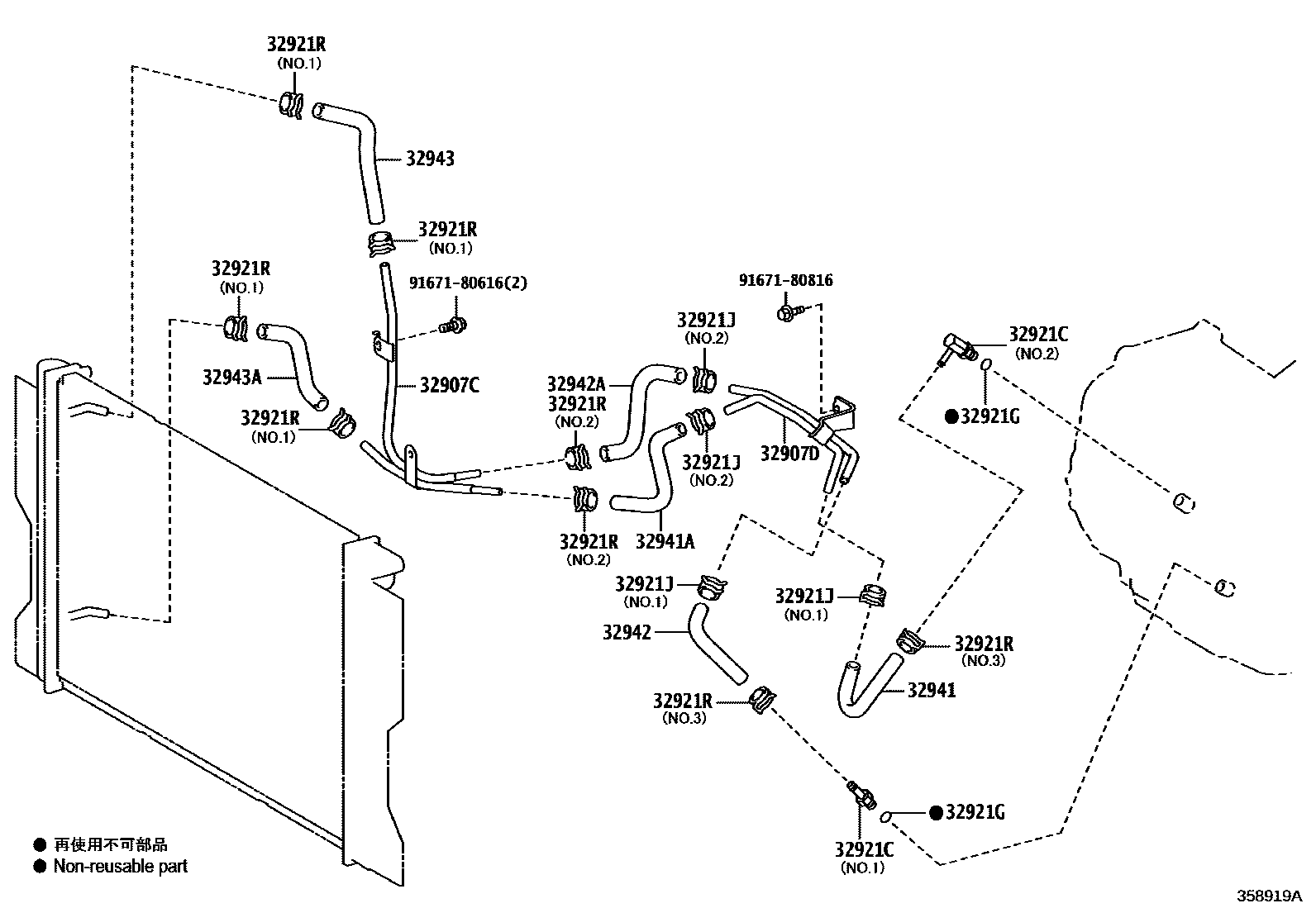

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-12150 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-12250 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13004 · 90404-13010 · 90407-13009 · 90407-13010 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 · 96137-41501 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 96137-41501 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-12250 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32943-12390 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-12240 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32943-12390 |
| 32943 | No. 1 transmission oil cooler hose | 32943-12180 |
| 32943A | No. 2 transmission oil cooler hose | 32943-12190 |
