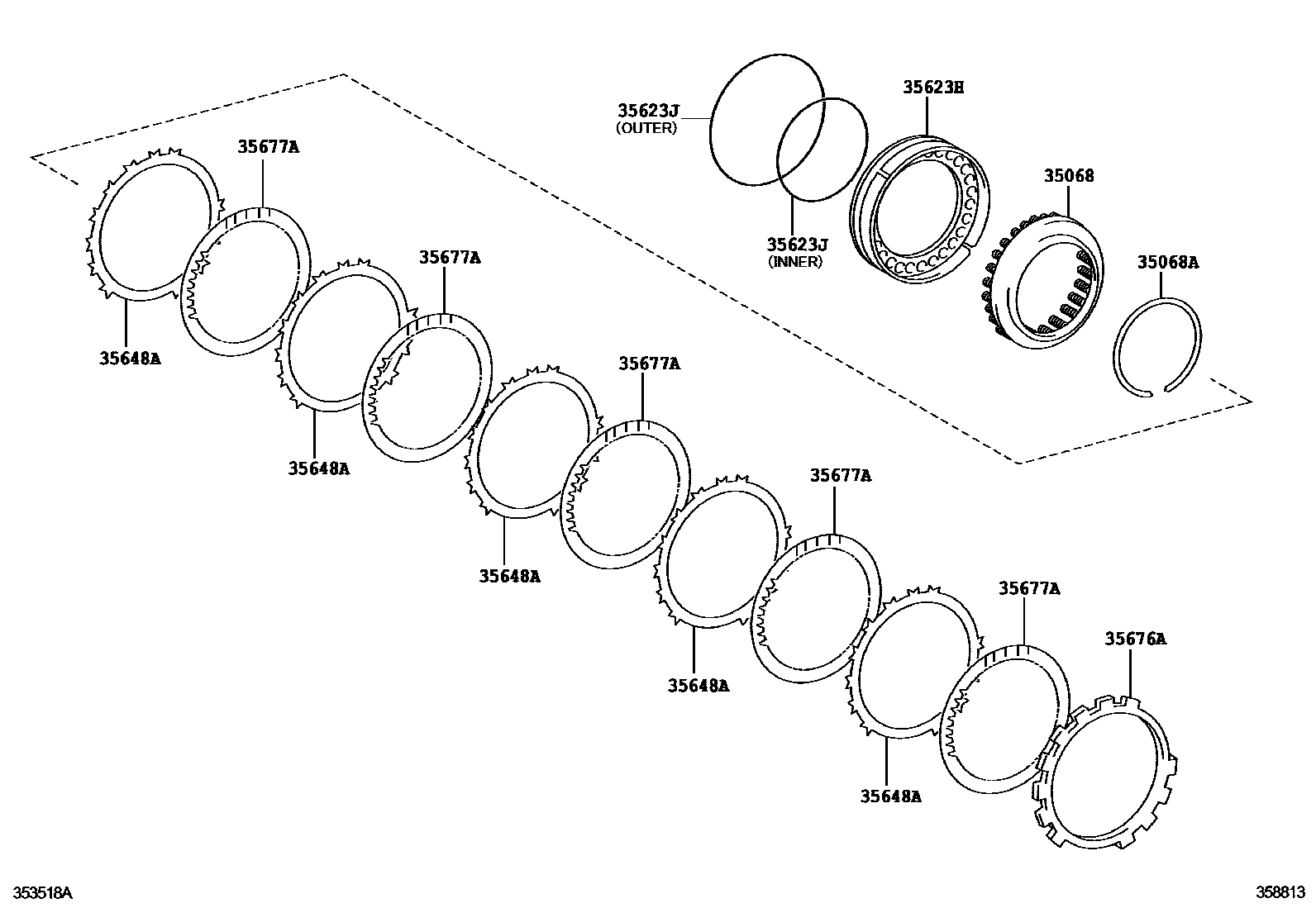

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota COROLLA EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-21011 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-99035 |
| 35623H | First and reverse brake piston | 35623-28020 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99096 · 90301-99134 |
| 35648A | Clutch disc (for first and reverse brakes) | 35692-21011 |
| 35676A | Brake flange (for first and reverse brakes) | 35678-21010 · 35678-21020 · 35678-21030 · 35678-21040 · 35678-21050 · 35678-21060 · 35678-21070 · 35678-21080 |
| 35677A | Clutch disc (for first and reverse brake) | 35682-28010 |
