Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502

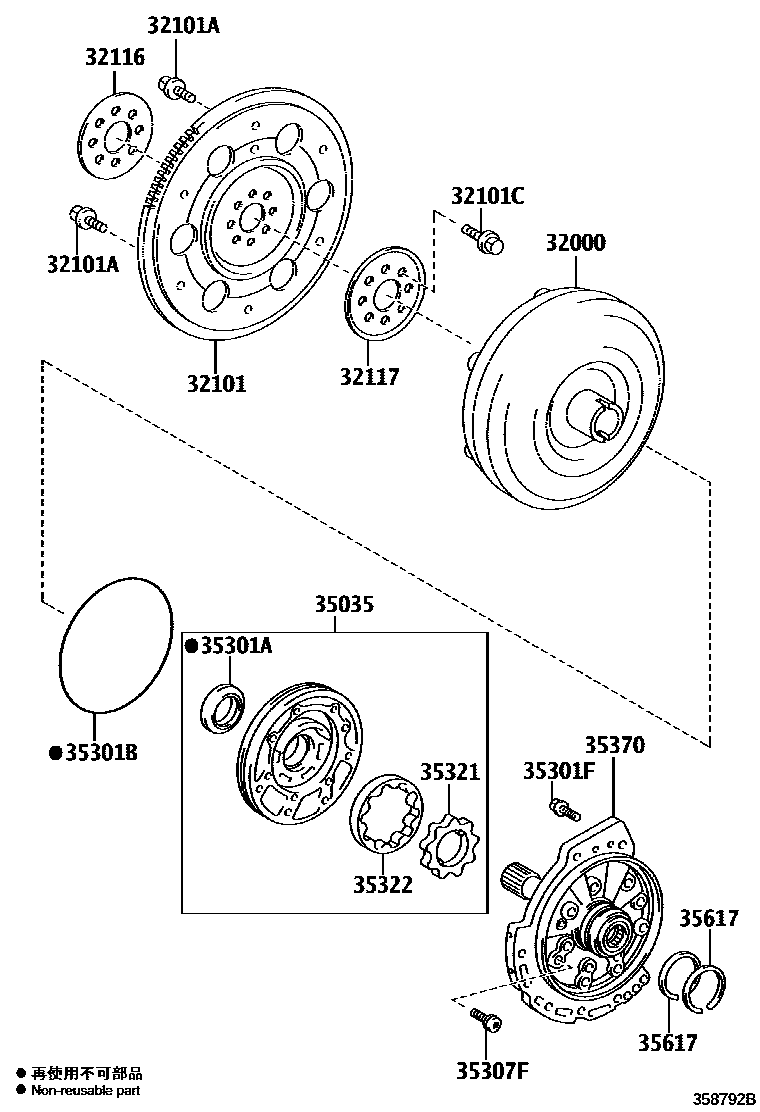

Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-20341 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-28050 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-09001 · 90119-09025 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116 | Front transmission plate spacer | 32116-12030 |
| 32117 | Rear transmission plate spacer | 32117-12040 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-12070 |
| 35301A | Oil seal (for front oil pump) | 90311-38083 |
| 35301B | O-ring (for front oil pump body) | 90301-99099 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08198 |
| 35307F | Bolt (for stator shaft) | 90148-60027 |
| 35321 | Front oil pump driving gear | 35321-28060 · 35321-28070 · 35321-28080 · 35321-28090 · 35321-28100 |
| 35322 | Front oil pump driven gear | 35322-28060 · 35322-28070 · 35322-28080 · 35322-28090 · 35322-28100 |
| 35370 | stator shaft assembly | 35370-12110 |
| 35617 | Clutch drum oil ring | 35613-21010 |
