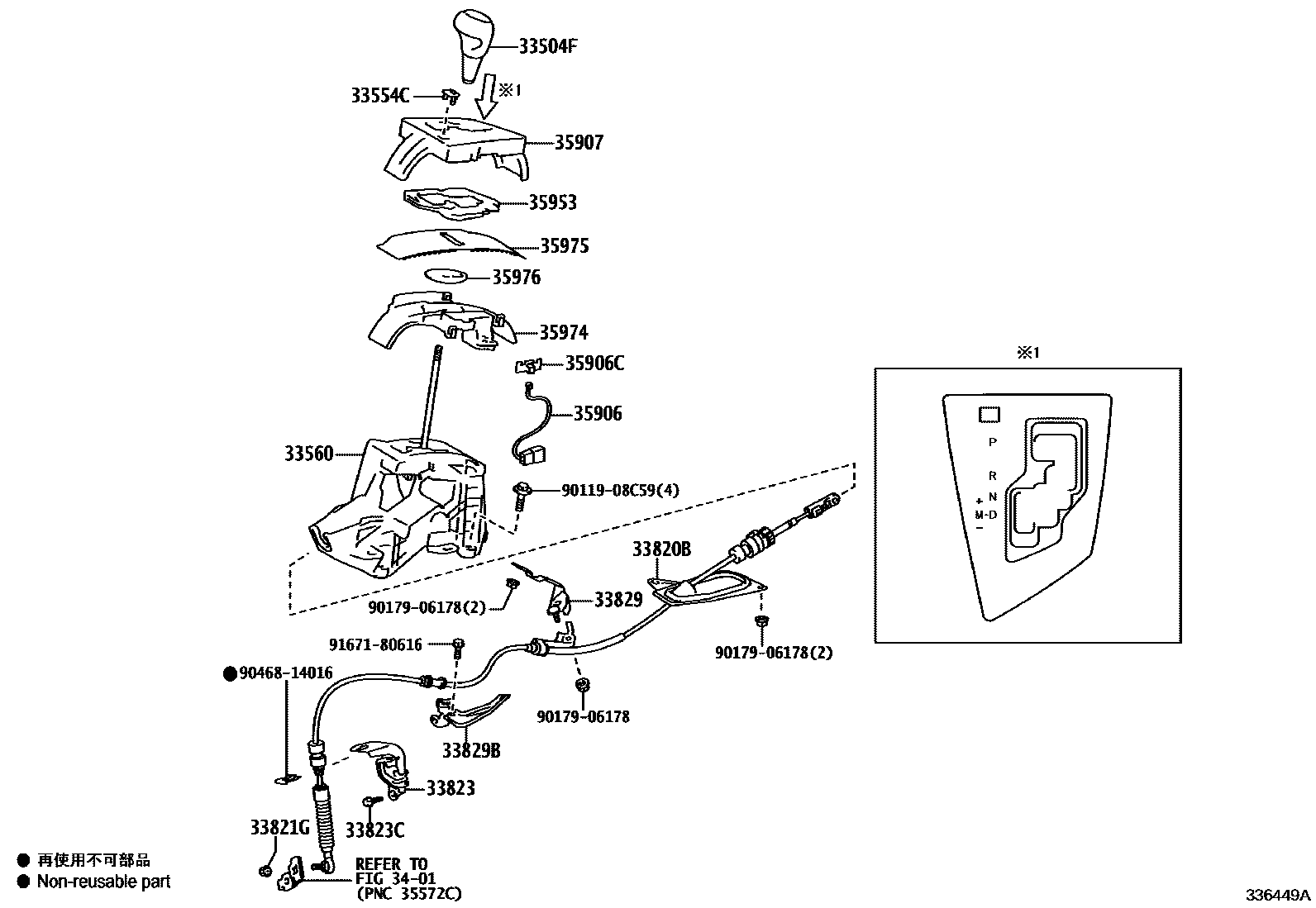

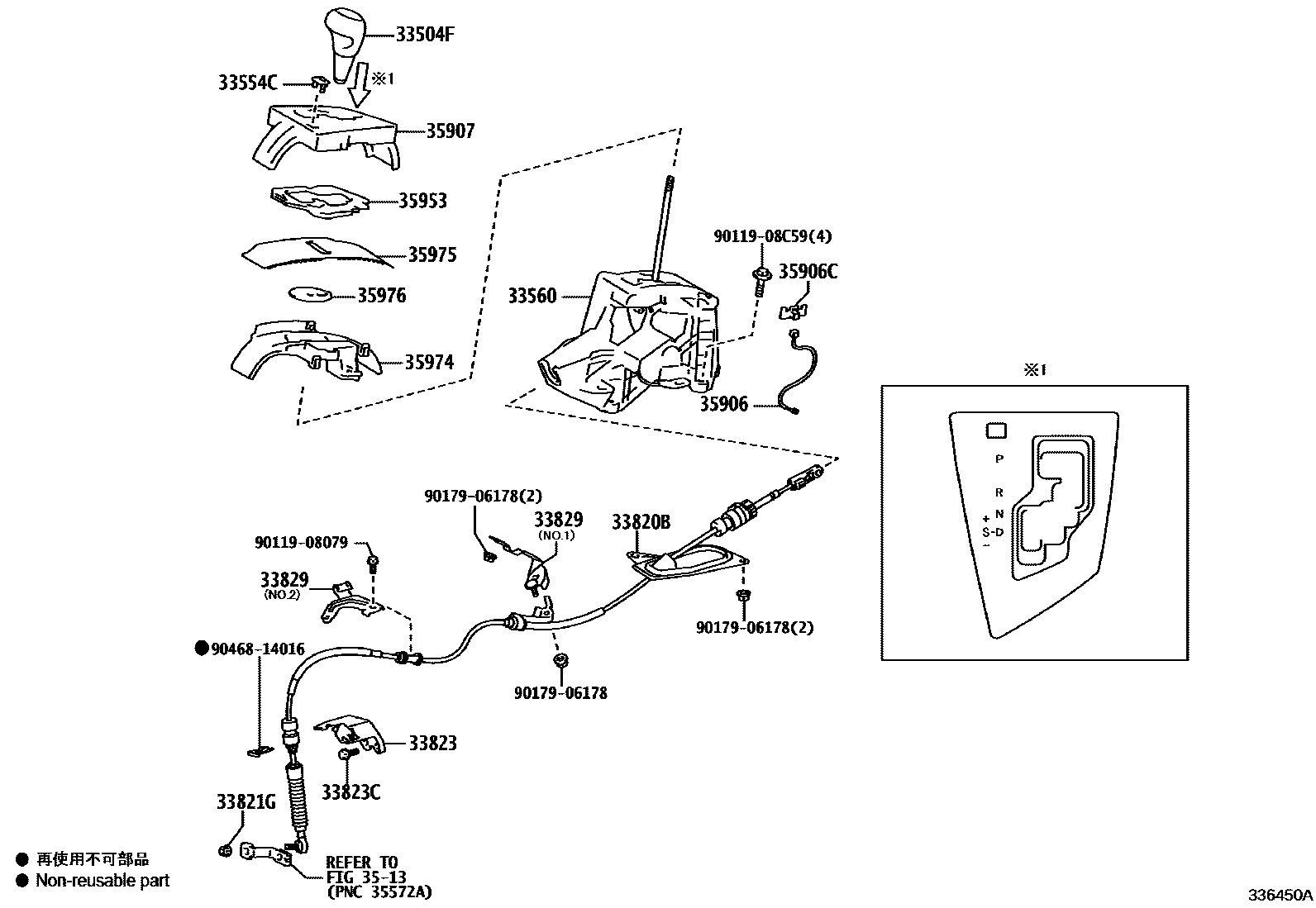

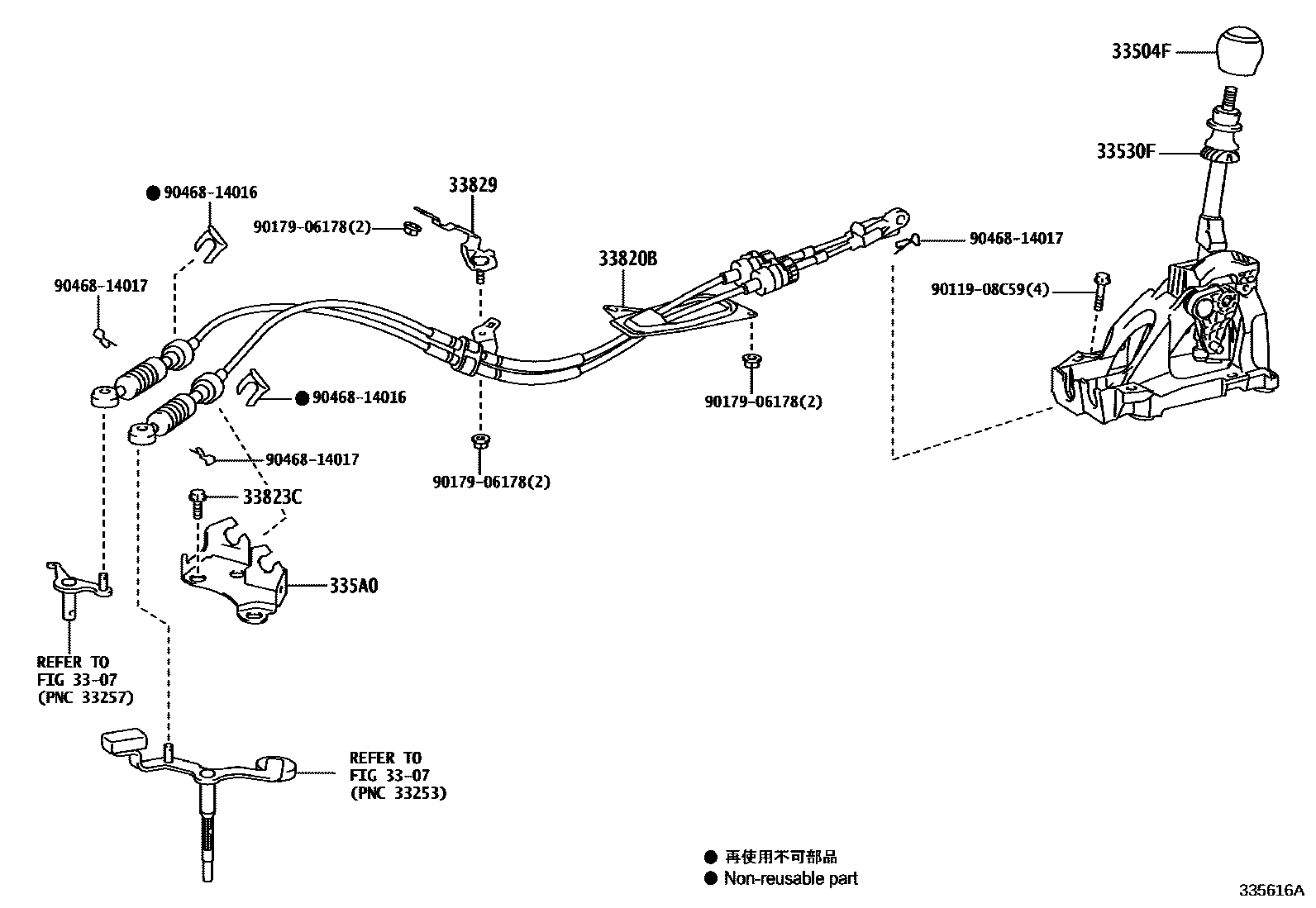

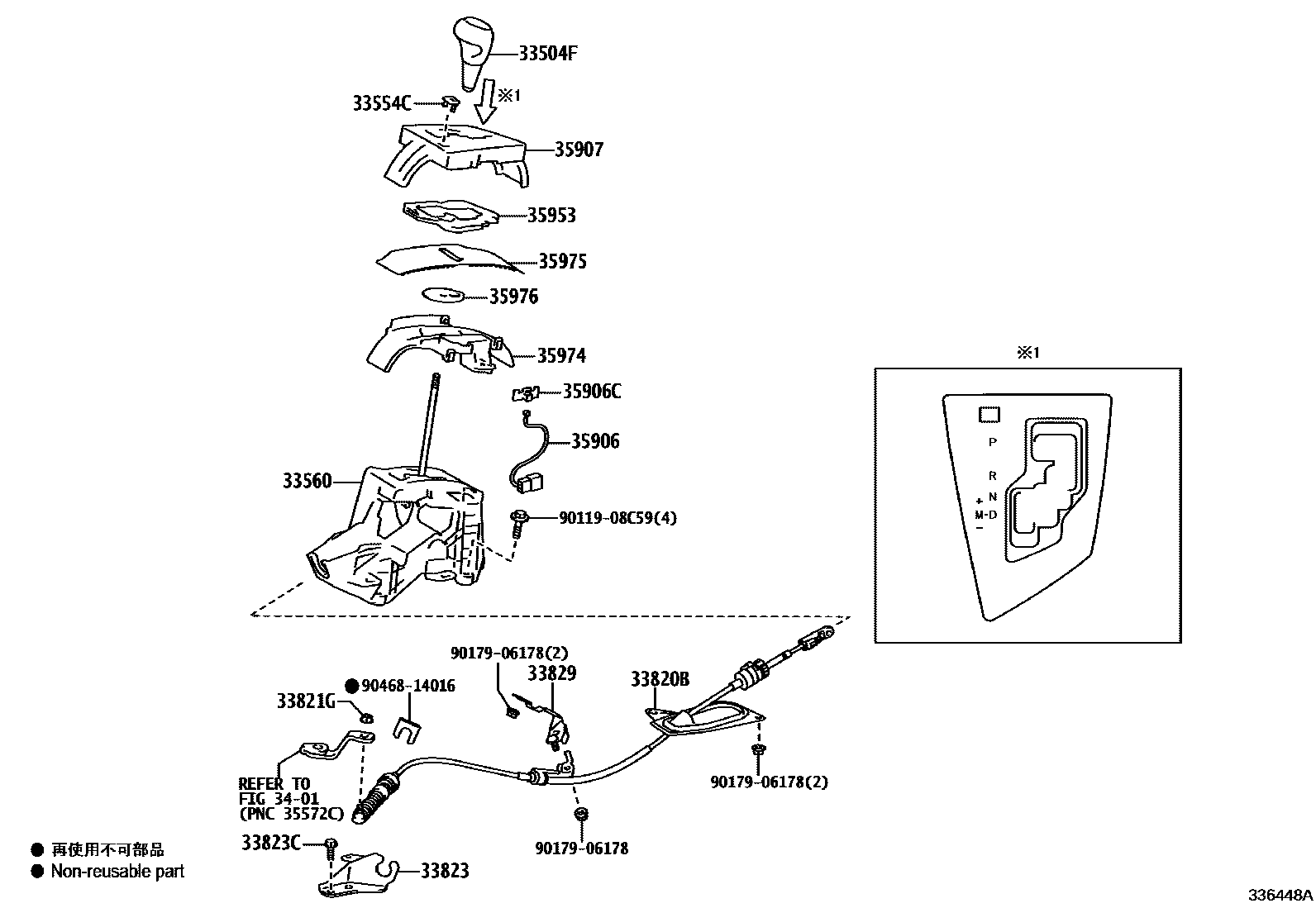

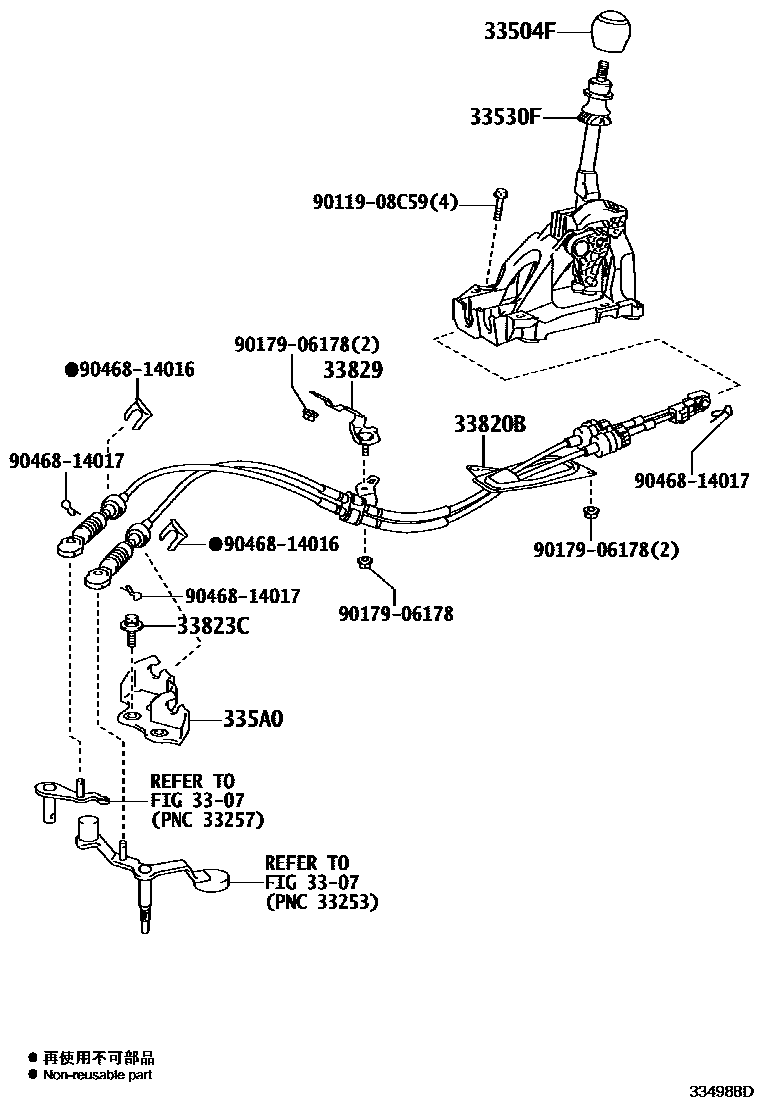

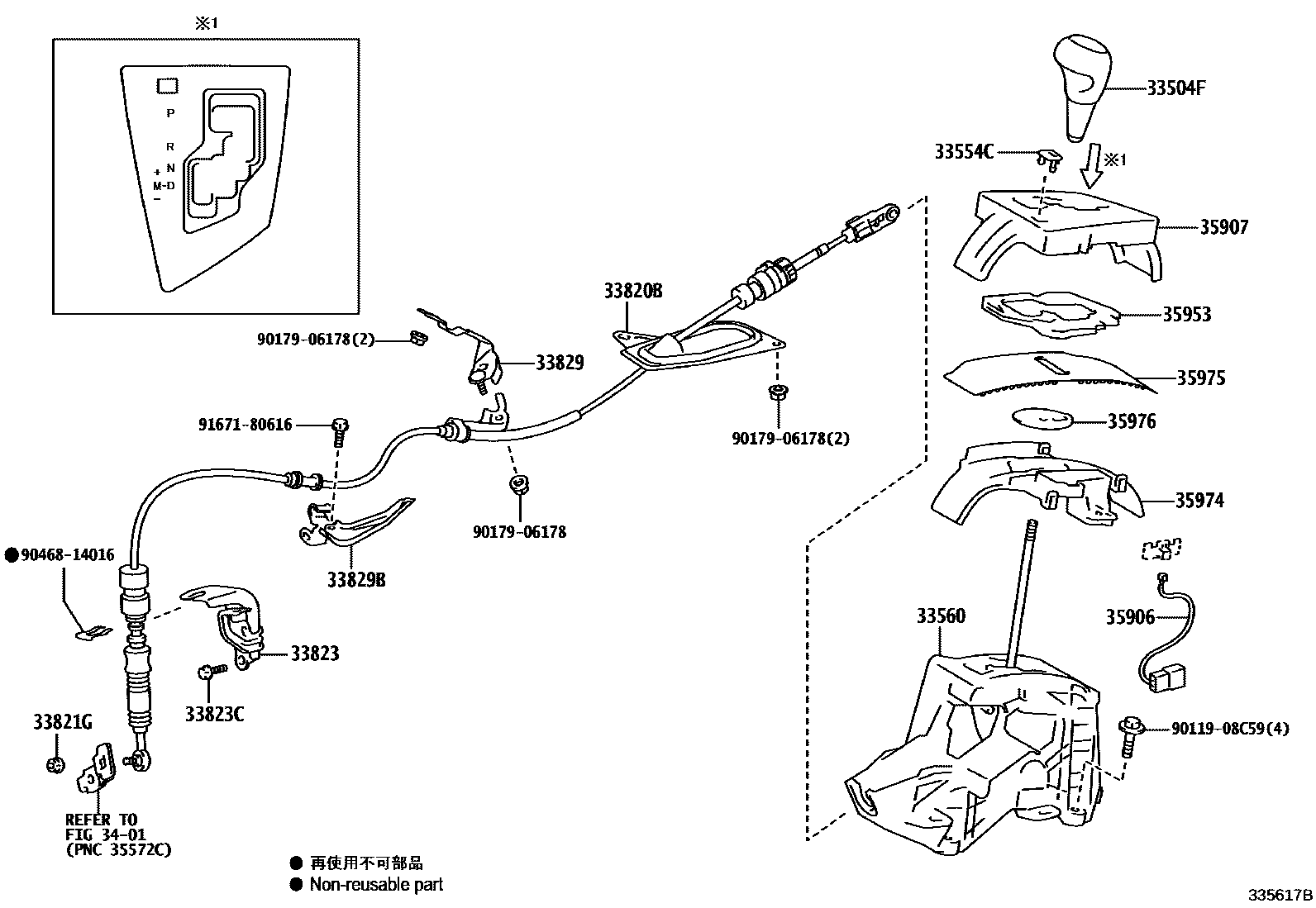

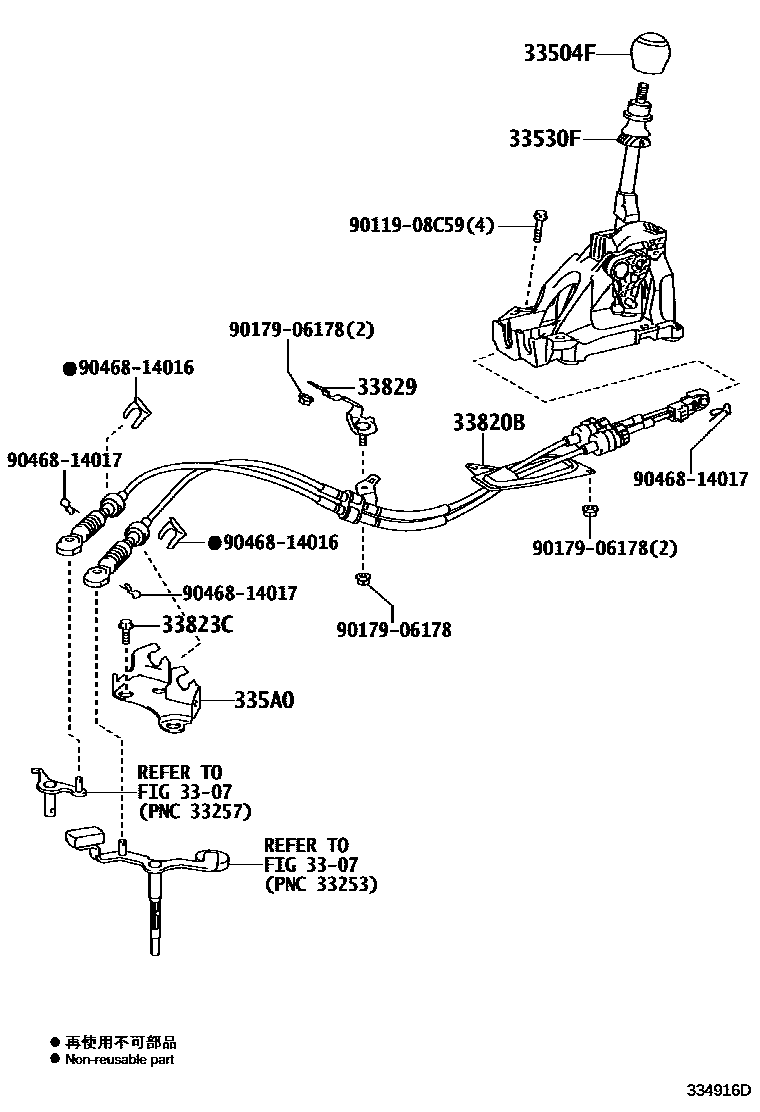

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33530F | Shift lever assembly (for floor shift) | 33530-12C40 |
| 33554C | Shift lock release button cover | 33554-02120 |
| 33560 | Shift lock control unit assembly | 33560-02300 · 33560-02310 |
| 335A0 | Control cable bracket assembly | 335A0-12020 · 335A0-12021 · 335A0-12030 |
| 33820B | Transmission control cable assembly | 33820-12E80 · 33820-12E90 · 33820-12F30 · 33820-12F40 · 33820-12F60 · 33820-12G60 · 33820-12G70 · 33820-12G80 · 33820-12J10 |
| 33821G | Nut (for transmission control cable) | 90179-08040 |
| 33823 | No. 1 transmission control cable bracket | 33823-02170 · 33823-02290 · 33823-02300 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-08C60 |
| 33829 | Transmission control cable bracket | 33829-02150 · 33829-02170 · 33829-12170 |
| 33829B | Transmission control cable clip | 33829-02280 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-02160 |
| 35906C | Indicator chip | 35906-49005 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-02320 · 35907-02330 |
| 35953 | Position indicator light guide | 35953-02110 |
| 35974 | Position indicator light lower shell | 35974-02160 |
| 35975 | Slide cover (for position indicator light) | 35975-02140 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-02120 |
