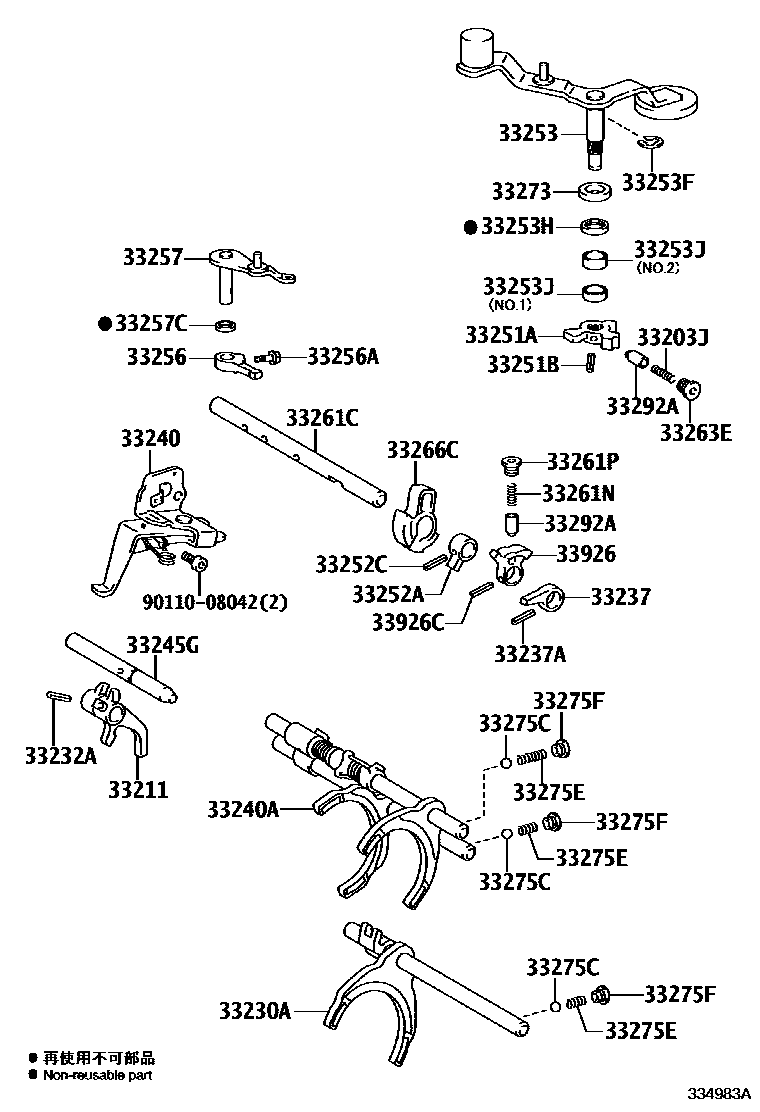

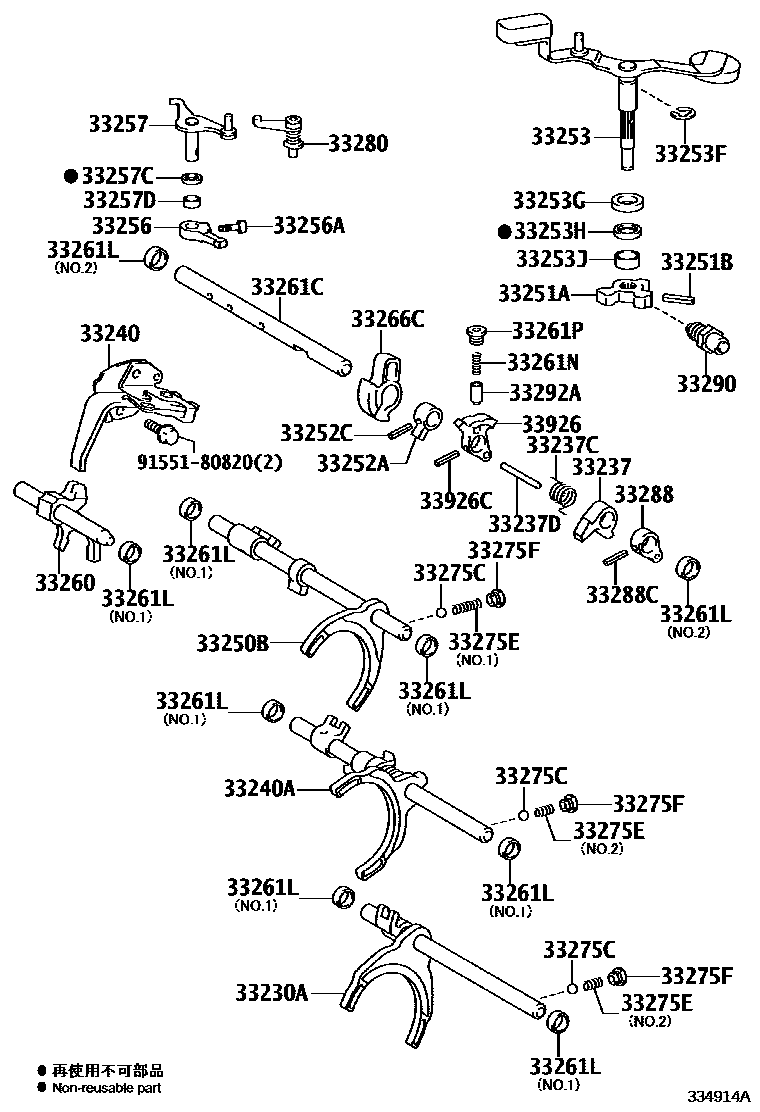

Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33203J | Spring (steel ball for shift lever shaft) | 90501-12221 |
| 33211 | Reverse Shift Fork | 33211-20050 |
| 33230A | No. 1 shift fork shaft assembly | 33230-0D010 · 33230-20051 · 33230-20060 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33237 | Separate guide block | 33237-0D020 · 33237-20010 · 33237-20030 |
| 33237A | Slotted spring pin (for detaching guide blocks) | 90254-05001 |
| 33237C | Torsion spring (for separating guide block) | 90508-27001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33240 | Reverse shift arm bracket assembly | 33240-20041 · 33240-20042 · 33240-20050 |
| 33240A | No. 2 shift fork shaft assembly | 33240-0D060 · 33240-20072 · 33240-20080 |
| 33245G | No. 4 shift fork shaft | 33245-20030 |
| 33250B | No. 3 shift fork shaft assembly | 33250-0D180 · 33250-20130 |
| 33251A | Internal shift lever No. 1 | 33251-0D080 · 33251-12120 · 33251-20120 · 33251-20130 · 33251-42020 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 |
| 33252A | Internal shift lever No. 2 | 33252-0D050 · 33252-20060 · 33252-20070 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-12020 · 33253-12030 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253G | Spacer (for outer shift lever) | 90560-18017 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-14008 · 90384-18018 · 90384-A0020 |
| 33256 | Internal gear selector | 33256-0D080 · 33256-20030 · 33256-20040 |
| 33256A | Fixing bolt (for interior gear selector) | 90105-08079 · 90110-08041 |
| 33257 | External gear selector | 33257-12030 · 33257-20041 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-15002 · 90384-A0021 |
| 33260 | Reverse shift fork shaft assembly (MTM) | 33260-0D010 · 33260-20010 |
| 33261C | shift lever shaft | 33261-0D120 · 33261-20120 · 33261-20150 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-14008 · 90384-16005 · 90384-A0022 · 90384-A0023 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11107 · 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33263E | Screw plug (for gear selector shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-0D050 · 33266-20061 · 33266-20062 · 33266-20070 |
| 33273 | No. 1 shift lever shaft cover gasket | 90560-18017 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11110 · 90501-13087 · 90501-13088 · 90501-13089 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33280 | Reverse gear positioning pin assembly | 33280-20050 |
| 33288 | Gear selector stop | 33288-0D020 · 33288-20020 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-0D040 · 33290-12020 · 33290-52040 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33926 | Front inner shift lever | 33926-0D030 · 33926-20011 · 33926-20021 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
