Toyota COROLLA 离合器和分离叉 — Figure 3101

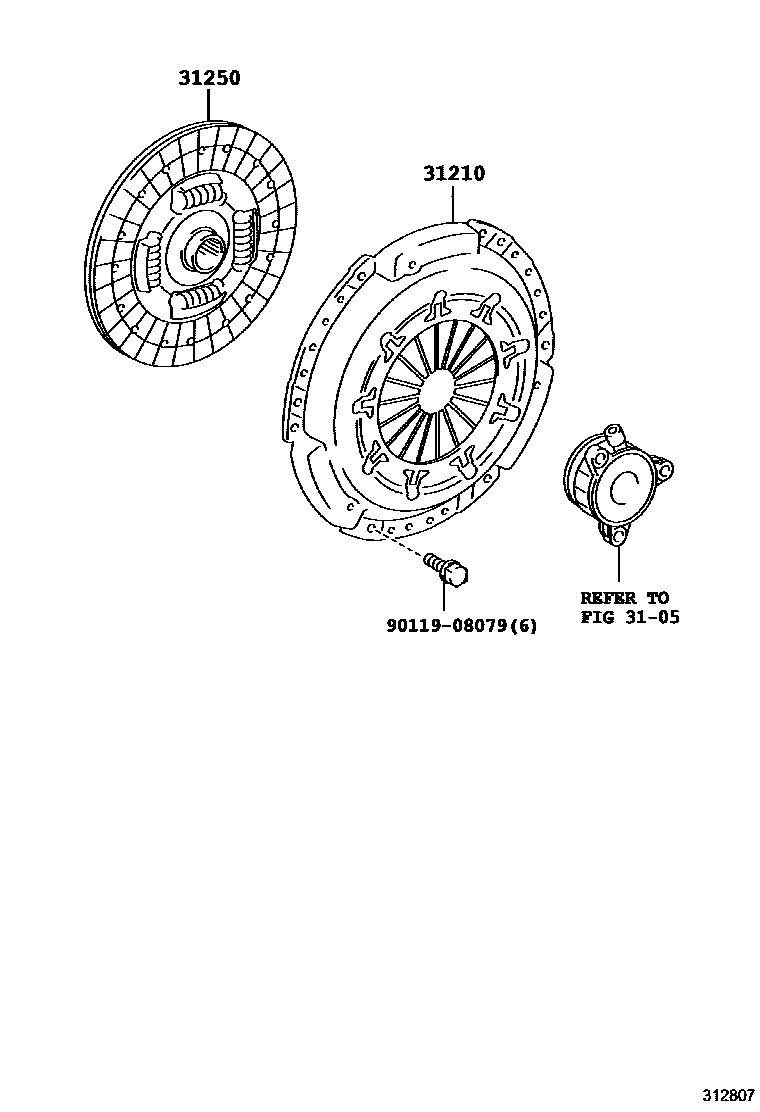

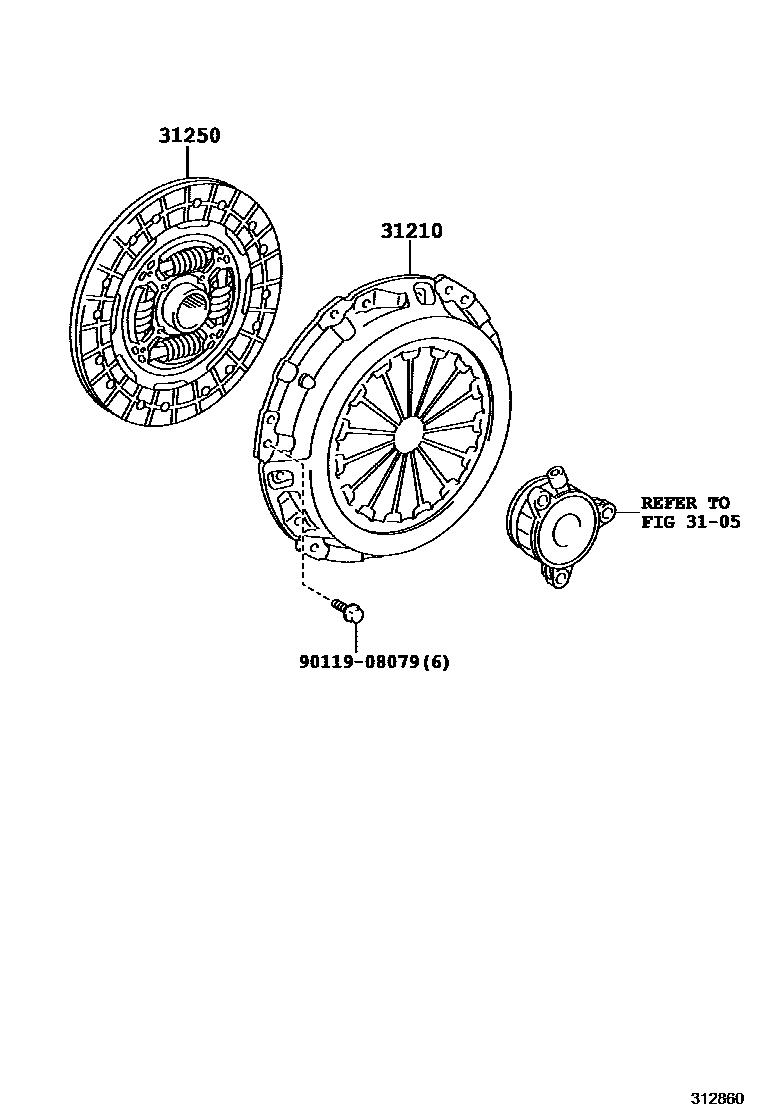

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31210 | Clutch cover assembly | 31210-02280 · 31210-42030 |
| 31250 | Clutch disc assembly | 31250-02281 · 31250-02282 · 31250-12640 · 31250-12641 |
