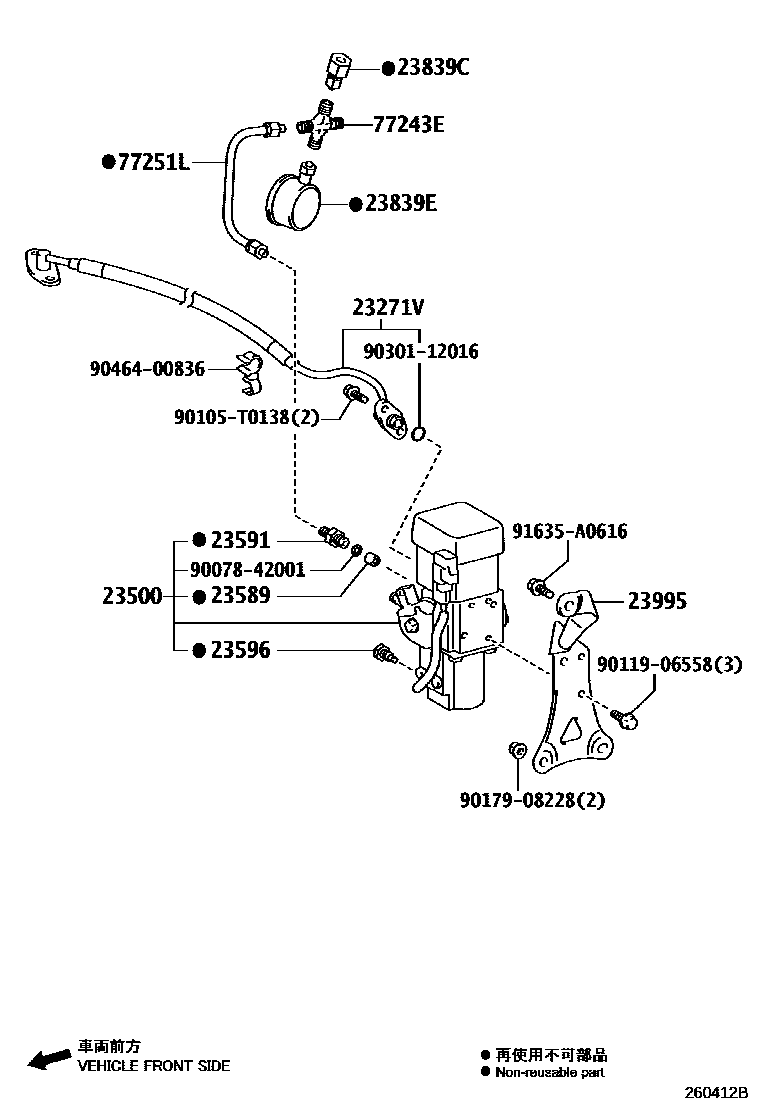

Toyota COROLLA LPG或CNG调节器 — Figure 2603
Toyota COROLLA EPC diagram 2603, LPG或CNG调节器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23271V | fuel hose | 23271-37060 |
| 23500 | LPG (CNG) regulator assembly | 23500-0T030 · 23500-0T031 |
| 23589 | LPG regulator filter | 23589-0T020 |
| 23591 | No. 1 fuel hose connector | 23591-0T030 |
| 23596 | Screw plug (for LPG regulator body) | 23596-0T020 |
| 23839C | fuel pipe plug | 23839-0T040 |
| 23839E | fuel pipe plug | 23839-0T030 |
| 23995 | No. 1 regulator bracket | 23995-0T020 |
| 77243E | No. 1 fuel pipe joint | 77243-02070 |
| 77251L | main fuel pipe | 77251-02490 · 77251-02491 · 77251-02A60 |
