Toyota COROLLA Alternator — Figure 1903

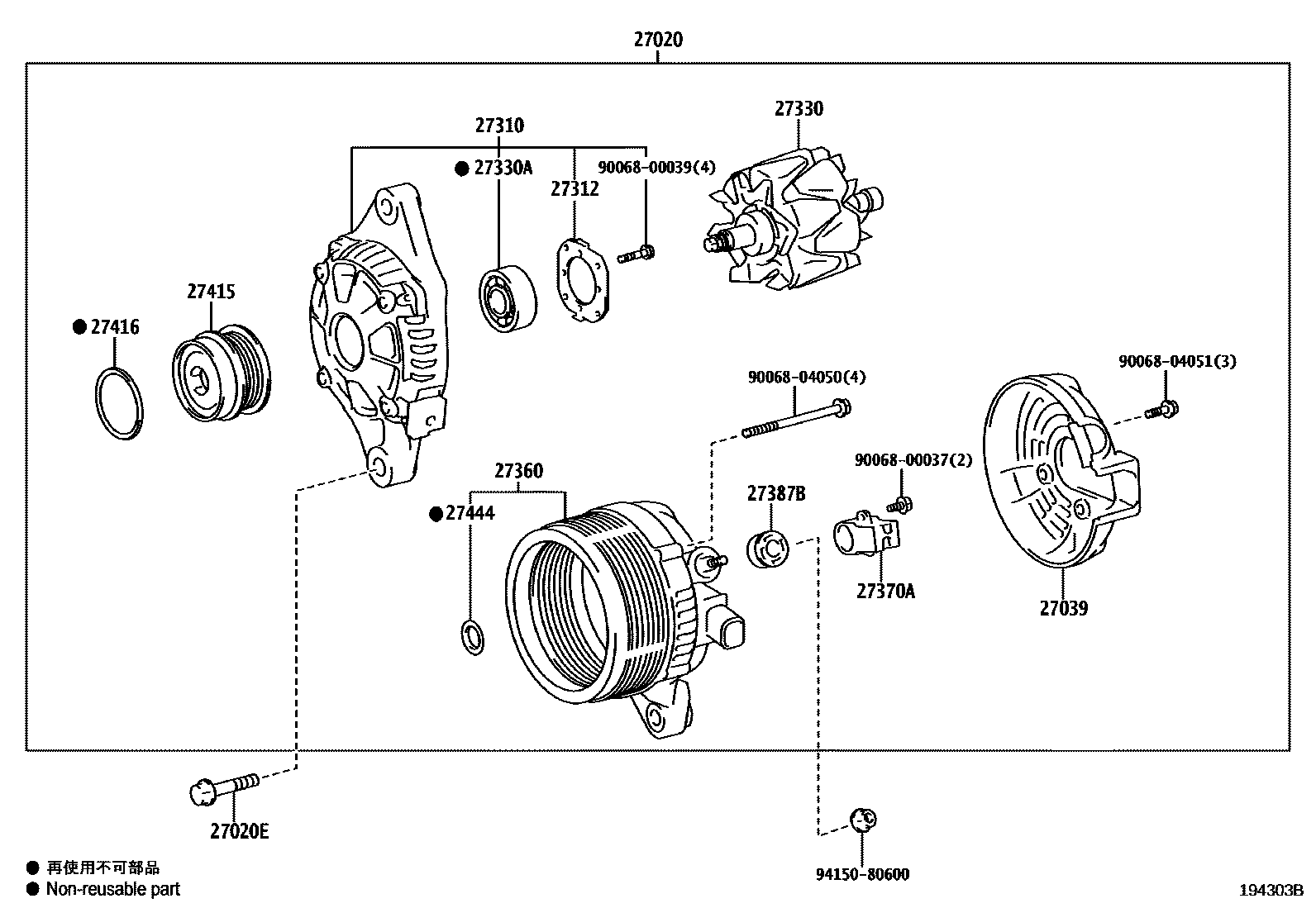

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

Toyota COROLLA Alternator EPC diagram — 194303B
Alternator — 194303B (201403 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0T320
27020EBolts (for generator)90105-10307
27039Alternator Rear End Cover27039-0T300
27310Alternator Drive End Frame Assembly27310-0T460
27312Retainer Plate27312-0T300
27330Alternator Rotor Assembly27330-0T300
27330ABearings (for generator rotor)90068-10051
27360Alternator Stator Coil Assembly27360-0T300
27370AAlternator Brush Holder Assembly27370-0T300
27387BGenerator terminal insulation pad27387-0T300
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T060 · 27415-0T080
27416Generator pulley cover27416-0W050
27444Generator bearing cap seals27444-0T300
