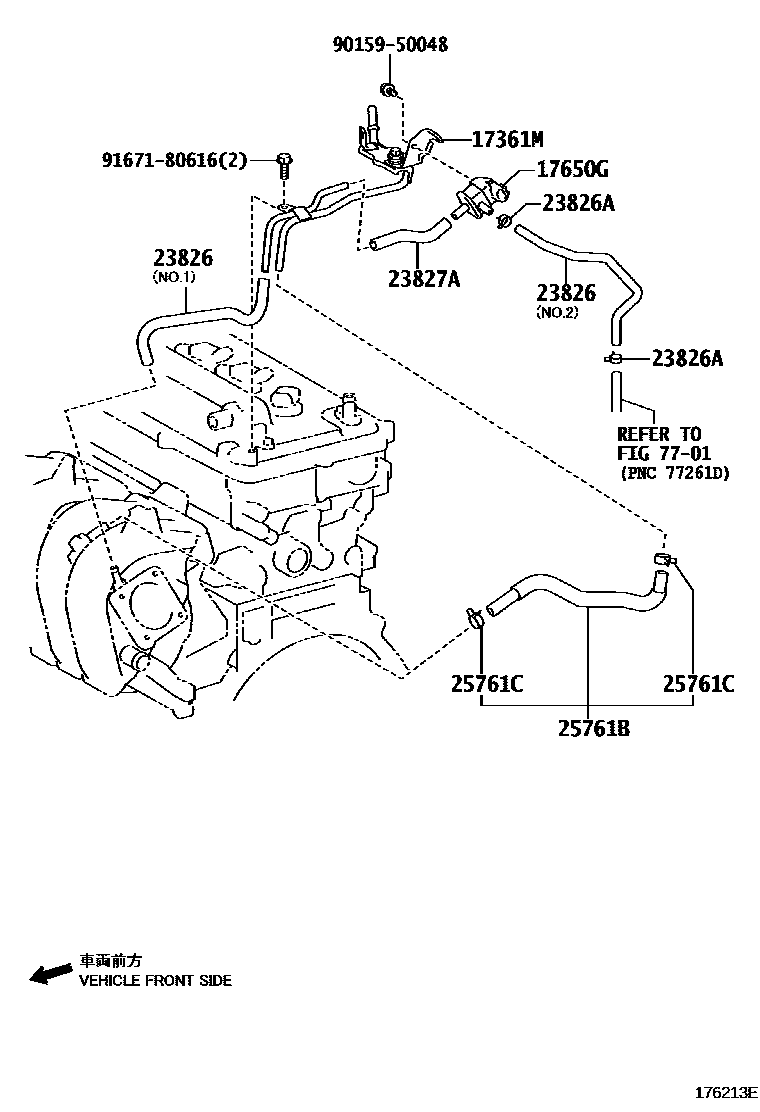

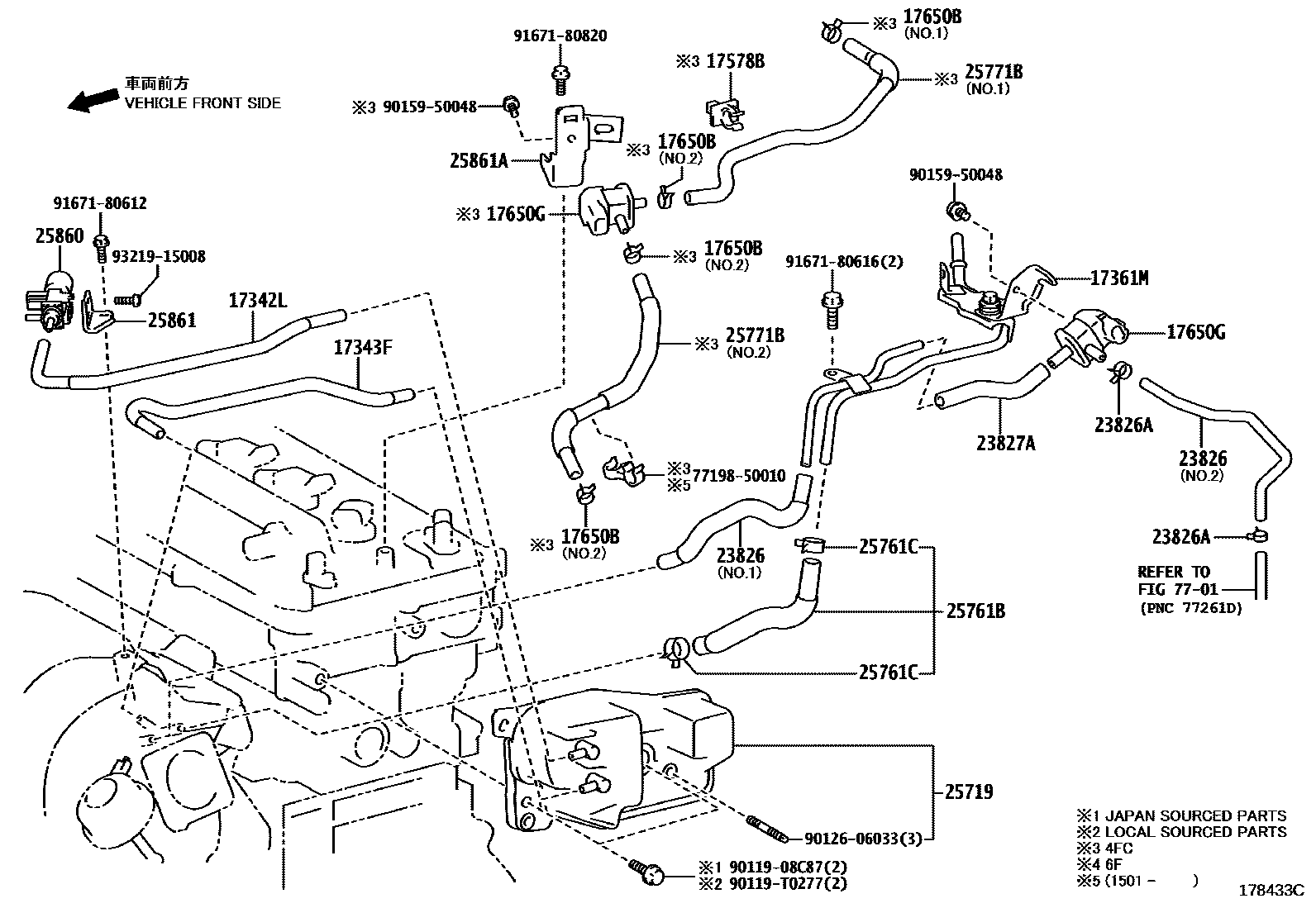

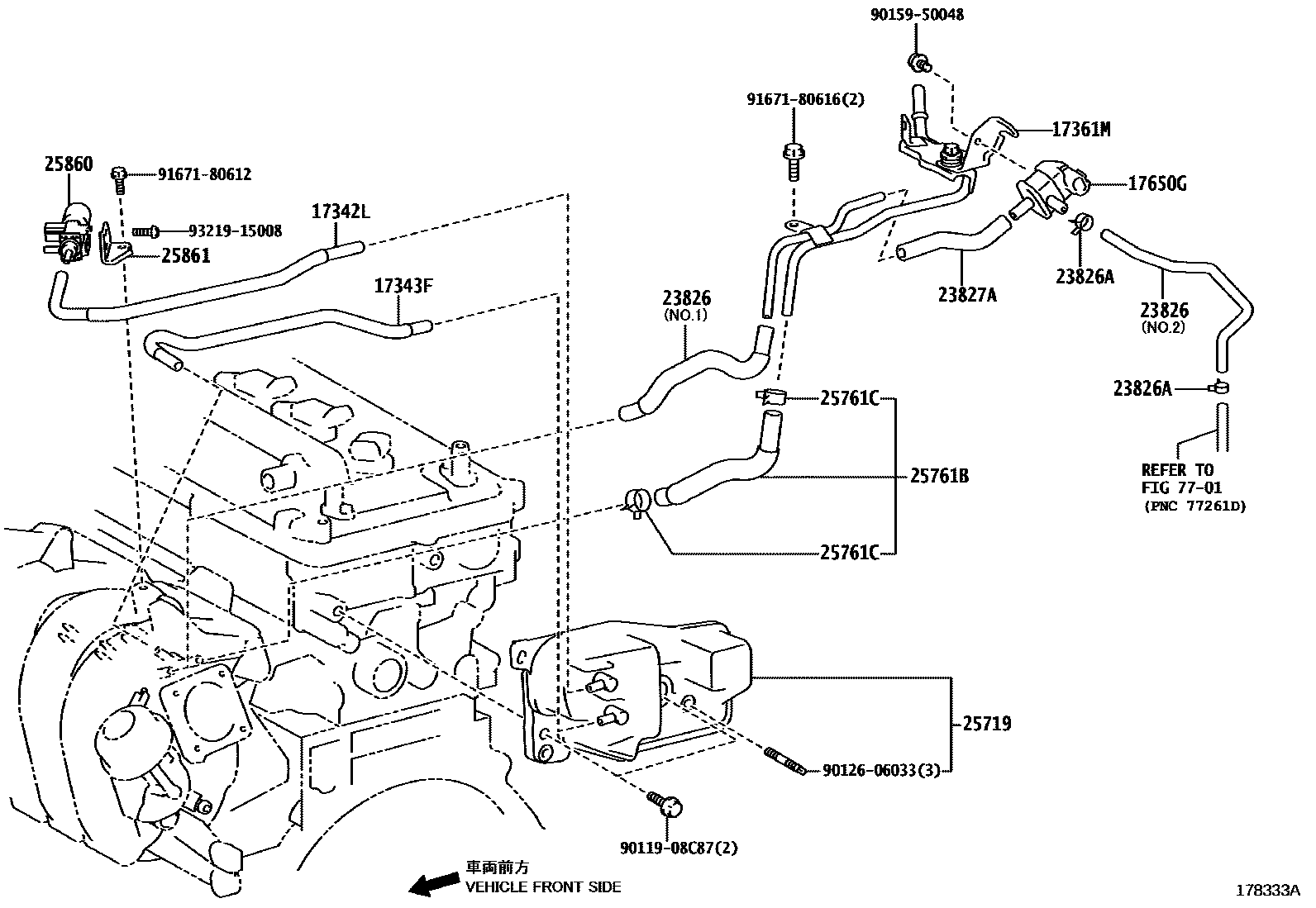

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17342L | Air hose No. 2 | 17342-37060 · 17342-37080 |
| 17343F | No. 3 air hose | 17343-0T010 · 17343-37040 |
| 17361M | air tube | 17361-0T050 · 17361-37011 · 17361-37070 · 17361-37080 |
| 17578B | Pipe clamp | 17578-36010 |
| 17650B | Clamp (for vacuum switching valve hose) | 96132-41500 · 96136-41801 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T130 · 23826-0T200 · 23826-37021 · 23826-37190 · 23826-37230 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0T060 · 23827-37020 · 23827-37060 |
| 25719 | Vacuum pressure tank | 25719-37010 · 25719-37011 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37030 · 25761-37080 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25771B | No. 2 vacuum transfer hose | 25761-0T041 · 25771-0T020 |
| 25860 | No. 1 vacuum switch valve assembly | 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
| 25861A | No. 2 vacuum switch valve bracket | 25861-37070 |
