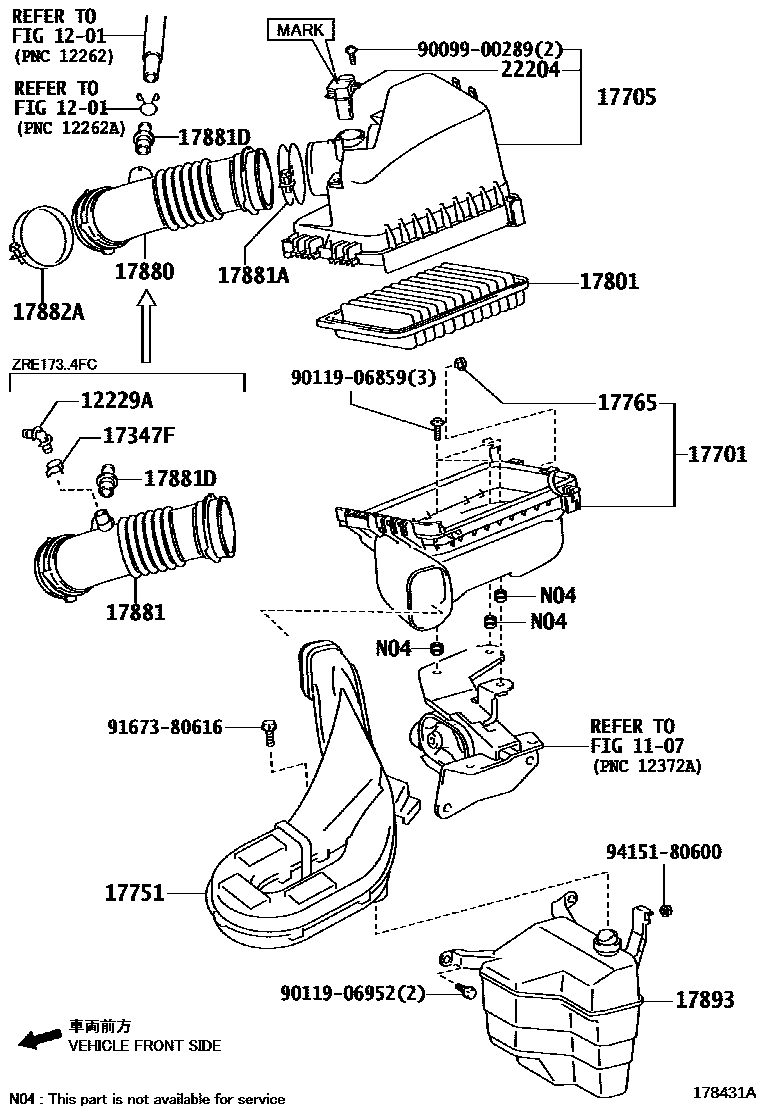

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-36010 |
| 17347F | Clamps or clips (for air hoses) | 96136-41901 |
| 17701 | Air filter housing sub-assembly | 17701-0T120 |
| 17705 | Air filter cover sub-assembly | 17705-0T151 |
| 17751 | No. 1 air filter air inlet | 17751-0T170 |
| 17765 | No. 1 air filter stay | 17706-21010 |
| 17801 | Air filter element sub-assembly | 17801-21050 |
| 17880 | Air cleaner hose assembly | 17880-0T270 · 17880-0T320 · 17880-0T330 · 17880-37090 |
| 17881 | No. 1 air cleaner hose | 17881-37310 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17881D | Connector tube (for air cleaner hose) | 12229-21010 · 12229-36010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10780 |
| 17893 | Intake resonator | 17893-0T100 |
| 22204 | Intake air flow meter assembly | 22204-0V010 · 22204-0V020 · 22204-28010 |
