Toyota COROLLA Exhaust Pipe — Figure 1702

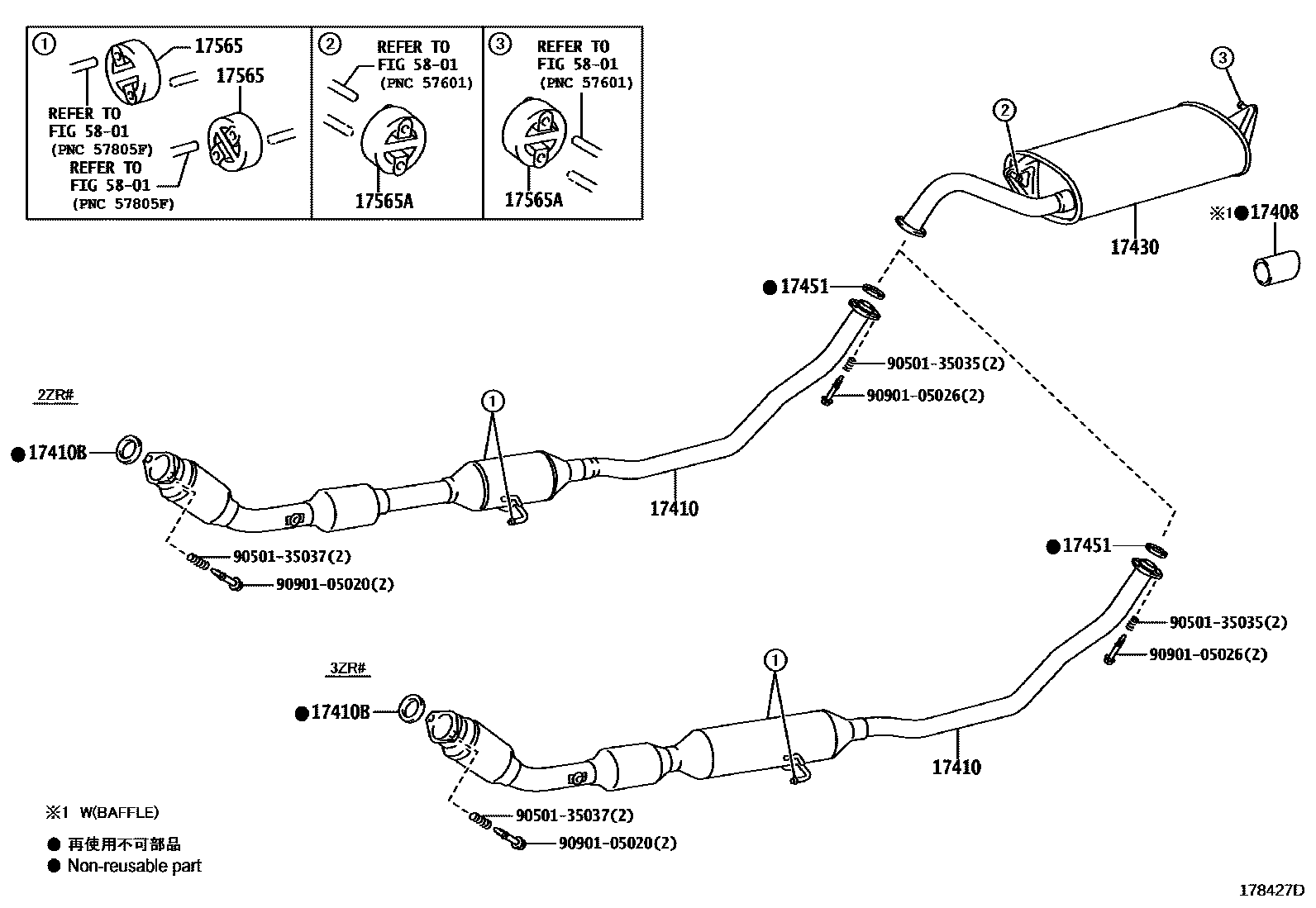

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-37031 |
| 17410 | Front exhaust pipe assembly | 17410-0T800 · 17410-0T810 · 17410-0T820 · 17410-0T830 · 17410-0TG90 · 17410-0TJ00 |
| 17410B | Exhaust pipe gasket | 17451-28040 · 17451-28070 |
| 17430 | Exhaust tailpipe assembly | 17430-0T320 · 17430-0T400 · 17430-0T730 |
| 17451 | Exhaust pipe gasket | 17451-28032 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0T070 · 17565-22030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0T080 · 17565-22040 |
