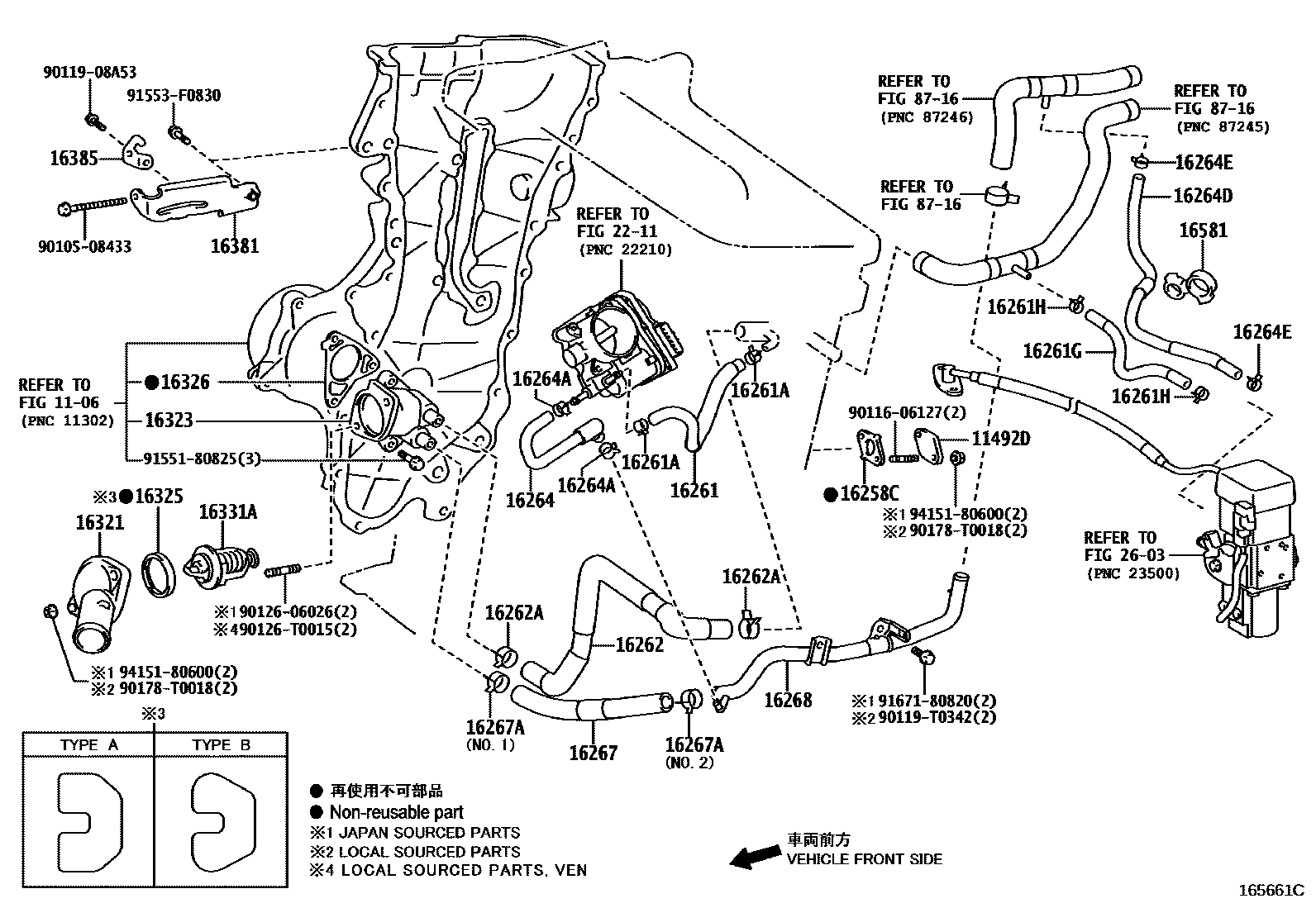

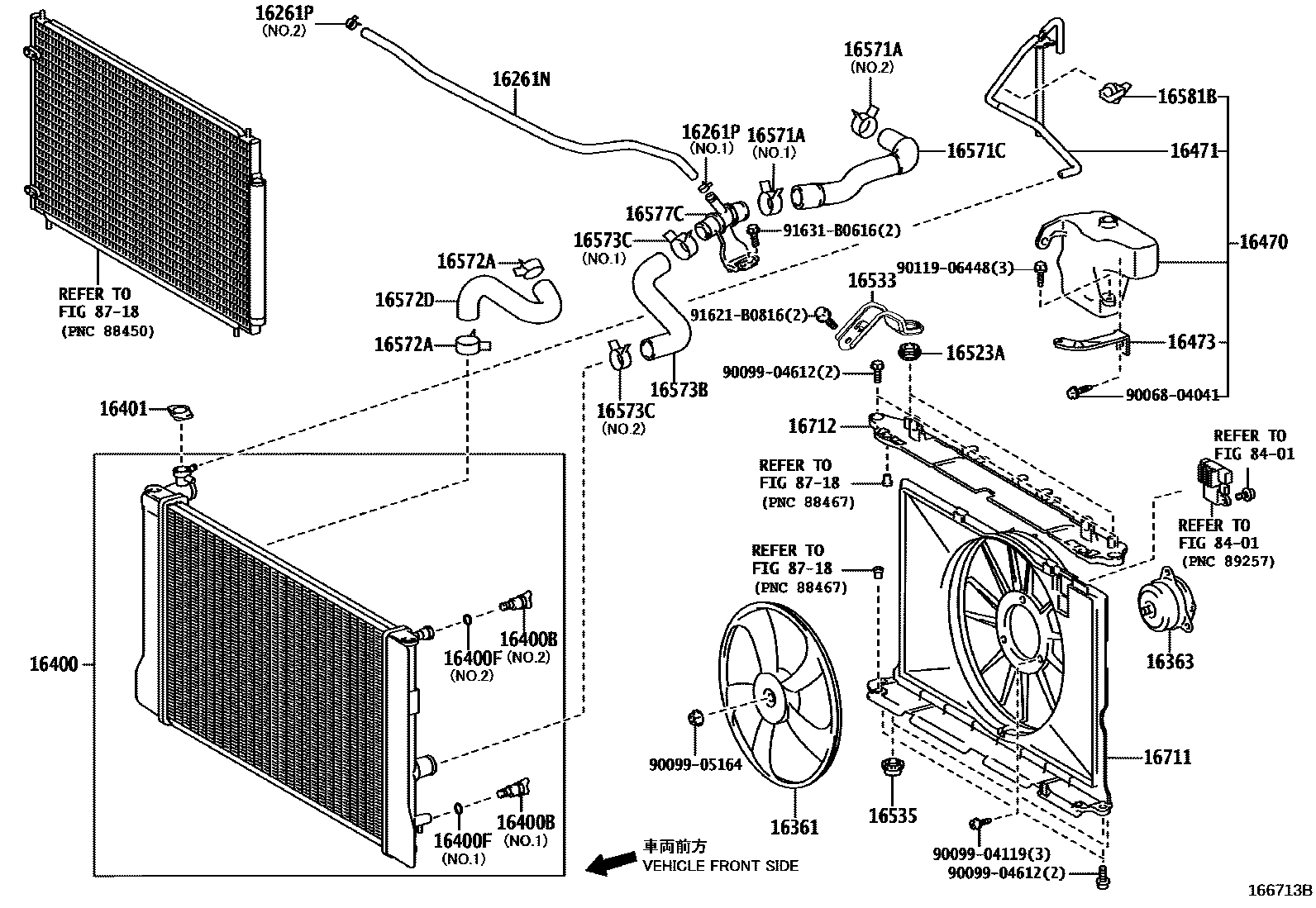

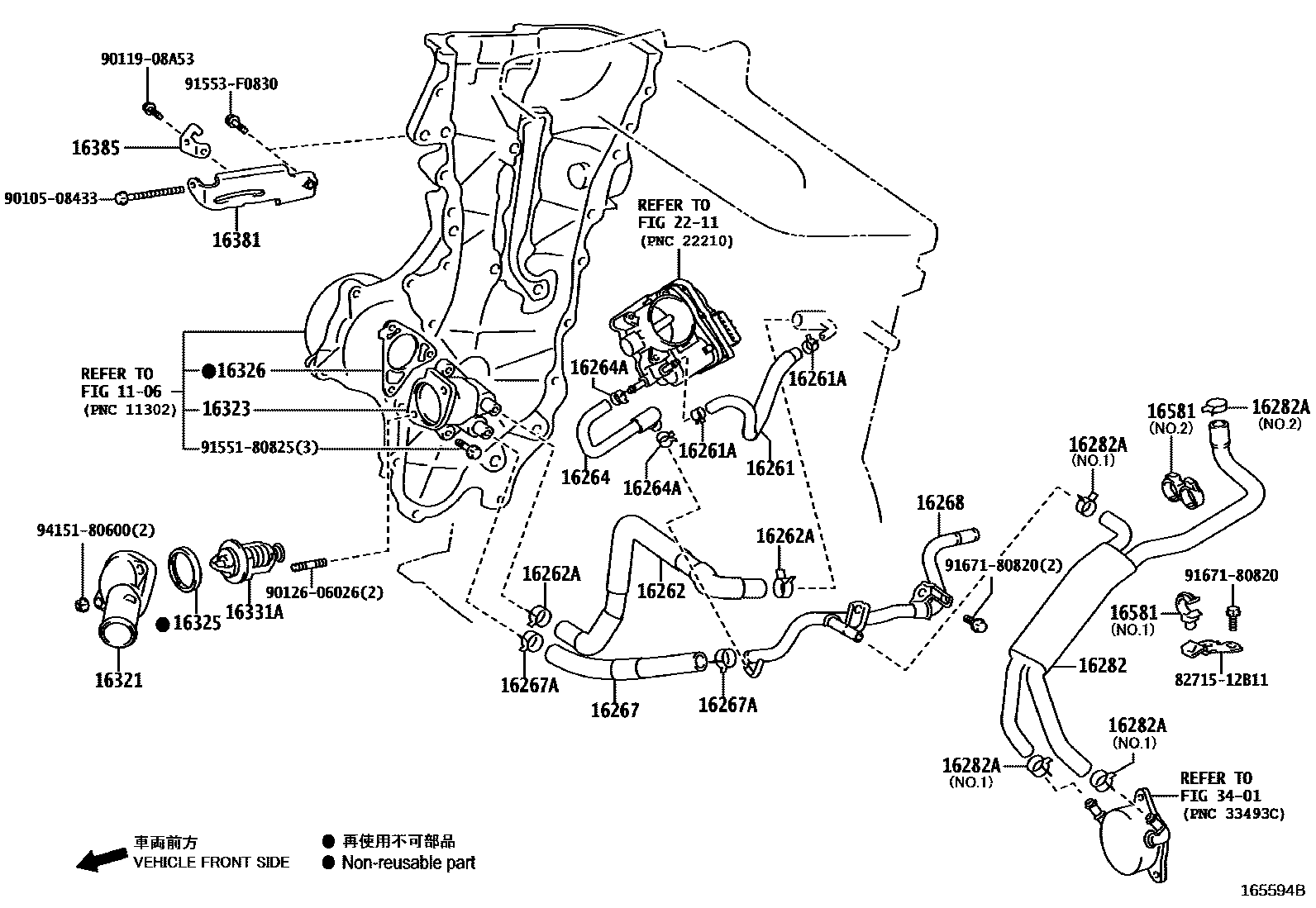

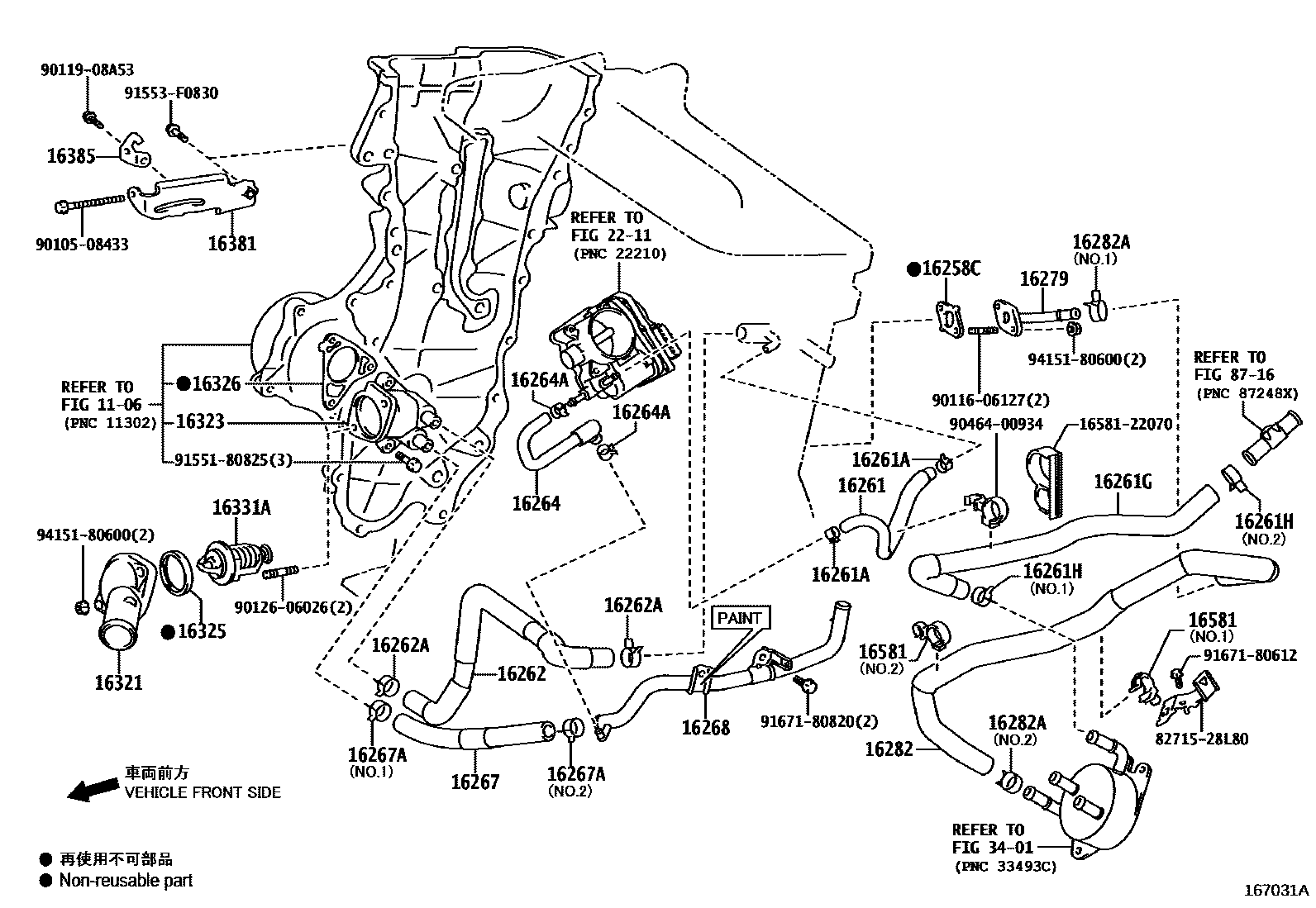

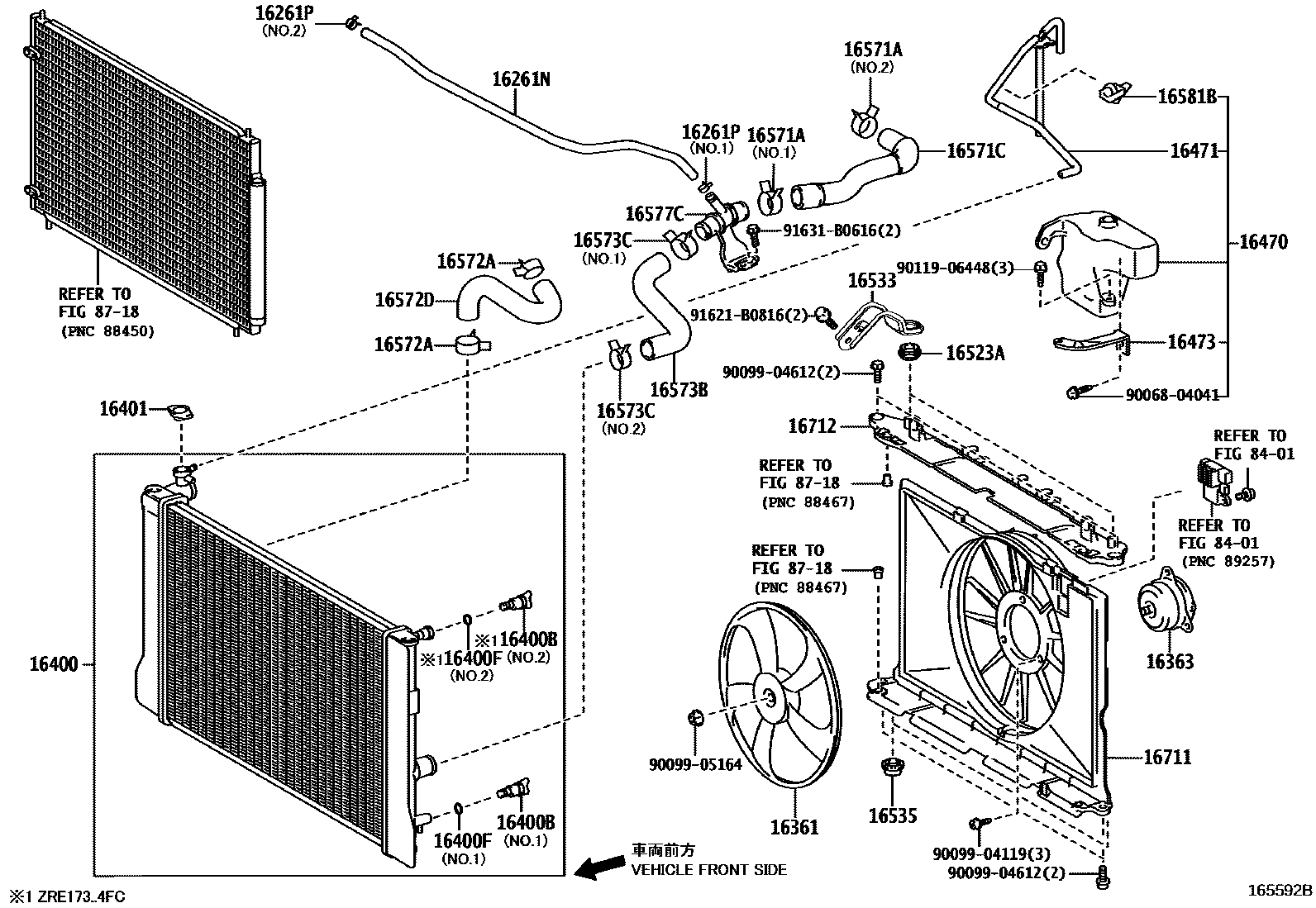

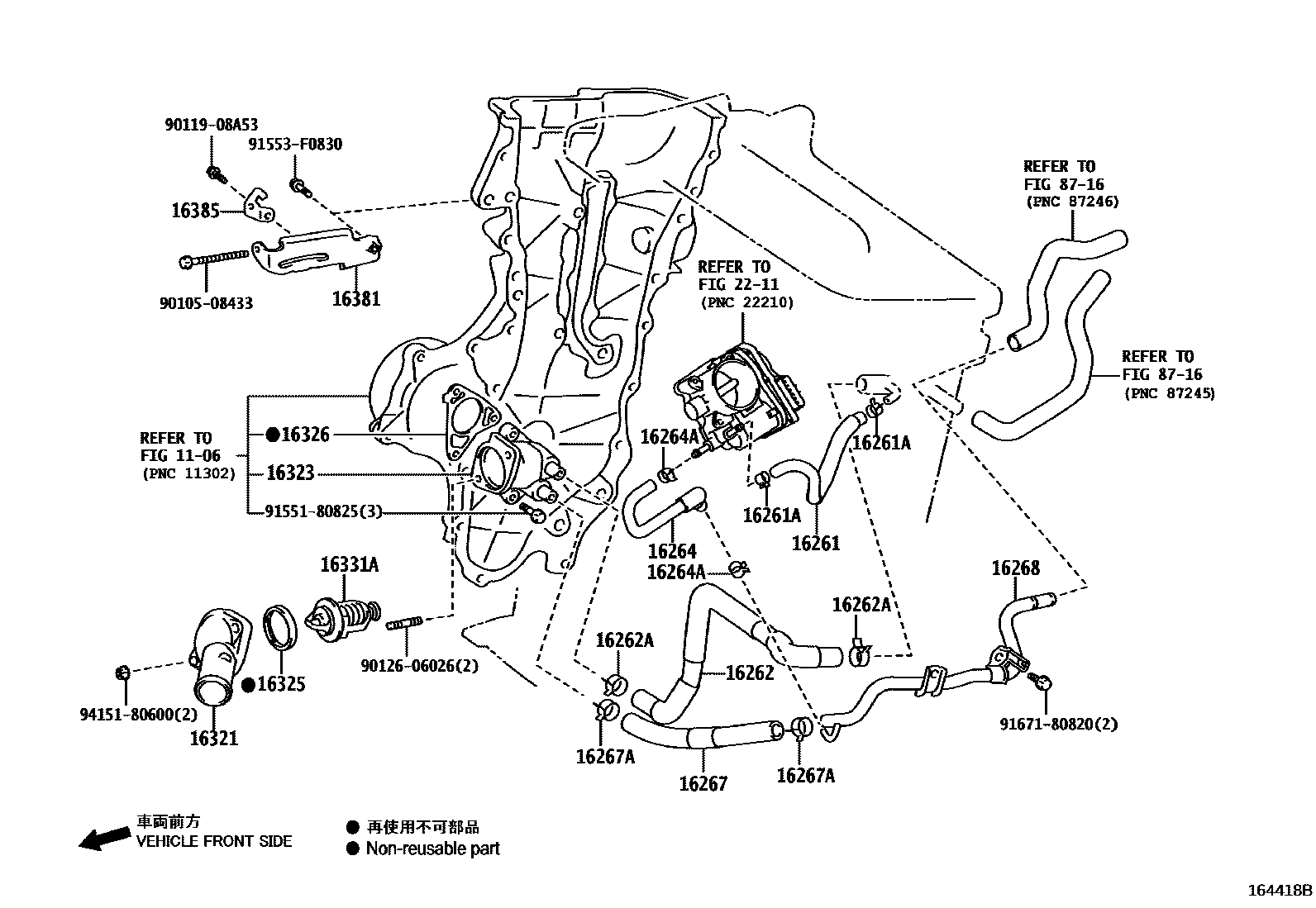

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11492D | No. 1 sealing plate | 11492-37010 |
| 16258C | Gasket (for water bypass pipe) | 16258-28040 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T070 · 16261-0T121 · 16261-0T210 · 16261-37022 · 16261-37052 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0059 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-37060 · 16261-37140 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42101 · 96136-52201 · 96137-41501 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0D192 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96136-41901 |
| 16262 | water inlet hose | 16262-0T020 · 16262-0T030 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-T0020 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T081 · 16264-0T110 · 16264-0T160 · 16264-37022 · 16264-37042 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0059 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-37090 · 16264-37091 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T050 · 16267-0T360 · 16267-0T370 · 16267-37010 · 16267-37020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0020 · 96136-42501 · 96136-52701 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T100 · 16268-0T110 · 16268-0T120 · 16268-0T340 · 16268-37021 · 16268-37031 · 16268-37041 |
| 16279 | No. 3 water bypass pipe | 16279-0T020 · 16279-37010 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-37010 · 16282-0T080 · 16282-37040 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96134-41900 · 96136-42101 · 96136-42501 · 96136-52201 |
| 16321 | water inlet | 16321-0T050 · 16321-0T060 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-37021 · 16323-37031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331A | thermostat | 90916-03144 · 90916-03145 |
| 16361 | Fan | 16361-0D240 · 16361-0T090 |
| 16363 | cooling fan motor | 16363-0D160 · 16363-0T100 |
| 16381 | Fan belt adjustment lever | 16381-0T040 · 16381-0T050 · 16381-37030 · 16381-37040 |
| 16385 | Fan belt adjustment slider | 16385-0T040 · 16385-37010 |
| 16400 | Radiator assembly | 16410-0D420 · 16410-0D460 · 16410-0D470 · 16410-0T070 · 16410-0T080 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-28530 |
| 16400F | Seal (for radiator drain switch) | 16418-20290 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-22010 · 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-0T070 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0T050 |
| 16473 | Bracket (for radiator reservoir) | 16473-64260 |
| 16523A | Radiator bracket cushion | 16523-0D100 · 16523-21050 |
| 16533 | Radiator upper bracket | 16533-0T100 |
| 16535 | Radiator lower support | 16535-0D161 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-0T080 · 16571-0T090 · 16571-37100 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-0T100 · 16572-37090 |
| 16573B | Radiator hose No. 3 | 16573-0D091 |
| 16573C | No. 3 radiator hose clamp or clip | 96136-44301 |
| 16577C | radiator pipe | 16577-0T080 |
| 16581 | Hose clamp (for water hose) | 16581-21030 · 16581-37010 · 16581-37110 · 16581-37170 |
| 16581B | Hose clamp (for radiator hose) | 16581-22130 |
| 16711 | fan cover | 16711-0T071 · 16711-0T120 · 16711-0T121 |
| 16712 | No. 2 fan cover | 16712-0D191 · 16712-0D192 |
