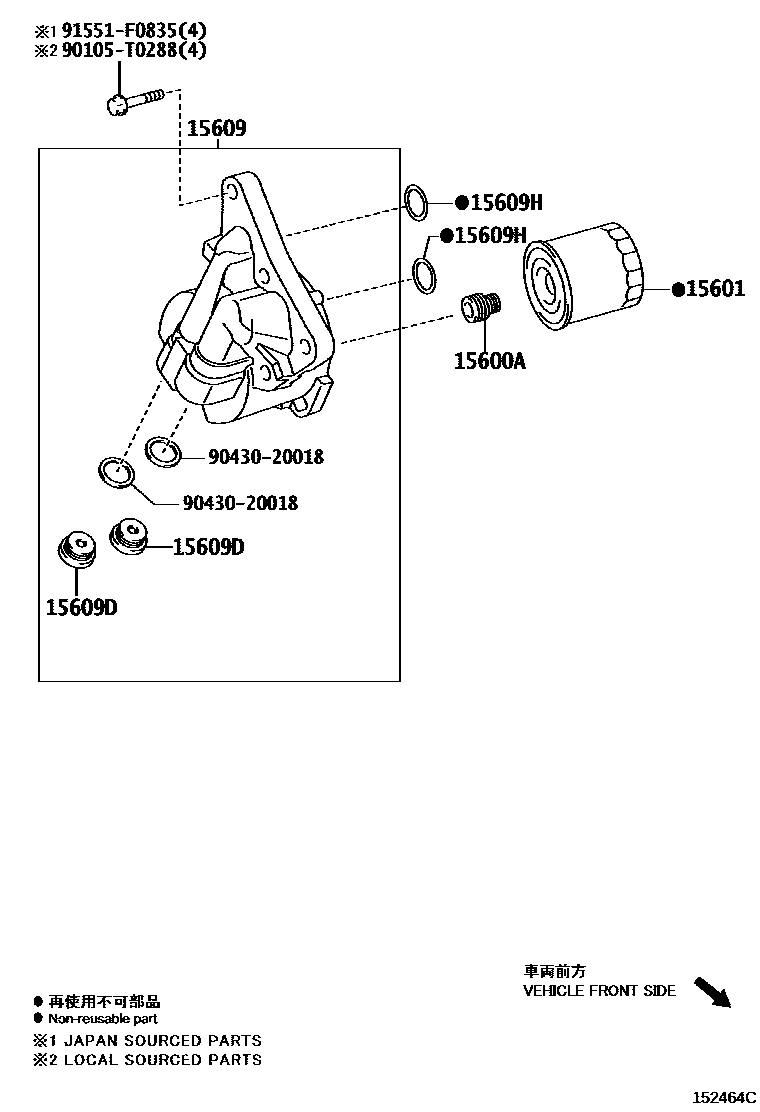

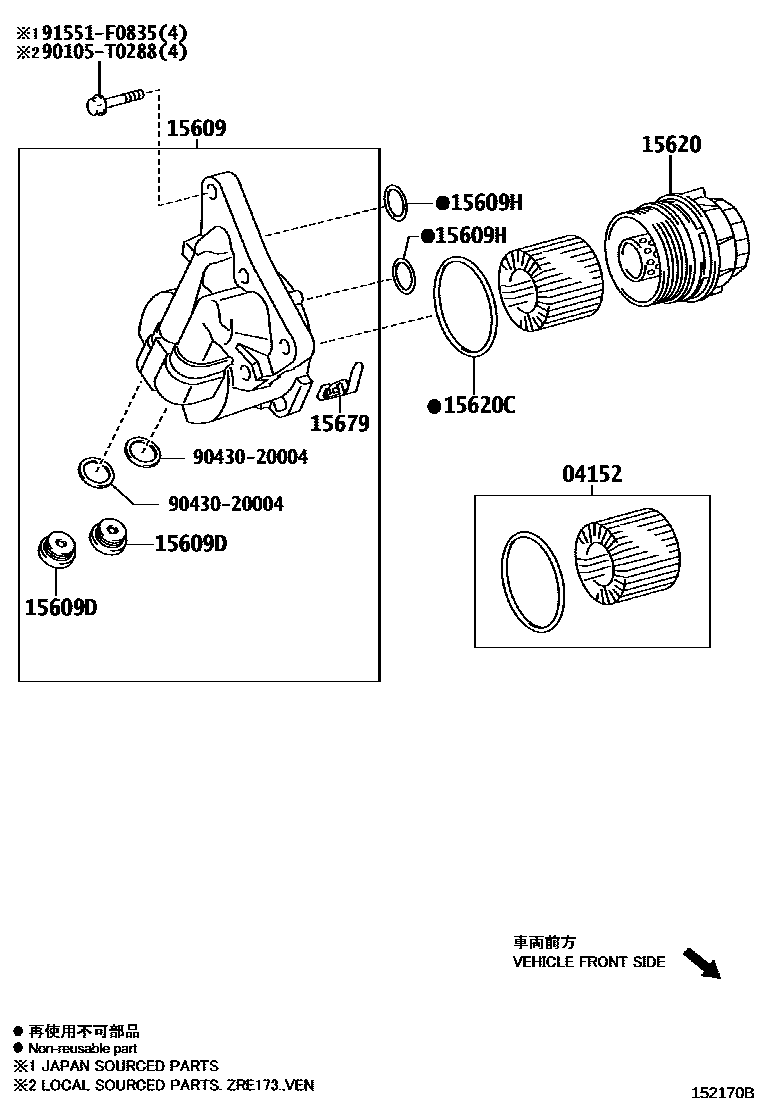

Toyota COROLLA Oil Filter — Figure 1502
Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-37010 |
| 15600A | Connector (for oil filter) | 90904-04006 |
| 15601 | Oil filter sub-assembly | 90915-10003 · 90915-TA001 |
| 15609 | Oil filter bracket sub-assembly | 15609-0T040 · 15609-37041 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 · 90341-T0007 |
| 15609H | O-ring (for oil filter bracket) | 90301-T0041 · 96723-24020 |
| 15620 | Oil filter cover assembly | 15620-37010 |
| 15620C | Gasket (for oil filter cover) | 90301-69011 |
| 15679 | Oil filter bracket clip | 15679-37010 · 15679-37011 |
