Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

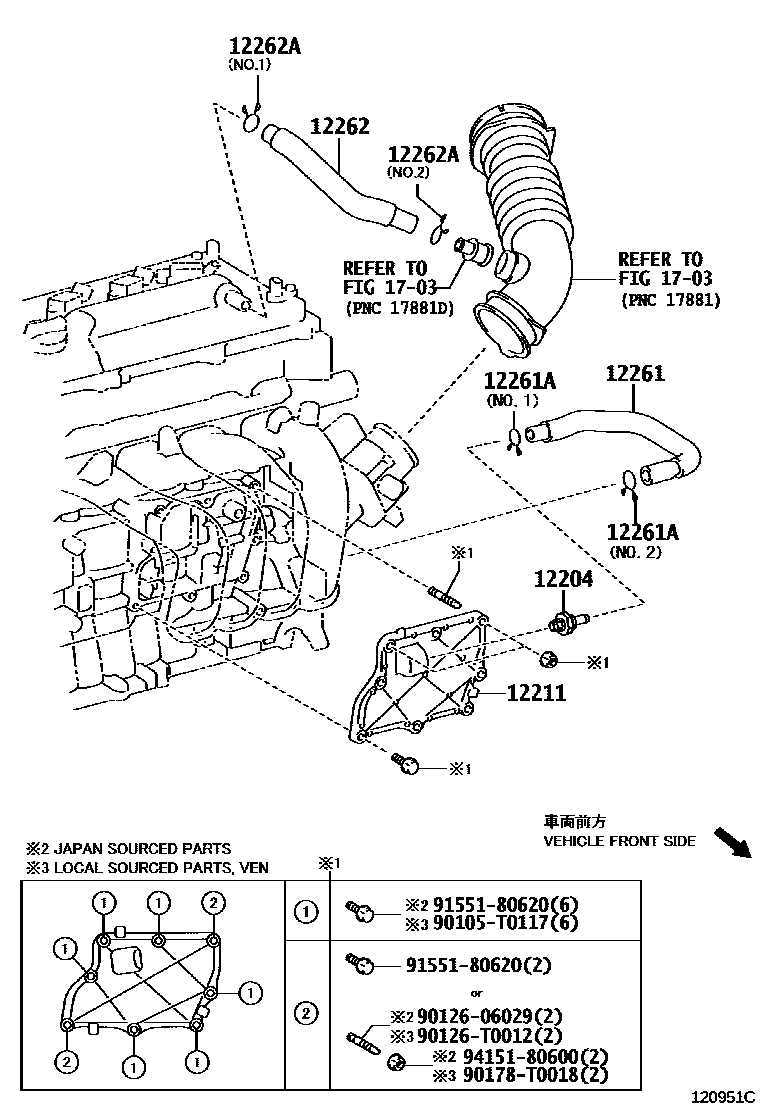

Toyota COROLLA Ventilation Hose EPC diagram — 120951C
Ventilation Hose — 120951C (201403 – 999999)

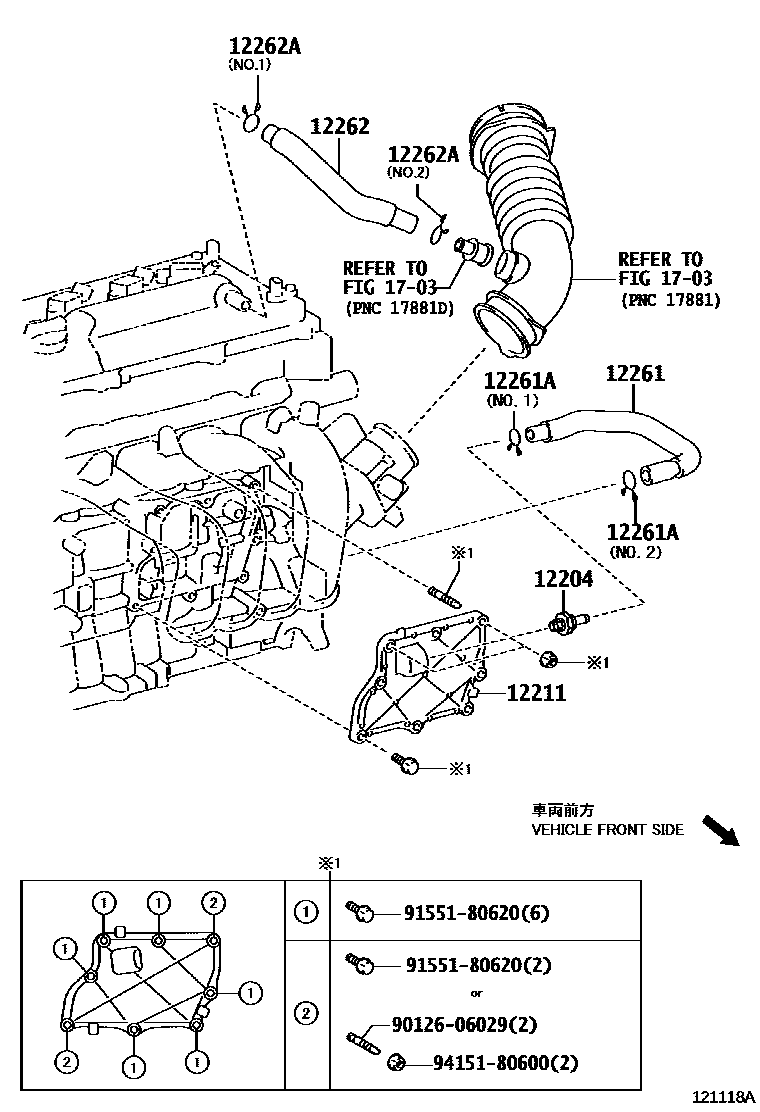

Toyota COROLLA Ventilation Hose EPC diagram — 121118A
Ventilation Hose — 121118A (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010 · 12204-37030 · 12204-37040
12211Ventilation box No. 112211-0T040 · 12211-37010
12261Ventilation Hose12261-0T060 · 12261-37050 · 12261-37080
12261AClip or clip (for vent hose)90466-T0032 · 90467-15120 · 90467-23002
12262Ventilation hose No. 212262-0T050 · 12262-37030 · 12262-37080
12262AClamp (for vent hose No. 2)90466-T0027 · 90467-21004
