Toyota COROLLA Engine Mounting — Figure 1107

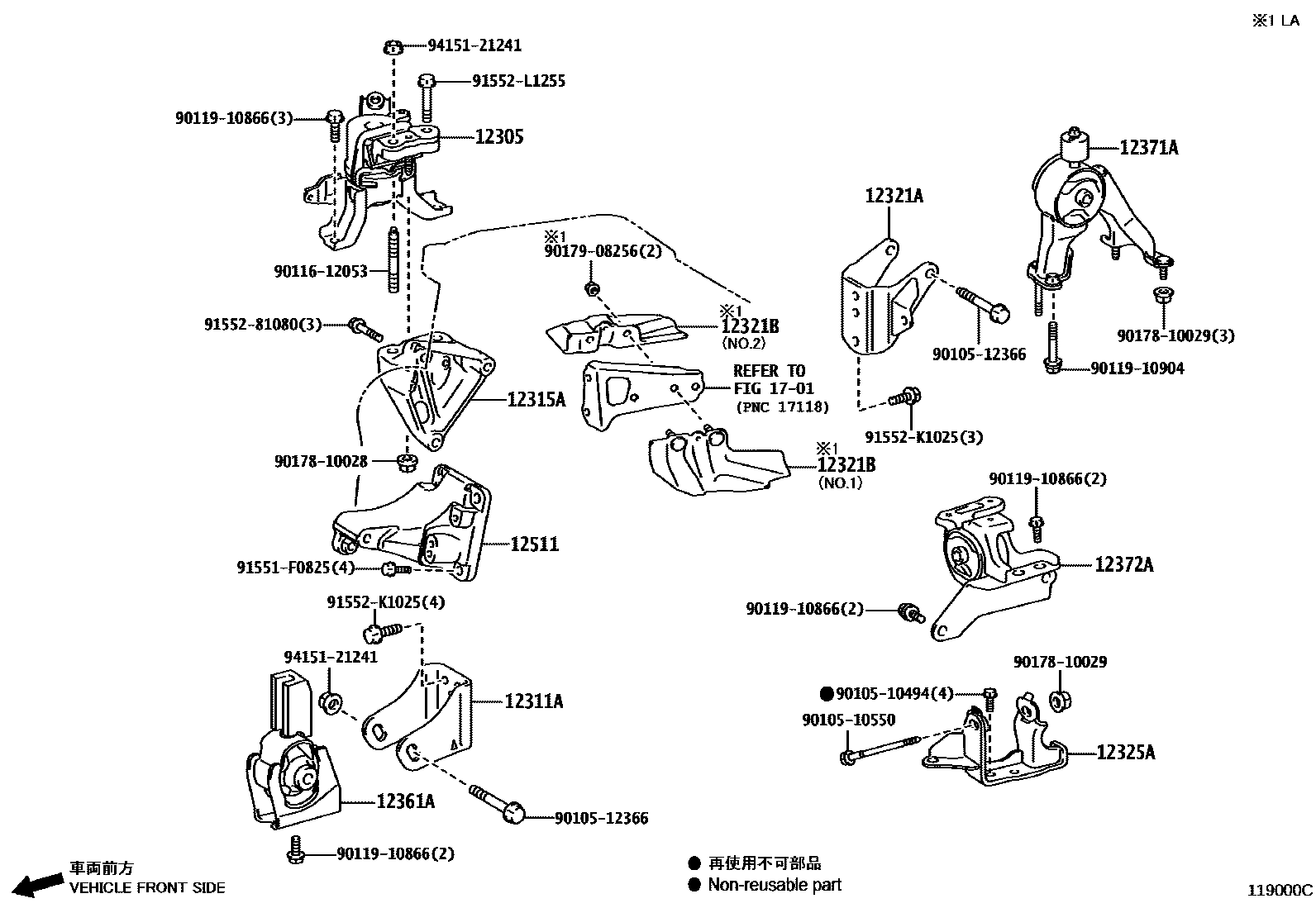

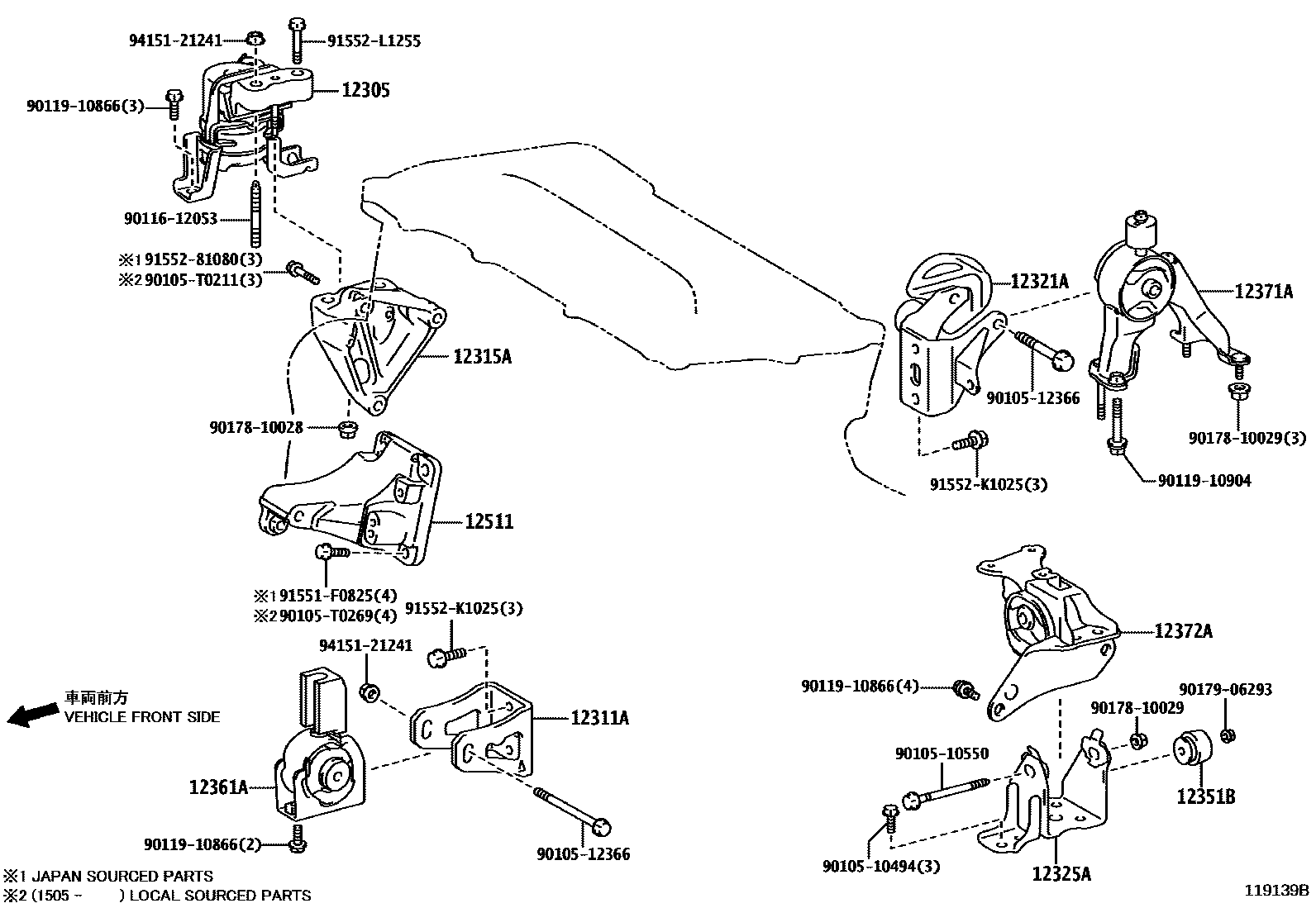

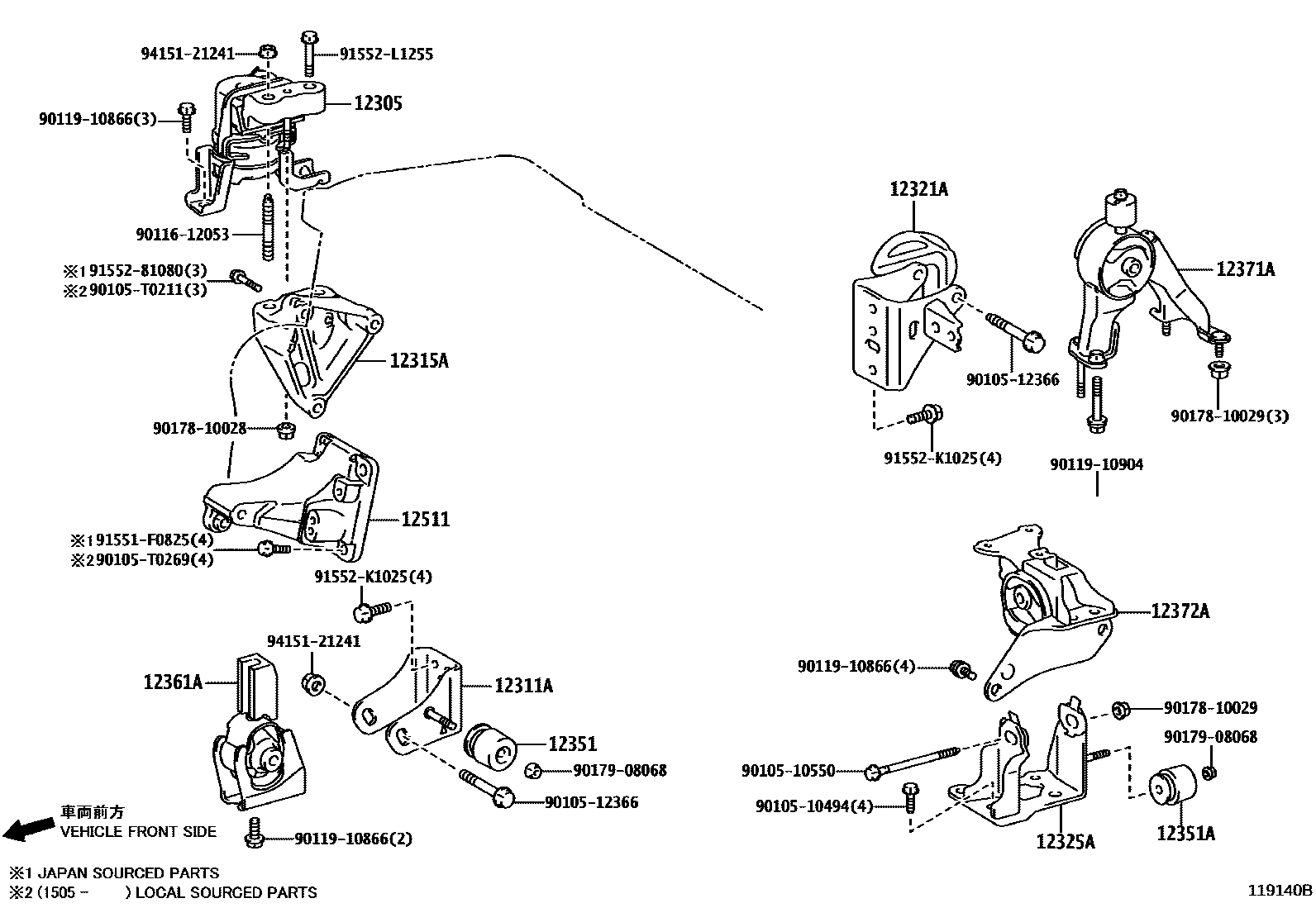

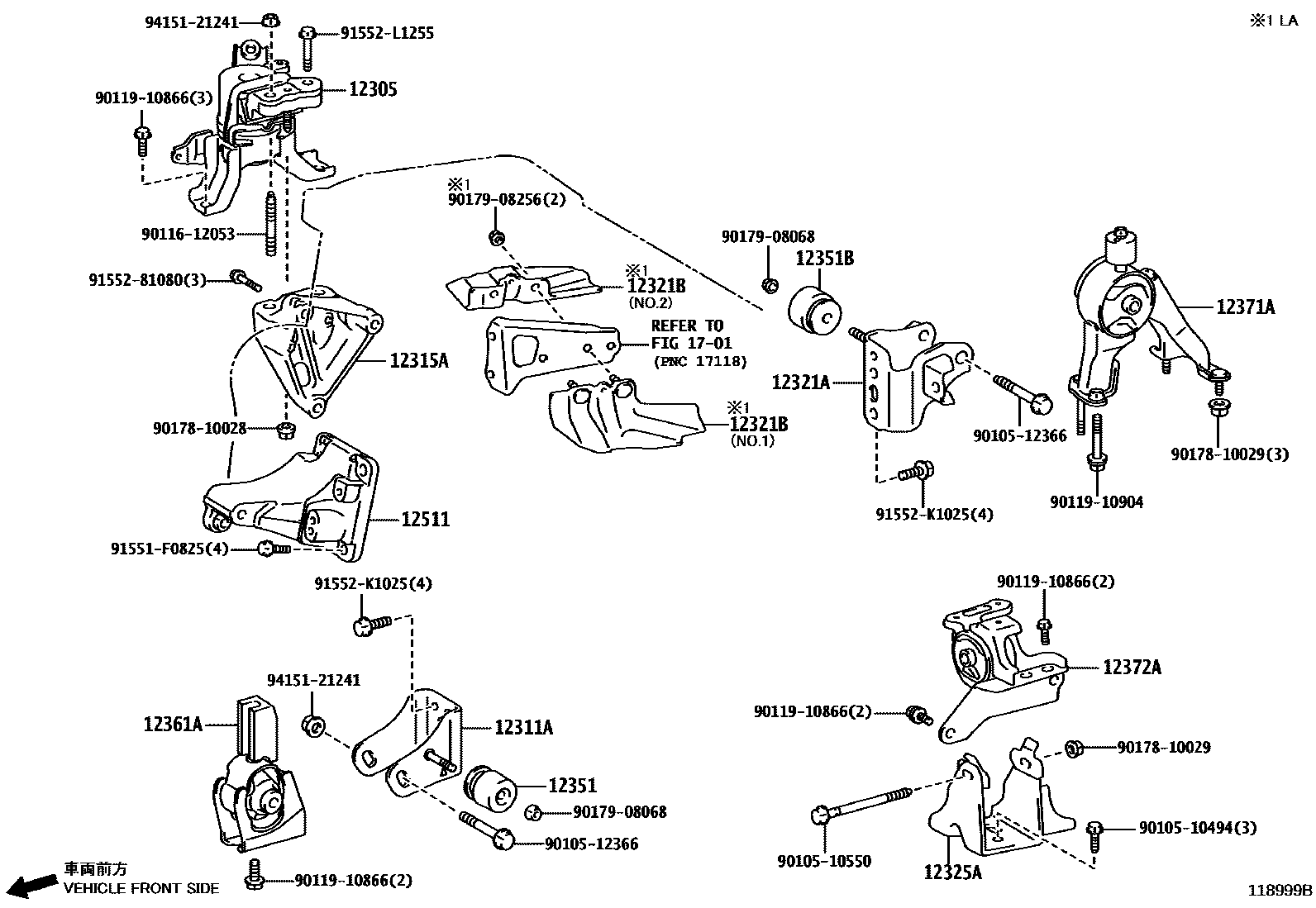

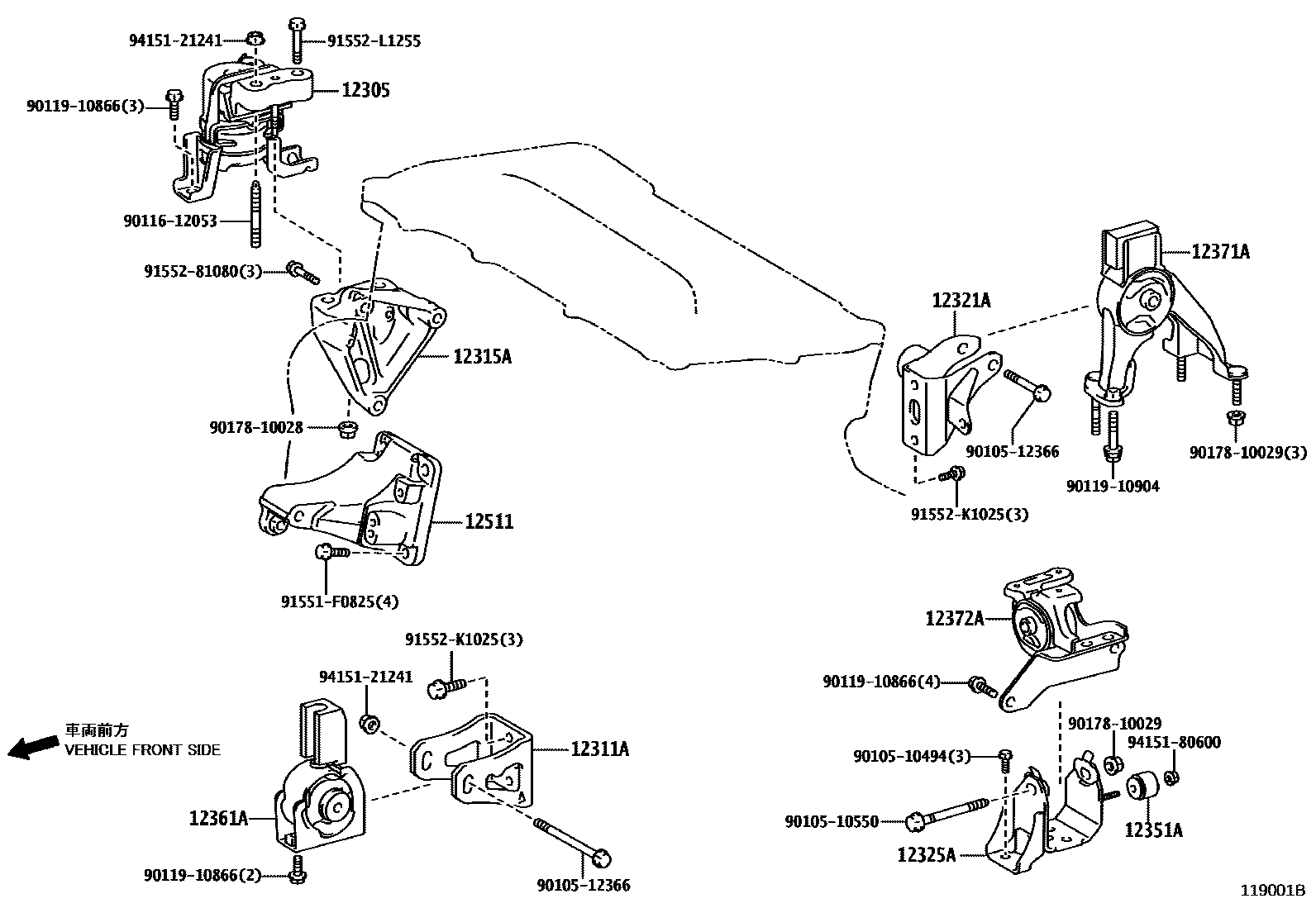

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T200 · 12305-0T220 · 12305-0T230 · 12305-37081 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0T150 · 12311-0T270 · 12311-0T430 · 12311-0T450 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0T030 · 12315-0T050 · 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0T180 · 12321-0T310 · 12321-0T480 · 12321-0T500 · 12321-0T510 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T180 · 12325-0T310 · 12325-0T400 · 12325-0T420 · 12325-0T430 |
| 12351 | engine mount shock absorber | 12351-0T240 · 12351-26010 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-0T260 · 12351-37040 |
| 12351B | engine mount shock absorber | 12351-37120 · 12351-74140 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0T092 · 12361-0T093 · 12361-0T260 · 12361-0T270 · 12361-0T280 · 12361-0T290 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0T100 · 12371-0T110 · 12371-0T260 · 12371-0T270 · 12371-0T350 · 12371-0T390 · 12371-37030 · 12371-37110 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T201 · 12372-0T211 · 12372-0T380 · 12372-0T400 · 12372-0T440 · 12372-0T450 · 12372-0T460 |
| 12511 | No. 1 generator bracket | 12511-0T050 · 12511-37010 |
